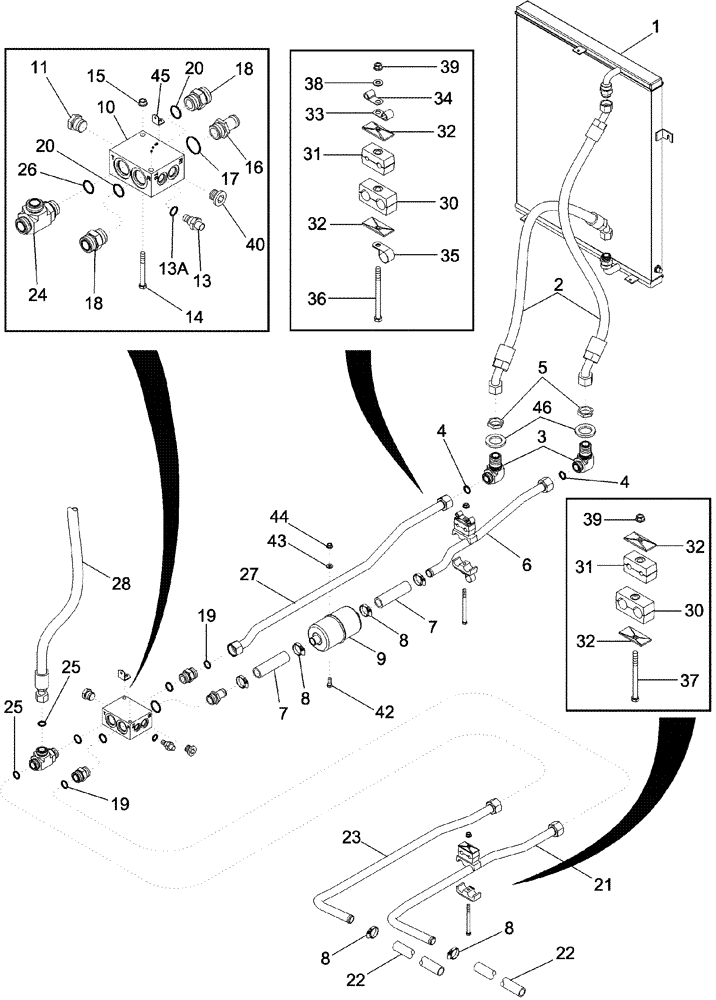

Запчасти Case IH 620 (06-01) - OIL COOLER - HYDRAULIC COOLER BYPASS (03) - POWER TRAIN

1

87326739

COOLER, OIL

1шт.

See Figure 06-02

1шт.

2

447229A1

HOSE

1575 mm (62 in)

2шт.

3

201-364

ELBOW,90 Degree Elbow, 1-11/16" - 12 Male ORFS x 1-11/16" - 12 Male ORFS

Inc. 4

2шт.

4

238-6025

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1шт.

5

201-922

BHD LOCK NUT,Blkhd, 1 11/16-12

2шт.

6

444734A1

TUBE

Inlet

1шт.

7

410047A1

HOSE

130 mm (5 in), Cut From 1541952C1

1шт.

7a

87436551

HYDRAULIC HOSE,25.40 mm ID x 180.00 mm

Cut from 1541952C1

1шт.

8

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

6шт.

9

123488A1

FILTER SCREEN

1шт.

10

317980A1

VALVE

Cooler By-Pass, Inc. 11, 12

1шт.

11

431867A1

VALVE, CHECK

1шт.

12

431868A1

SEAL KIT

(Not Shown)

1шт.

13

177678A1

TEMPERATURE SWITCH

Hydraulic Oil Temperature, Inc. 13A

1шт.

13a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

14

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

15

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

16

217-179

FITTING,1" Hose Barb x 1-5/16" - 12 Male ORB

Inc. 17

1шт.

17

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

18

201-105

HYD CONNECTOR,1-7/16" - 12 Male ORFS x 1-5/16" - 12 Male ORB

Inc. 19, 20

1шт.

19

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

20

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

21

405008A1

TUBE

Cooler By-Pass Valve, Inlet

1шт.

22

408846A1

HOSE

300 mm (13 in), Cut From 1541952C1

1шт.

23

405009A1

TUBE

Cooler By-Pass Valve, Outlet

1шт.

24

201-407

TEE,1 7/16"-12 x 1 5/16"-12 Run, ORFS

Inc. 25, 26

1шт.

25

238-6021

O-RING,15/16 X 1 - 1/16, Cl 6

1шт.

26

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

27

444733A1

HYD TUBE

Outlet

1шт.

28

407820A1

HOSE

572 mm (22-1/2 in)

1шт.

30

1546028C1

CLAMP,25.4mm ID x 82mm L

1 in ID

2шт.

31

410573A1

CLAMP

2 Piece

2шт.

32

1347127C1

PLATE

2шт.

33

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

34

516-2395

CLAMP,J, 7/16" Insul, 3/8" Bolt

1шт.

35

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

1шт.

36

413-580

BOLT,Hex, 5/16" - 18 x 5", Gr 5

1шт.

37

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

1шт.

38

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

39

425-286

FLANGE NUT,Flg, 3/8"-16, G5

2шт.

40

86625138

PLUG,7/18" - 14

1шт.

42

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

43

495-11034

WASHER,5/16", SAE

3шт.

44

425-285

FLANGE NUT,Flg, 5/16"-18, G5

4шт.

45

445265A1

BRACKET

1шт.

46

495-81093

WASHER,45.24mm ID x 63.5mm OD x 3.4mm Thk

2шт.

47

127983A1

HYDRAULIC HOSE,25.40 mm ID x 430.00 mm

Cut from 1541952C1

1шт.
