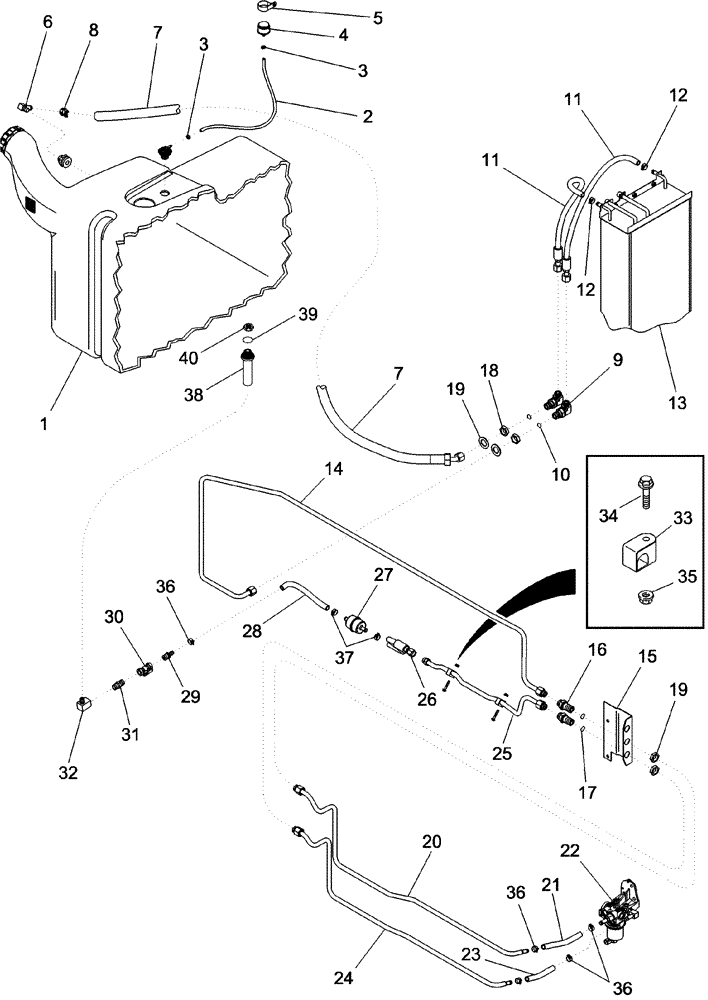

Запчасти Case IH 620 (03-07) - FUEL LINES (02) - FUEL SYSTEM

1

316885A3

TANK

Fuel, 200 gallon

1шт.

See Figure 03-01

1шт.

2

433745A1

FUEL HOSE,680.00 mm, SAE J844C

Cut From 74813C2

1шт.

3

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

2шт.

4

86999949

FUEL FILTER

1шт.

5

515-23412

CLAMP,1 5/8", Insul, 3/8" Bolt

1шт.

6

217-332

FITTING,90 Degree Elbow, 5/8" Hose Barb x 3/8" Male NPTF

1шт.

7

399795A1

HOSE

651 mm (25-5/8 in)

1шт.

8

1954736C1

HOSE CLAMP,#24

1шт.

9

201-346

ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 1" - 14 Male ORFS

Inc. 10

2шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

11

399796A1

HOSE

633 mm (24-15/16 in)

2шт.

12

214-1408

HOSE CLAMP,11.2mm - 19.8mm

2шт.

13

321103A2

CONDENSER

Fuel

1шт.

14

388101A2

TUBE

1шт.

15

406285A1

SUPPORT

1шт.

16

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

Inc. 17

2шт.

17

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

18

201-919

BHD LOCK NUT,1" - 14

2шт.

19

495-11106

WASHER,1", SAE

2шт.

20

389611A2

FUEL TUBE

1шт.

21

399799A1

HOSE

204 mm (8 in), Fuel Return

1шт.

22

J949093

FEED PUMP

Fuel Transfer

1шт.

See Figure 03-04

1шт.

23

399798A1

HOSE

145 mm (5-45/64 in)

1шт.

24

389612A2

FUEL TUBE

1шт.

25

388099A2

TUBE

1шт.

26

399800A2

HOSE

450 mm (17-23/32 in), Supply

1шт.

27

194199A1

FUEL FILTER

1шт.

28

408556A1

HOSE

258 mm (10-532 in)

1шт.

29

217-170

FITTING,1/2" Hose Barb x 1/2" Male NPTF

1шт.

30

1345205C1

SHUT-OFF VALVE

1шт.

31

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

1шт.

32

87268286

ELBOW

1шт.

33

183822C1

CLAMP

5/8 in

2шт.

34

409-7424

BOLT,Hex Flg, 1/4" - 20 x 1 1/2", Spcl

2шт.

35

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

36

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

5шт.

37

BN76084

HOSE CLAMP

2шт.

38

87565153

FITTING

Fuel Tank Standpipe Screen

1шт.

39

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

40

282709A1

NUT

1шт.

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

(Not Shown)

1шт.

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

(Not Shown)

1шт.

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

(Not Shown)

1шт.

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

(Not Shown)

1шт.

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP (Not Shown)

4шт.
