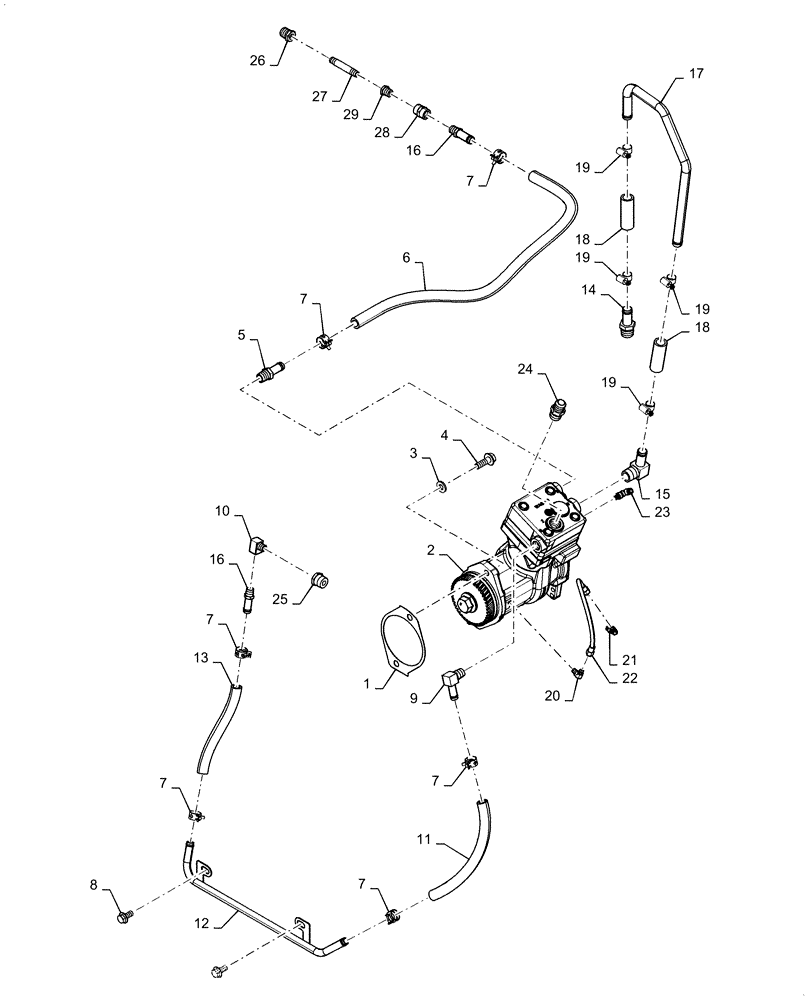

Запчасти Case IH 620 (02-25) - AIR COMPRESSOR, ASSY (01) - ENGINE

1

J940245

GASKET,1.27mm Thk

1шт.

2

87543702

AIR COMPRESSOR,Assembly

1шт.

3

86624188

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

2шт.

4

844-12035

BOLT,Hvy Hex, M12 x 35mm, Cl 8.8

2шт.

5

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

1шт.

6

1958774C1

HEATER HOSE

Supply, Hi-Temp

1шт.

7

1954736C1

HOSE CLAMP,#24

6шт.

8

844-12025

BOLT,Hvy Hex, M12 x 25mm, Cl 8.8

2шт.

9

217-134

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 1/2" Male NPTF

1шт.

10

217-22

ELBOW,90 Degree, 3/8"-18 NPTF, Fem x 3/8"-18 NPTF Male

1шт.

11

1958775C1

LINING

Return, Hi-Temp, Heater

1шт.

12

47702146

TUBE

Air Compressor

1шт.

13

1975734C1

HEATER HOSE,15.50 mm ID x 250.00 mm

Supply, Hi-Temp, Heater

1шт.

14

217-155

FITTING,3/4" Hose Barb x 3/4" Male NPTF

1шт.

15

217-135

ELBOW,90 Degree Elbow, 3/4" Hose Barb x 3/4" Male NPTF

1шт.

16

217-376

FITTING,5/8" Hose Barb x 3/8" Male NPTF

2шт.

17

87546323

HYD TUBE,19.05 mm OD x 323, 168 mm L

Air Admission, Air Compressor

1шт.

18

87546324

HOSE,19.05 mm ID x 75.00 mm, SAE J20R3

Intake Air

2шт.

19

87016721

HOSE CLAMP,17.5mm - 31.7mm

4шт.

20

86512947

90 ELBOW,90 Degree, 7/16"-20, 37 Degree x 1/8"-27, NPTF

1шт.

21

J945212

ELBOW

1шт.

22

87543681

HOSE ASSY.

Lubrication

1шт.

23

825500

HYD CONNECTOR

1шт.

24

86977779

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 14 NPT

1шт.

25

217-46

REDUCER,3/4" - 14 NPTF x 3/8" - 18 Fem NPTF

1шт.

26

217-43

REDUCER,1/2" - 14 NPTF x 1/4" - 18 Fem NPTF

1шт.

27

87266873

NIPPLE

1шт.

28

217-1102

HYD CONNECTOR,3/8" - 18 NPT x 3/8" - 18 NPT

1шт.

29

217-42

REDUCER,3/8" - 18 NPT x 1/4" - 18 NPT

1шт.
