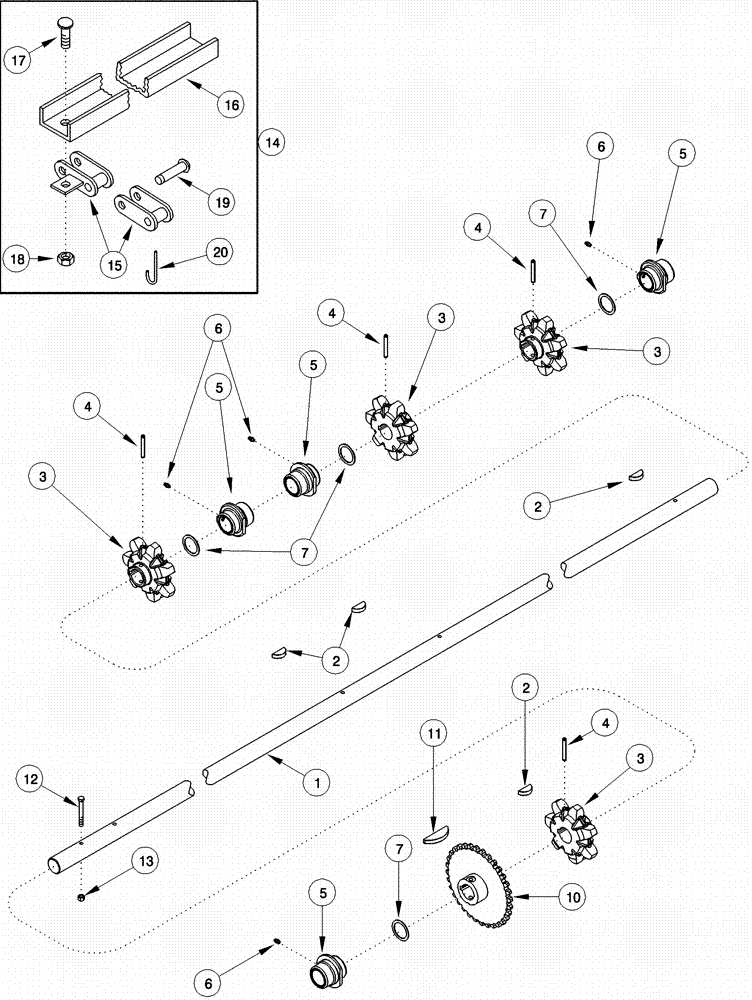

Запчасти Case IH 620 (09D-18) - BASKET DOOR - CONVEYOR DRIVE (16) - BASKET

1

449406A1

SHAFT

Conveyor Drive

1шт.

2

126-140

WOODRUFF KEY,#G, 3/8" x 1 1/2", HT

4шт.

3

247542A1

SPROCKET ASSY.

7T

4шт.

4

38-12036

LOCK PIN,5/16" x 2 1/4", Slotted

4шт.

5

404101A1

BEARING ASSY,38.227 mm ID

Inc. 6

4шт.

6

219-87

LUBE NIPPLE,1/4" - 28 NPTF

4шт.

7

495-81221

WASHER,1.53" ID x 2" OD x 0.06" Thk

7шт.

10

440046A1

SPROCKET ASSY.

32T

1шт.

11

126-180

WOODRUFF KEY,#30, 3/8" x 3 1/2", HT

1шт.

12

326-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 8

1шт.

13

231-1445

NUT,5/16"-18, GB

1шт.

14

NSS

NOT SOLD SEPARAT

CHAIN ASSEMBLY, Inc. 15 - 18, Order Components

4шт.

15

140154A1

CHAIN,88 Links x 58.75mm = 5170mm

88 Links; No. D667H, Basket Conveyor, Inc. 15A, 15B, 15C

2шт.

15a

NSS

NOT SOLD SEPARAT

LINK, Plain

76шт.

15b

821017C2

LINK,Chain

Tear Drop

4шт.

15c

821016C1

LINK,Chain

Attaching

1шт.

16

248059A1

SLAT

11шт.

17

434-516

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1", Gr 5

22шт.

18

231-1435

LOCK NUT,5/16"-18, GB

22шт.

19

821369C1

PIN,7.79mm OD x 47.93mm L

Coupler D667H Chain

12шт.

20

1329837C2

PIN,2.63mm OD

12шт.
