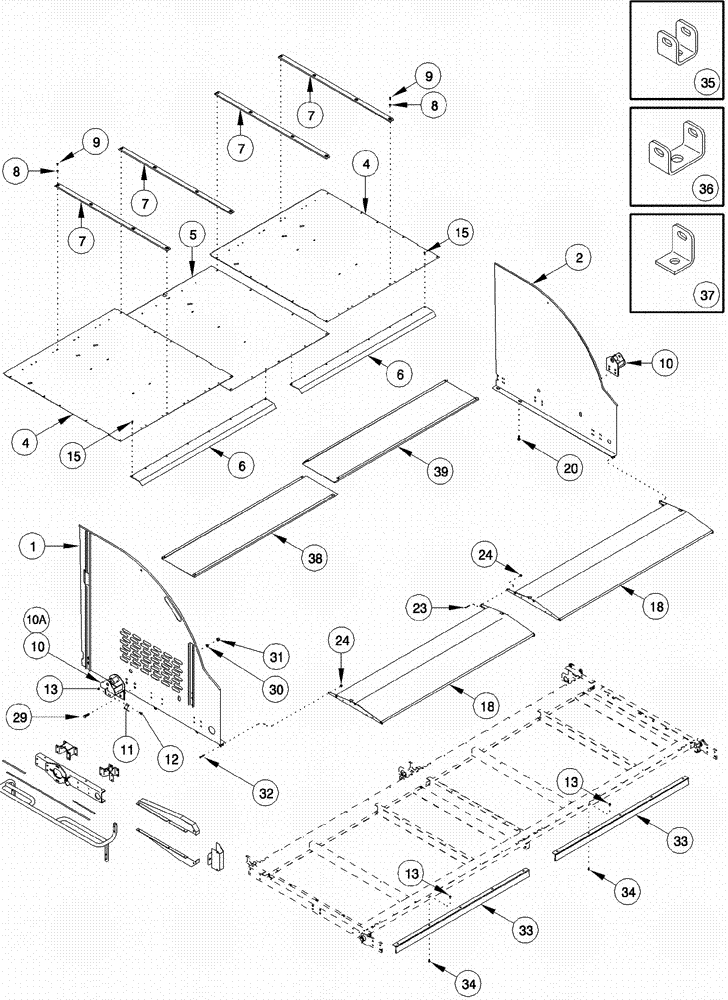

Запчасти Case IH 620 (09D-16) - BASKET DOOR, COVERS AND SHIELDS (16) - BASKET

1

449783A2

SHIELD

Basket Door Side, Front

1шт.

See Figure 09D-17

1шт.

2

279538A3

GUARD

Basket Door Side, Rear

1шт.

4

86990567

SHEET ASSY.

Basket Door Front and Rear

2шт.

4

84494403

SHEET

Basket Door Front and Rear, Start Year: 04-JAN-12

2шт.

5

87435236

SHEET ASSY.

Basket Door Center

1шт.

5

84494402

SHEET

Basket Door Center, Start Year: 04-JAN-12

1шт.

6

238061A2

SHIELD

Chain

2шт.

7

300225A1

SLIDE

Basket Floor, Slat

4шт.

8

495-81107

WASHER,.281" x 7/8" x .060"

16шт.

9

375677A1

RIVET

12шт.

9a

413-420

BOLT,Hex, 1/4" - 20 x 1-1/4", Gr 5

4шт.

9b

231-1444

NUT,1/4"-20, GB

4шт.

10

257599A3

BRACKET

Cylinder, Lower

2шт.

11

431796A1

BRACKET

Line Support

1шт.

12

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

13

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

22шт.

15

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

39шт.

18

315745A2

EXTENSION

Included in Kit 87433035

2шт.

20

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

23

413-440

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

Included in Kit 87433035

2шт.

24

230-4244

LOCK NUT,1/4"-20, GA

Included in Kit 87433035

6шт.

27

492-11038

LOCK WASHER,3/8"

26шт.

28

425-106

NUT,3/8"-16, Cl 5

26шт.

29

426-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

8шт.

30

492-11062

BEARING WASHER,5/8"

8шт.

31

429-1010

NUT,5/8"-11, G8

8шт.

32

413-424

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Included in KIt 87433035

4шт.

33

444263A1

BRUSH, COMMUTATOR

Door Strut

2шт.

34

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

10шт.

35

315737A2

CHANNEL

Door Extension, Included in Kit 87433035

4шт.

36

315738A2

CHANNEL

Door Extension, Included in Kit 87433035

2шт.

37

315740A2

ANGLE

Door Extension, Included in Kit 87433035

2шт.

38

87459122

DOOR PANEL

Basket, Front, Decal Mount

1шт.

39

87459123

DOOR PANEL

Basket, Rear, Decal Mount

1шт.
