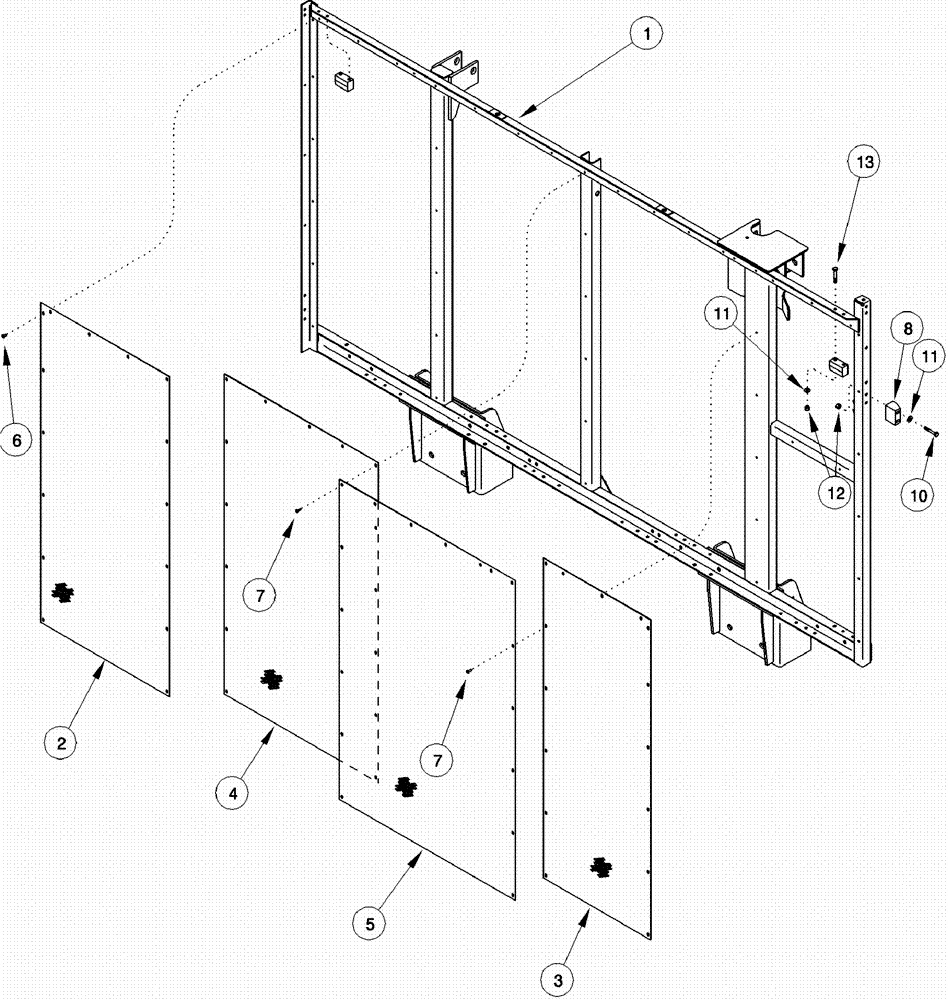

Запчасти Case IH 620 (09D-11) - BASKET, REAR WALL (16) - BASKET

1

292043A4

WALL

Rear, Welded

1шт.

2

87459609

SHEET

Right Hand Rear

1шт.

2

84494239

SHEET

Right Hand Rear, Start Year: 04-JAN-12

1шт.

3

298711A3

SHEET

Left Hand Rear

1шт.

4

86990564

SHEET

Right Hand Center Rear

1шт.

4

84494238

SHEET

Right Hand Center Rear, Start Year: 04-JAN-12

1шт.

5

86990563

SHEET

Left Hand Center Rear

1шт.

5

84494258

SHEET

Left Hand Center Rear, Start Year: 04-JAN-12

1шт.

6

375676A1

RIVET,Pop, 6.42mm OD x 24.64mm L

1/4 x 3/8

27шт.

7

375677A1

RIVET

1/4 x 3/8

15шт.

7a

495-81107

WASHER,.281" x 7/8" x .060"

Used with 7, (Not Shown)

15шт.

8

328227A1

GUIDE

Basket Door, Upper Inner

1шт.

9

222680A2

GUIDE

Basket Door, Upper Corner

2шт.

10

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

11

495-21044

WASHER,3/8"

6шт.

12

231-1446

NUT,3/8" - 16, Gr 5

6шт.

13

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.
