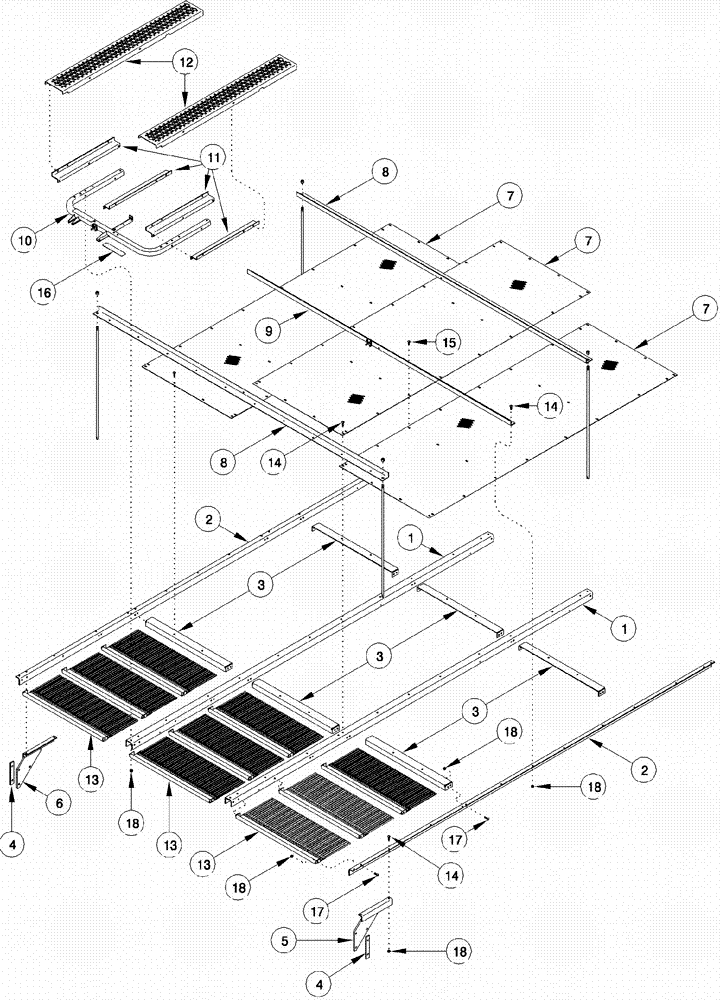

Запчасти Case IH 620 (09D-06) - LID, BASKET - TOP (16) - BASKET

1

248858A2

CHANNEL

Basket Grate Support

2шт.

2

248851A2

ANGLE

Basket Grate Support

2шт.

3

231111A2

ANGLE BAR

6шт.

4

197055A1

BAR

Basket Cylinder Mount

2шт.

5

228248A3

ANGLE

Basket Cylilnder Mount, Left Hand

1шт.

6

239472A2

ANGLE

Basket Cylinder Mount, Right Hand

1шт.

7

435709A2

SHEET

Basket Lid Top

3шт.

7

84494348

SHEET

Basket Lid Top, Start Year: 04-JAN-12

3шт.

8

280398A2

ANGLE

Front and Rear Tie

2шт.

9

362663A2

SUPPORT

Lid Handrail

1шт.

10

362664A4

TUBE,820.1 mm Length

Handrail

1шт.

11

220672A2

ANGLE

Basket Deck Walkway

4шт.

12

87343265

STEP

Basket Lid

2шт.

13

325244A1

DEFLECTOR

Basket Cover

9шт.

14

477-73820

SERRATED SCREW,Truss HD, 3/8" - 16 x 1-1/4"

1шт.

15

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

1шт.

16

D55216

PAD,2" x 9"

2шт.

17

477-73816

SERRATED SCREW,Sl Truss Hd, 3/8" x 1"

1шт.

18

231-5146

FLANGE NUT,3/8"-16

1шт.
