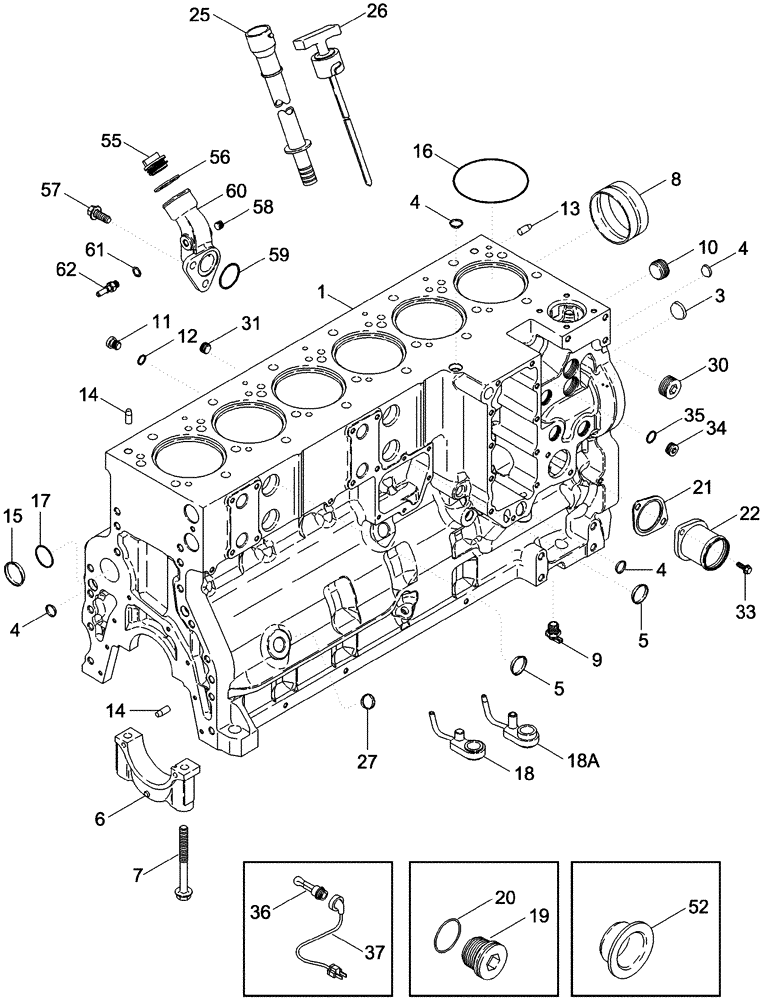

Запчасти Case IH 620 (02-11) - CYLINDER BLOCK - ENGINE BLOCK HEATERS (01) - ENGINE

87603080

BASIC ENGINE

Service, Tier 3

1шт.

Note: Basic engines and remanufactured engines are generic engines, all parts are not supplied with engines. Check the configuration of the one removed, with the configuration of the engine being installed; For any components not supplied with the engine beinstalled reuse from the engine that has just been removed. Do not return the old engine, until the unit is reassembled.

1шт.

Note: Less, Starter, Alternator, Fan, Fan Belt,k Air Cleaner, Muffler, Exhaust Manifold, Flywheel and Housing, Oil Fill and Dipstick, Fuel Injector and Lines, Front Pulley, Belt Tensioner, Turbocharger and Aftercooler.

1шт.

87603080R

REMAN-BASIC ENGINE

620, Tier 3

1шт.

87603080C

CORE-BASIC ENGINE

Return Number

1шт.

87544189

SHORT ENGINE

1шт.

87544189R

REMAN-SHORT ENGINE

620 CASE IH COTTON EXPRESS COTTON PICKER (9/06-)

1шт.

87544189C

CORE-SHORT ENGINE

Return Number

1шт.

1

84165305

CYLINDER BLOCK

Stripped, Inc. 1 - 8

1шт.

3

A77586

PLUG

28.9 mm

3шт.

4

A77506

PLUG

21 mm

4шт.

5

J905401

PLUG

35 mm

4шт.

6

87444056

BEARING CAP,159 mm OD x 34 mm

Main Bearing

7шт.

7

87444059

BOLT

M14 x 128

14шт.

8

J945329

CAMSHAFT BEARING,60.08mm ID x 64.13mm OD x 25mm L

7шт.

87338079

KIT

Inc. 9 - 20

1шт.

9

217-103

COCK, DRAIN

1/4 PT

1шт.

10

86625135

PLUG,1" - 11-1/2 NPT

1шт.

11

J678923

PLUG,M10 x 1

10 mm, Inc. 12

6шт.

12

637-72081

O-RING,1.6mm Thk x 8.1mm ID, Cl 7, 75 Duro

1шт.

13

J900257

PIN,10.01mm OD x 16mm L

16 mm

2шт.

14

J901846

PIN,12.01mm OD x 24mm L

4шт.

15

41-3044

PLUG,Exp, 2 3/4"

2шт.

16

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

6шт.

17

J926048

O-RING,0.07" Thk x 2.614" ID, -38, Cl 5, 75 Duro

1шт.

18

87739191

NOZZLE

6шт.

18a

87673839

NOZZLE

6шт.

19

J678921

PLUG

14 mm, Inc. 20

1шт.

20

J678912

O-RING,2.2mm Thk x 11.3mm ID

1шт.

21

J945603

GASKET,1.65mm Thk

Water Inlet

1шт.

22

J913030

FITTING

Water Inlet

1шт.

25

87340850

TUBE

1шт.

26

87357523

DIPSTICK

1шт.

27

A77530

PLUG

4шт.

30

263136

MAGNETIC PLUG,Sq. Soc, 3/4"-14 NPTF

PLUG, MAGNETIC

5шт.

31

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

6шт.

33

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

2шт.

34

313244A1

PLUG

22 mm, Inc. 35

2шт.

35

313246A1

O-RING,2.2mm Thk x 19.3mm ID

19 ID x 2.2 mm

1шт.

36

310493A1

KIT

Engine Block Heater, 120 Volt, Inc. 37

1шт.

37

196466A1

ELECTRIC CABLE

1829 mm (72 in)

1шт.

41

J900956

PLUG

(Not Shown)

3шт.

42

87338185

BOLT

(Not Shown)

1шт.

43

217-438

PLUG,Hex Soc, 1/2" - 14 NPTF

(Not Shown)

1шт.

44

87337018

BOLT

(Not Shown)

6шт.

47

J678921

PLUG

(Not Shown)

1шт.

49

A77586

PLUG

(Not Shown)

3шт.

50

J909025

FLANGE BOLT,Hex, M8 x 1.25 x 55mm, Cl 10.9

(Not Shown)

6шт.

51

J943670

FITTING

(Not Shown)

1шт.

52

J943808

PLUG

1шт.

55

J914136

CAP

Filler

1шт.

56

J936876

SEALING RING,30mm ID x 48mm OD x 2.8mm Thk

1шт.

57

854-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 10.9

2шт.

58

217-432

PLUG,Hex Soc, 1/4" - 18 NPTF

1шт.

59

J906696

SEAL,41mm ID x 43mm OD x 2.5mm H

1шт.

60

87341096

HYD CONNECTOR

1шт.

61

87341228

O-RING,8.9154mm ID x 1.8288mm Width

1шт.

62

87341100

ADAPTER

1шт.
