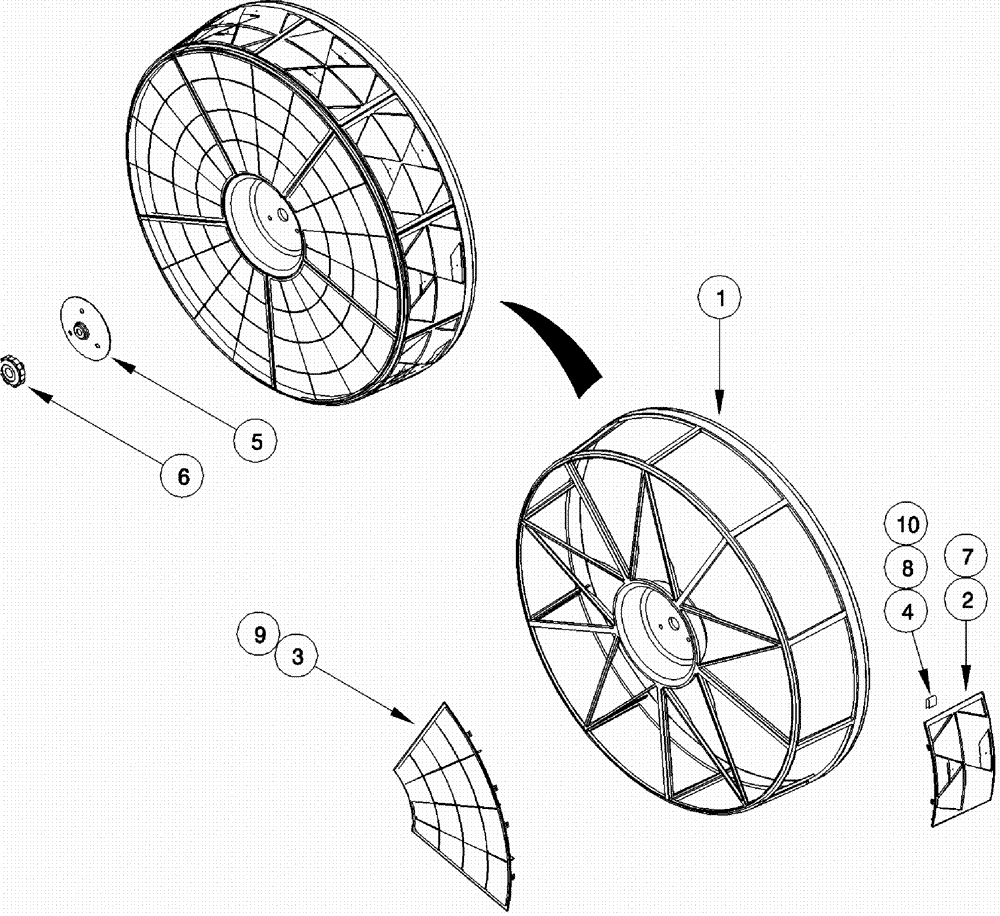

Запчасти Case IH 620 (09C-26) - ROTARY AIR SCREEN ASSEMBLIES (FINE AND COARSE MESH) (15) - HANDLING SYSTEM

87409301

SCREEN

Fine Mesh, Rotary Air Screen, Inc. 1 - 4

1шт.

1

87410086

SUPPORT

Rotary Air Screen

1шт.

1a

87302735

REPAIR KIT

Inc. Wear Strip, Hardware and Instructions, (Not Shown)

1шт.

2

NSS

NOT SOLD SEPARAT

SCREEN, Side, Order 86988943

10шт.

3

NSS

NOT SOLD SEPARAT

SCREEN, Rear, Order 86988644

5шт.

4

86983638

CLIP

145шт.

5

141509C1

CAP

1шт.

6

409512A1

KNOB

Rotary Air Screen

1шт.

86988943

KIT

Screen, Fine Mesh, Outer, Inc. 7, 8 Plus Instructions

1шт.

7

NSS

NOT SOLD SEPARAT

SCREEN, Side, Fine Mesh

1шт.

8

86983638

CLIP

10шт.

87301194

KIT

Screen, Rear, Fine Mesh, Inc. 9, 10, Plus Instructions

1шт.

9

NSS

NOT SOLD SEPARAT

SCREEN, Rear, Fine Mesh

1шт.

10

86983638

CLIP

10шт.

87409302

SCREEN

Coarse Mesh, Rotary Air Screen, Inc. 1 - 4

1шт.

1

87410086

SUPPORT

Rotary Air Screen

1шт.

1a

87302735

REPAIR KIT

Inc. Wear Strip, Hardware and Insctructions, (Not Shown)

1шт.

2

NSS

NOT SOLD SEPARAT

SCREEN, Side, Order 86988941

10шт.

3

NSS

NOT SOLD SEPARAT

SCREEN, Rear, Order 86988942

5шт.

4

86983638

CLIP

145шт.

5

141509C1

CAP

1шт.

6

409512A1

KNOB

Rotary Air Screen

1шт.

86988941

KIT

Screen, Coarse Mesh, Outer, Inc. 7, 8 Plus Instructions

1шт.

7

NSS

NOT SOLD SEPARAT

SCREEN, Side, Coarse Mesh

1шт.

8

86983638

CLIP

10шт.

87301195

KIT

Screen, Coarse Mesh, Rear, Inc. 9, 10 Plus Instructions

1шт.

9

NSS

NOT SOLD SEPARAT

SCREEN, Rear, Coarse Mesh

1шт.

10

86983638

CLIP

10шт.
