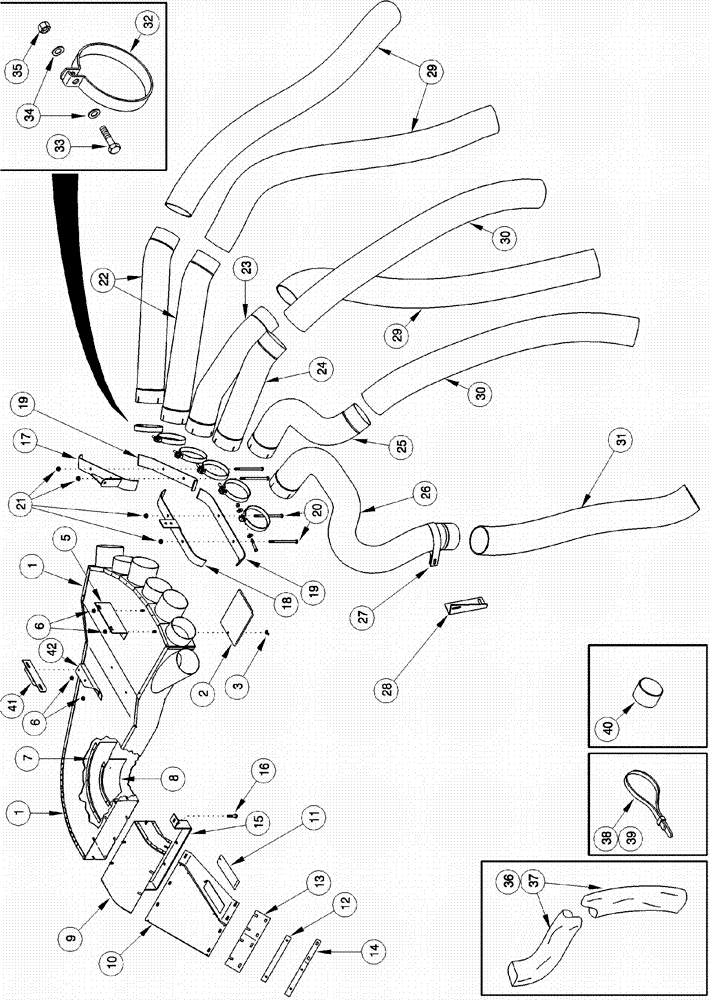

Запчасти Case IH 620 (09C-24) - AIR DUCTS AND HOSES - LEFT SIDE (15) - HANDLING SYSTEM

1

198928A4

DUCT

Left Hand

1шт.

2

412352A1

COVER

Duct Access

2шт.

3

129-409

WING NUT,1/4"-20

4шт.

4

1990442C1

ANGLE

2шт.

5

1988854C2

ANGLE

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

7

247785A1

DEFLECTOR

Outer

1шт.

8

247784A1

DEFLECTOR

Inner

1шт.

9

1270166C1

DUCT

1шт.

10

392347A3

CHANNEL

Air

1шт.

11

1270220C1

COVER

Access

2шт.

12

375338A2

STRAP

Isolator

5шт.

13

357558A2

AIR DUCT

Rear

1шт.

14

375371A2

STRAP

Baffle

1шт.

15

375240A2

SUPPORT

Left Hand

1шт.

16

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

17

411241A3

STRAP

1шт.

18

326512A1

STRAP

Upper

2шт.

19

326511A1

STRAP

2шт.

20

413-696

BOLT,Hex, 3/8" - 16 x 6", Gr 5

4шт.

21

231-1446

NUT,3/8" - 16, Gr 5

4шт.

22

248330A1

TUBE,124.6 mm OD, 792 mm Length

No. 1 Rear, No.1 Front, 6 Row Wide

2шт.

Not Used on 4 Row Wide Configuration

1шт.

22

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 1 Rear, 6 Row Narrow

1шт.

Not Used on 4 Row Wide Configuration

1шт.

22

1988872C1

TUBE

No. 1 Front, 6 Row Narrow

1шт.

Not Used on 4 Row Wide Configuration

1шт.

23

1988871C1

TUBE,127.9 mm ID, 124.6 mm OD

No. 2 Rear, 6 Row Wide

1шт.

23

1988873C1

TUBE

No. 2 Rear, 6 Row Narrow

1шт.

24

1988872C1

TUBE

No. 2 Front, 6 Row Wide

1шт.

24

1988742C1

TUBE

No. 2 Front, 6 Row Narrow

1шт.

24

1988744C1

PIPE

No. 2 Front, 6 Row Narrow, Serial Range: Tube-Tube

1шт.

25

1988873C1

TUBE

No. 3 Rear, 6 Row Wide

1шт.

25

1988746C1

PIPE

No. 3 Rear, 6 Row Narrow

1шт.

26

1988742C1

TUBE

No. 3 Front, 6 Row Wide

1шт.

27

1546033C1

CLAMP,127mm ID, 10.3mm Bolt Hole, P Type

2шт.

28

112449A1

SUPPORT

1шт.

29

1984190C1

AIR HOSE

1651 mm (65 in), Cut From 345093A1, No. 6 Rear, No. 6 Front, No. 2 Front

3шт.

30

284528A1

HOSE,1320.80 mm

Cut from 345093A1, No. 2 Rear, No. 3 Rear

2шт.

31

112424A2

AIR HOSE,127.00 mm ID x 1371.60 mm

Cut from 345093A1, No. 3 Front

1шт.

32

650987C1

CLAMP

6шт.

33

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

34

495-21044

WASHER,3/8"

1шт.

35

231-4146

NUT,3/8"-16, GB

1шт.

36

284896A1

HOSE PROTECTION

1067 mm (42 in), No. 1 Rear, No. 1 Front, No. 3 Front, No. 3. Rear, 6 Row Wide; No. 1 Rear, No. 1 Front, 6 Row Narrow

1шт.

36

1984192C1

AIR HOSE

1041 mm (41 in), No.3 Rear, 6 Row Narrow

1шт.

37

284897A1

HOSE PROTECTION

1219 mm (48 in), No. 2 Front, No. 2 Rear, 6 Row Wide and Narrow

1шт.

37

284895A1

HOSE PROTECTION

661 mm (26 in), No. 3 Rear, 6 Row Narrow

1шт.

38

386170C1

CABLE TIE,.30" x 27 1/2"

CABLE STRAP

7шт.

39

1546052C1

STRAP

718 mm (28-1/4 in)

1шт.

40

175231A1

CAP

4-15/16 ID, Plenum Tube, Discharge

1-2шт.

1 Used on 6 Row Wide Machines; 2 Used on 6 Row Narrow Machines

1шт.

40

353-75

PLUG,Cap, 5.200" OD

2шт.

41

451374A1

ANGLE

Support, Left Hand Mid Upper

1шт.

42

451291A1

ANGLE

Support, Left Hand

1шт.

43

132150A1

SUPPORT

Left Hand, No. 2 Front, 6 Row Narrow, (Not Shown)

1шт.

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

(Not Shown)

1шт.

492-11031

LOCK WASHER,5/16"

(Not Shown)

1шт.

495-11034

WASHER,5/16", SAE

(Not Shown)

1шт.

425-105

NUT,5/16"-18, G5

(Not Shown)

1шт.

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

(Not Shown)

1шт.

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Not shown)

1шт.

231-1446

NUT,3/8" - 16, Gr 5

(Not shown)

1шт.

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

(Not Shown)

1шт.

231-5146

FLANGE NUT,3/8"-16

(Not Shown)

1шт.
