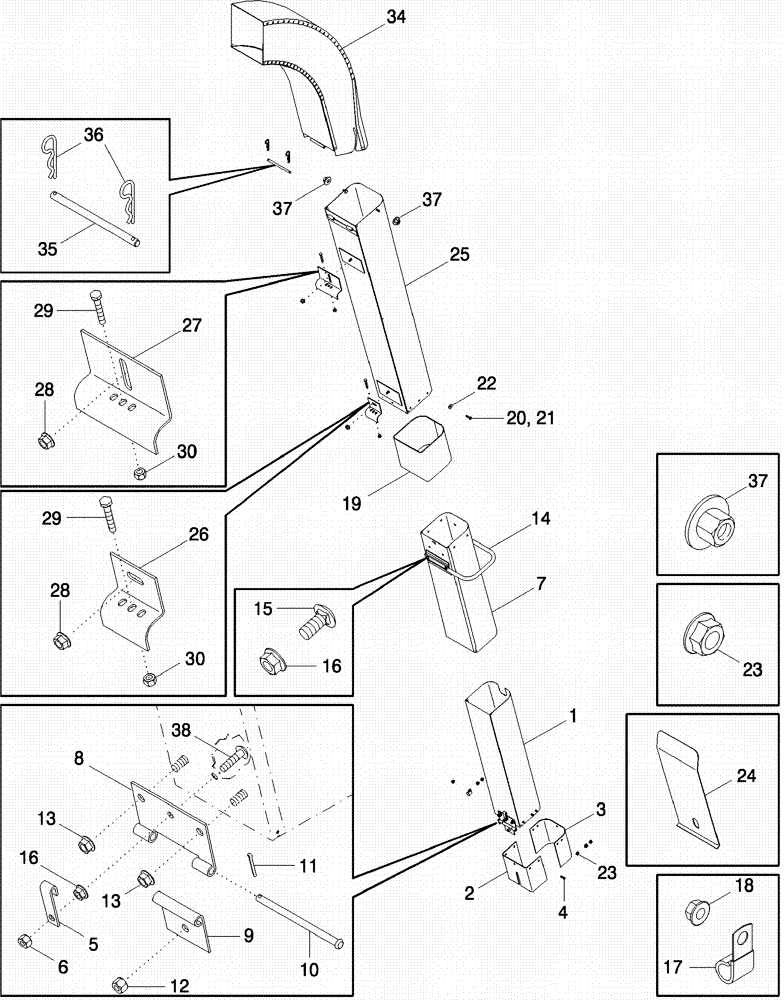

Запчасти Case IH 620 (09C-17) - CONVEYOR CHUTES - SINGLE OUTER, 6 ROW WIDE, NO. 3R, 4F (15) - HANDLING SYSTEM

1

1349803C1

CHUTE

Male, Lower, Outer, 3R, 4F

2шт.

2

131427A2

SHEET

Polyurethane

4шт.

3

131428A2

SHEET

Polyurethane

4шт.

4

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

2шт.

5

1984343C1

HOOK

Air Pipe

2шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

7

1984139C3

CHUTE

Female, Outer, 3R, 4F

2шт.

8

1349843C1

HINGE

Female

2шт.

9

1270014C1

HINGE

Male

2шт.

10

1349860C1

PIN,7.94mm OD x 129mm L

2шт.

11

432-816

COTTER PIN,1/8" x 1"

2шт.

12

231-4116

NUT,3/8"-16, GB

2шт.

13

231-5146

FLANGE NUT,3/8"-16

4шт.

14

123569A1

SUPPORT

Air Hose, Used on Machines With Dual Wheels

2шт.

15

434-512

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 3/4", Gr 5

4шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

18

231-4115

NUT,5/16"-18, GB

2шт.

19

131425A2

SHEET

Polyurethane, Single

2шт.

20

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

10шт.

21

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

4шт.

22

495-11034

WASHER,5/16", SAE

14шт.

23

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

24

320943A1

DEFLECTOR

2шт.

25

87430728

CHUTE

Single, Upper, No. 3, 4

2шт.

26

127589A1

CLAMP

Lower

2шт.

27

127588A1

CLAMP

Upper

2шт.

28

231-5146

FLANGE NUT,3/8"-16

4шт.

29

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

30

230-4114

NUT,1/4"-20, GA

4шт.

31

1983180C1

COVER

2шт.

32

86627130

WING NUT,1/4"-20

1/4

2шт.

34

242372A2

COWL

Hood Assembly, Outer, Single

2шт.

35

233320A2

PIN,7.94mm OD x 194.5mm L

2шт.

36

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

4шт.

37

360662A1

NUT

5/16 Special, Conveyor Pipe, Hood

4шт.

38

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

1шт.
