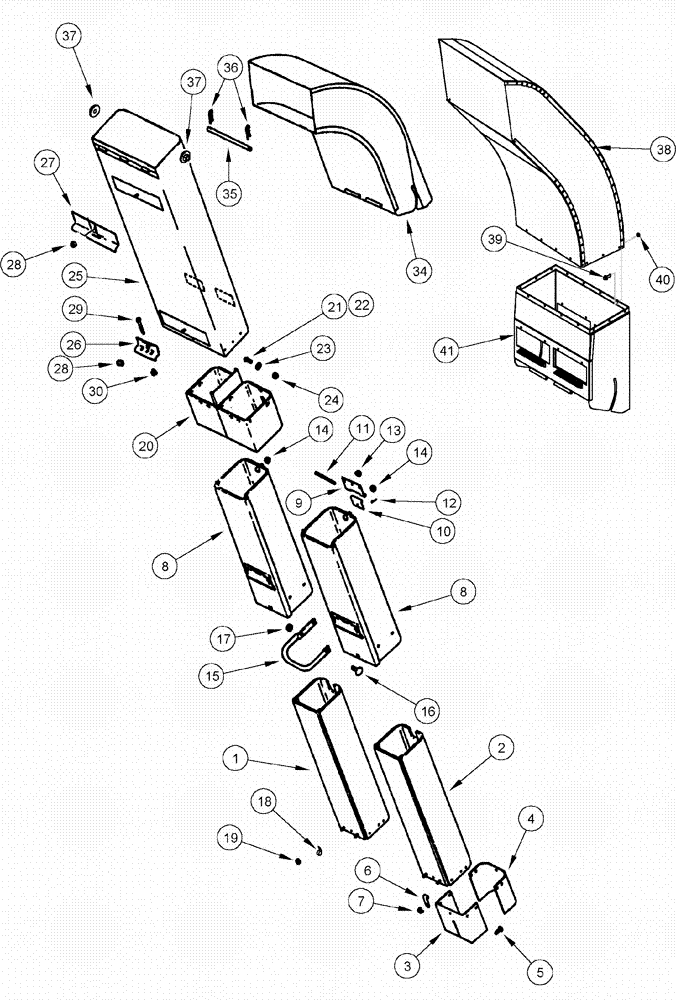

Запчасти Case IH 620 (09C-15) - CONVEYOR CHUTES - DUAL OUTER, 6 ROW WIDE, NO. 1, 2, 5, 6 (15) - HANDLING SYSTEM

1

226659A1

CHUTE

Male, Lower, Outer, No. 1R, 6F

2шт.

2

1349803C1

CHUTE

Male, Lower, Outer, No. 1F, 2F, 2R, 5F, 5R, 6R

6шт.

3

131427A2

SHEET

Polyurethane

8шт.

4

131428A2

SHEET

Polyurethane

8шт.

5

477-73120

SERRATED SCREW,Truss HD, 5/16" - 18 x 1-1/4"

8шт.

6

1984343C1

HOOK

Air Pipe

8шт.

7

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

16шт.

8

1984139C3

CHUTE

Female, Outer, No. 1F, 1R, 2F, 2R, 5F, 5R, 6F, 6R

8шт.

9

1349843C1

HINGE

Female

16шт.

10

1270014C1

HINGE

Male

16шт.

11

1349860C1

PIN,7.94mm OD x 129mm L

16шт.

12

432-816

COTTER PIN,1/8" x 1"

16шт.

13

231-4116

NUT,3/8"-16, GB

16шт.

14

231-5146

FLANGE NUT,3/8"-16

16шт.

15

196609A1

BRACKET

Air Hose

4шт.

16

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

12шт.

17

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

18

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

8шт.

19

231-4115

NUT,5/16"-18, GB

8шт.

20

1349872C3

DIVIDER

Double Chute

4шт.

21

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

80шт.

22

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

32шт.

23

495-11034

WASHER,5/16", SAE

28шт.

24

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

104шт.

25

87430727

CHUTE

Double, Upper, No. 1, 2, 5, 6

4шт.

26

127589A1

CLAMP

Lower

4шт.

27

127588A1

CLAMP

4шт.

28

231-5146

FLANGE NUT,3/8"-16

24шт.

29

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

4шт.

30

230-4114

NUT,1/4"-20, GA

4шт.

34

242378A2

HOOD

Outer, Double

4шт.

35

233321A2

PIN,7.94mm OD x 366.5mm L

4шт.

36

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

8шт.

37

360662A1

NUT

5/16 Special, Conveyor Pipe, Hood

8шт.

38

87581907

HOOD

Yield Monitor

2шт.

39

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

28шт.

40

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

28шт.

41

87601440

HOOD

Adapter, Yield Monitor

2шт.
