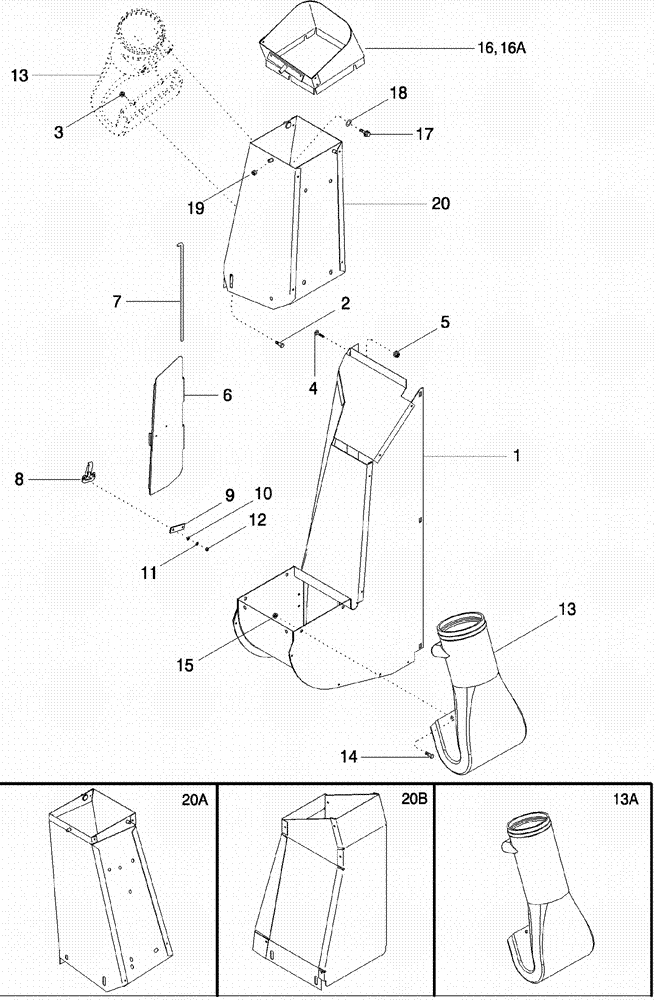

Запчасти Case IH 620 (09C-05) - DRUM OUTLETS - REAR - 6 ROW WIDE, NO. 1, 2, 3, 4, 5, 6, 6 ROW NARROW, NO. 1,2 ,5, 6, 4 ROW WIDE, NO. 1, 2, 3, 4 (15) - HANDLING SYSTEM

87454858

PACKAGE

Rear Outlets, Inc. 1 - 12

1шт.

87448384

OUTLET

Rear, Inc., 1, 6 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

DRUM OUTLET, Rear

1шт.

2

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

7шт.

4

434-58

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1/2", Gr 5

3шт.

5

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

6

87448383

DOOR

1шт.

7

283953A1

PIN,6.35mm OD

1шт.

8

1333780C1

LATCH

1шт.

9

119069A1

PLATE

1шт.

10

495-31022

WASHER,#10

2шт.

11

492-11010

LOCK WASHER,#10

2шт.

12

225-14210

NUT,#10-32

2шт.

431491A1

PACKAGE

Rear Nozzle, Inc. 13, 14, 15, 17 (2)

1шт.

431473A1

PACKAGE

Rear Nozzle, Inc. 13A, 14, 15, 17 (2)

1шт.

13

324164A1

NOZZLE

Rear Outlet, Short, 6 Row Wide, No. 1, 3, 4, and 6

1шт.

13a

283596A1

NOZZLE

Wide, 6 Row Wide, No. 2 and 5, 6 Row Narrow, No. 1, 2, 5, and 6

1шт.

14

477-73112

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"

2шт.

15

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

431472A1

PACKAGE

Rear Transition, Inc. 16, 19, 21

1шт.

431475A1

PACKAGE

Rear Transition, Inc. 16A, 19, 21

1шт.

16

1545953C1

HOUSING

Transition, Angled, 6 Row Wide, No. 1 and 2, 6 Row Narrow, No. 1

1шт.

16a

1990497C1

HOUSING

Transition, Straight, 6 Row Wide, No. 3, 5 and 6 , 6 Row Narrow, No. 2, 5 and 6

1шт.

17

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

18

495-81120

WASHER,.344" x 1 1/4" x .120"

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

431471A1

PACKAGE

Rear Extension, Inc. 2, 3 (4), 20

1шт.

431481A1

PACKAGE

Rear Extension, Inc. 2, 3 (4), 20A

1шт.

431497A1

PACKAGE

Rear Extension, Inc. 2, 3 (4), 20B, 21

1шт.

431651A1

PACKAGE

Rear Extension, Inc. 2, 3 (4), 20C

1шт.

20

283750A4

EXTENSION

Rear, 6 Row Wide, No. 2 and 5, 6 Row Narrrow, No. 1, 2, 5, and 6

1шт.

20a

283755A3

EXTENSION

Rear, 6 Row Wide, No. 3 and 6

1шт.

20b

338756A1

CHUTE (DOWNWARD)

Rear, 6, Row Wide, No. 4

1шт.

20c

87408862

EXTENSION

Rear, 6 Row Wide, No. 1

1шт.

21

231-4116

NUT,3/8"-16, GB

(Not Shown)

1шт.
