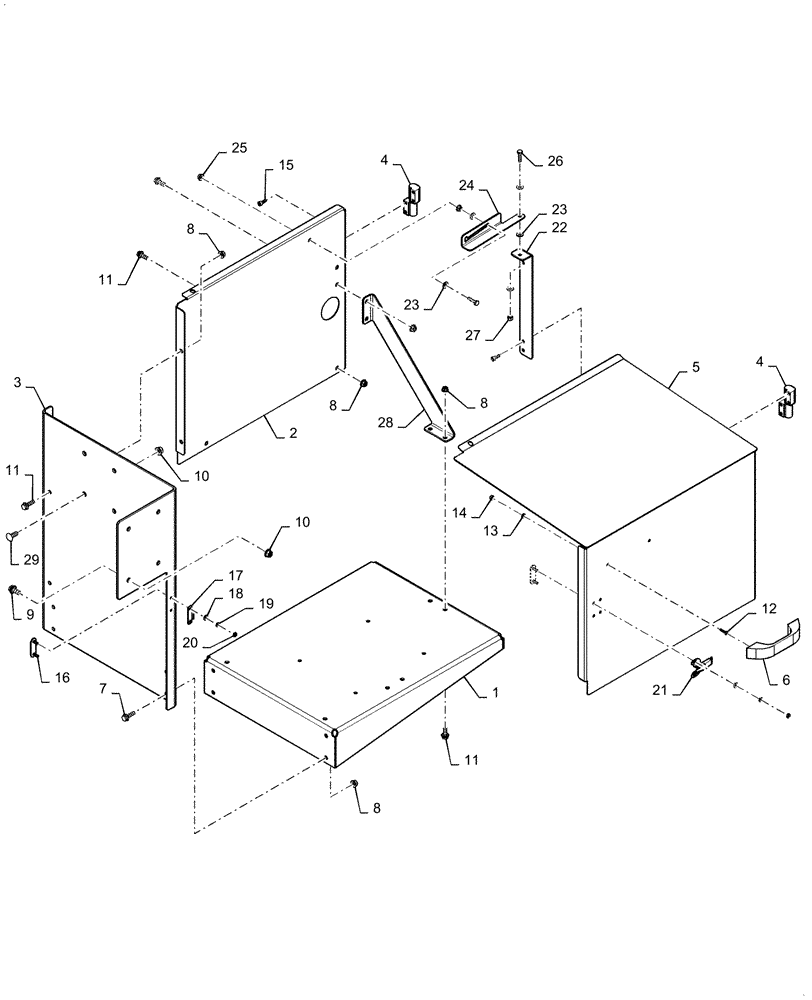

Запчасти Case IH 620 (09B-06) - WATER PUMP, ENGINE ENCLOSURE ASSY (14) - WATER SYSTEM

1

47493553

SUPPORT

Bottom, Enclosure

1шт.

2

47493549

PANEL

Side, Enclosure

1шт.

3

47493555

MOUNT

Enclosure

1шт.

4

BN306286

HINGE

Nylon

2шт.

5

47493547

COVER

With Enclosure

1шт.

6

BN311626

HANDLE

1шт.

7

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

12шт.

9

409-7612

BOLT,3/8"-16 x 1.09" OAL

4шт.

10

231-5146

FLANGE NUT,3/8"-16

8шт.

11

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

8шт.

12

BN311631

BOLT,#10 - 24 x 3/4", SST

2шт.

13

BN310265

WASHER

2шт.

14

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

2шт.

15

87343625

HEX SOC SCREW,M6 x 16mm, Cl 8.8, Full Thd

8шт.

16

119069A1

PLATE

Assy, Outlet Door Latch

2шт.

17

87430154

STRAP

Door Latch

1шт.

18

495-31022

WASHER,#10

4шт.

19

492-11010

LOCK WASHER,#10

4шт.

20

225-14210

NUT,#10-32

4шт.

21

1333780C1

LATCH

Access Door

1шт.

22

47610582

BRACKET

Latch Pivot

1шт.

23

495-11028

WASHER,1/4", SAE

5шт.

24

47610580

LATCH

Door Stop

1шт.

25

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

26

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

2шт.

27

230-4114

NUT,1/4"-20, GA

1шт.

28

47633190

PANEL

Side, Enclosure

1шт.

29

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

4шт.
