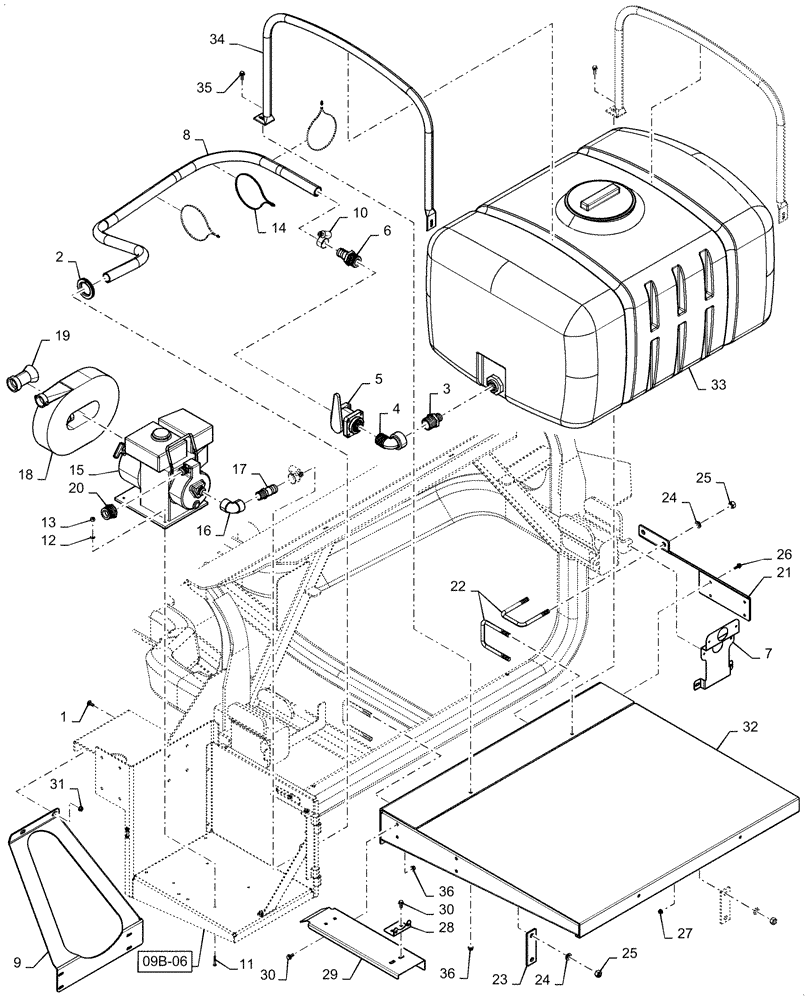

Запчасти Case IH 620 (09B-05) - WATER TANK, PUMP ASSY (14) - WATER SYSTEM

1

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

2

135370A1

PROTECTION STRIP

1шт.

3

BN73741

NIPPLE

1шт.

4

BN73730

ELBOW,1-1/2", Poly

1шт.

5

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

1шт.

6

BN73740

PIPE FITTING,1-1/2" Male Thread x 1-1/4" Hose Barb

1шт.

7

47575260

BRACKET

2шт.

8

342070A1

HOSE

1шт.

9

47633179

1шт.

10

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

2шт.

11

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

4шт.

12

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

13

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

14

BN53812

STRAP

4шт.

15

47566941

PUMP

1шт.

16

BN73742

ELBOW

1шт.

17

BN321509

FITTING

1шт.

18

47566943

HOSE

1шт.

19

47566945

NOZZLE

1шт.

20

BN73717

BUSHING,1-1/2" Male NPT x 1" Female NPT, Poly

1шт.

21

47638922

SUPPORT

1шт.

22

87427161

U-BOLT

3шт.

23

47626110

PLATE

2шт.

24

492-11062

BEARING WASHER,5/8"

6шт.

25

86625068

NUT,5/8"-11, G8

6шт.

26

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

27

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

28

47638680

MOUNT

1шт.

29

47638672

SHIELD

1шт.

30

409-7612

BOLT,3/8"-16 x 1.09" OAL

6шт.

31

231-5146

FLANGE NUT,3/8"-16

8шт.

32

47566888

MOUNT

1шт.

33

47566938

TANK

1шт.

34

47572517

TUBE

2шт.

35

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

36

231-5146

FLANGE NUT,3/8"-16

4шт.
