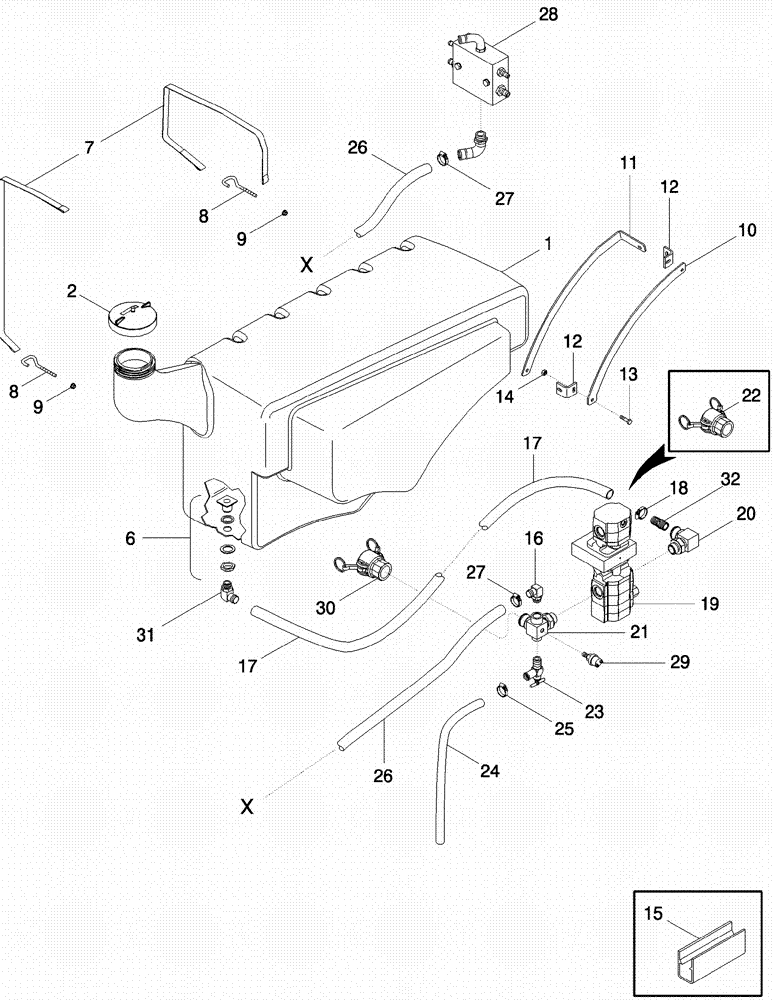

Запчасти Case IH 620 (09A-46) - DRUM BAR LUBRICATION SYSTEM, GREASE TANK AND PUMP (13) - PICKING SYSTEM

1

87335115

TANK

ASSY 80 gal, Grease, Bar Lubrication, Inc. 2, 6

1шт.

2

87318683

CAP ASSY.

Vented

1шт.

6

87318682

BULKHEAD

3/4 PT

1шт.

7

353858A1

STRAP

Mounting

2шт.

8

353851A2

SPECIAL BOLT

2шт.

9

231-5146

FLANGE NUT,3/8"-16

2шт.

10

448225A1

RIB

Outer Grease Tank Support

2шт.

11

448226A1

RIB

Inner Grease Tank Support

1шт.

12

434773A1

ANGLE

Support

3шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

8шт.

14

231-5146

FLANGE NUT,3/8"-16

8шт.

15

237682A1

PROTECTION STRIP

305 mm (12 in), Cut From 1330108CX

4шт.

16

122567A1

ELBOW

1шт.

17

428309A1

HYDRAULIC HOSE,25.40 mm ID x 610.00 mm

610 mm (24 in), Cut From 1990222C1

1шт.

18

1954736C1

HOSE CLAMP,#24

1шт.

19

250706A2

LUBE PUMP

Grease

1шт.

See Figure 08-20

1шт.

250706A2R

REMAN-HYD PUMP

620 (9/06-)

1шт.

250706A2C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

412270A1

FITTING

Inlet

1шт.

21

412268A1

FITTING

Outlet

1шт.

22

118755A1

COUPLING

1шт.

23

301803R1

SHUT-OFF VALVE

1шт.

24

293685A1

HOSE,15.75 mm ID x 650.00 mm

650 mm (25-58 in), Cut From 1977295C1

1шт.

25

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

26

87415001

HOSE,815.00 mm

Cut From 122469A1

1шт.

27

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

28

426601A1

BLOCK

Manifold, See Figure(s), 09A-38A, 09A-38B

1шт.

29

1987419C1

PROBE

Bar Lubrication

1шт.

30

118754A1

PLUG

1шт.

31

134271C2

ELBOW,ELBOW, 90

1шт.

32

417469A1

FITTING

1шт.
