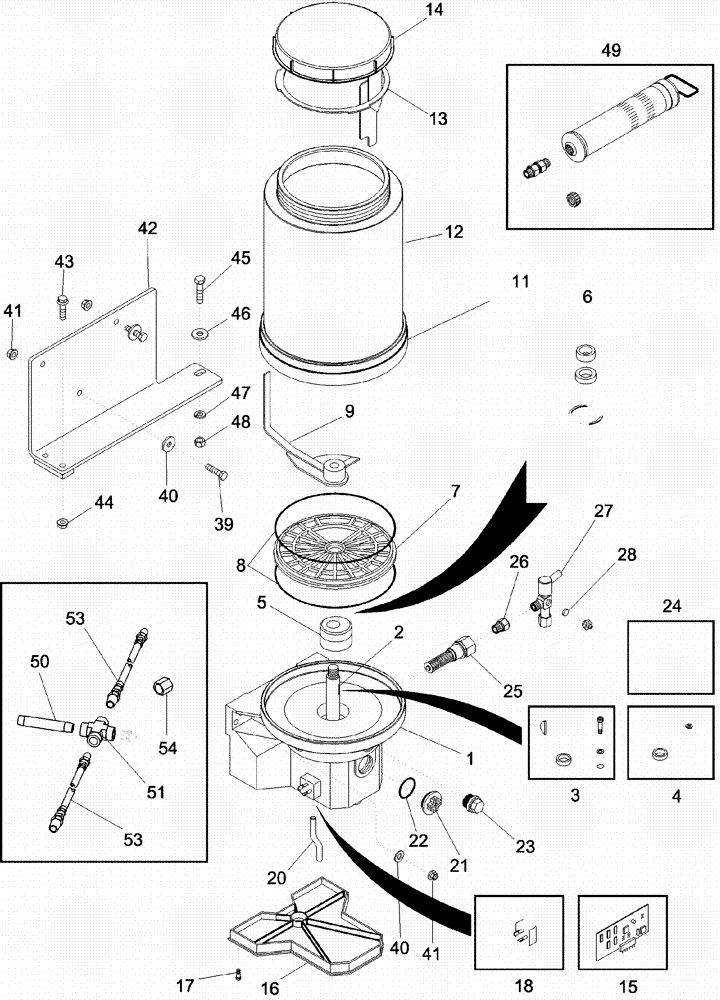

Запчасти Case IH 620 (09A-43) - LINCOLN AUTO LUBE PUMP (13) - PICKING SYSTEM

429330A1

PUMP

Lincoln Auto Lube Pump, Inc. 1 - 18, 20 - 28

1шт.

1

429609A1

HOUSING

Lincoln Auto Lube Pump

1шт.

2

NSS

NOT SOLD SEPARAT

MOTOR, Electric

1шт.

3

431131A1

KIT

12 VDC, Inc. 2

1шт.

4

431130A1

SEAL KIT

Bearing and Seal

1шт.

5

431127A1

CAM

1шт.

6

431132A1

SEAL KIT

Seal, Housing

1шт.

7

431126A1

PLATE

Intermediate

1шт.

8

431122A1

O-RING

2шт.

9

431137A1

PADDLE

Stirring

1шт.

10

431141A1

ADAPTER

(Not Shown)

1шт.

11

431140A1

O-RING

1шт.

12

430189A1

RESERVOIR

1шт.

13

431135A1

PADDLE

Stirring, Fixed

1шт.

14

431134A1

COVER

Reservoir

1шт.

15

431123A1

BOARD

Circuit

1шт.

16

431124A1

COVER

1шт.

17

431144A1

SCREW

10шт.

18

431133A1

KIT

Power Plug

1шт.

20

431139A1

HOSE

1шт.

21

700720105

PLUG

1шт.

22

238-5026

O-RING,0.07" Thk x 1.239" ID, -26, Cl 5, 75 Duro

1шт.

23

700720104

PLUG

1шт.

24

431142A1

WASHER

Used With 25

1шт.

25

432854A1

ELEMENT

6 mm

1шт.

See Figure 08-45

1шт.

26

429341A1

FITTING

Relief Valve

1шт.

27

429342A1

VALVE PRESSURE RELIE

1шт.

28

431129A1

SEAL

1шт.

39

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

3шт.

40

495-81117

WASHER,.344" x 1" x .120"

3шт.

41

231-5345

FLANGE NUT,Flg, 5/16"-18

3шт.

42

87316963

BRACKET

Pump Mounting

1шт.

43

409-7520

BOLT,Hex Flg, 5/16" - 18 x 1 1/4", Spcl

2шт.

44

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

45

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

1шт.

46

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

1шт.

47

492-11038

LOCK WASHER,3/8"

1шт.

48

425-106

NUT,3/8"-16, Cl 5

1шт.

49

B96092

PUMP

Manual Filler Gun

1шт.

50

87266873

NIPPLE

1шт.

51

87596840

PIPE

1шт.

52

2290291

2шт.

53

87323227

HOSE,4.76mm ID x 711mm L, SAE 100R7

Grease Pump Outlet Drum

2шт.

54

87596841

CAP

4шт.
