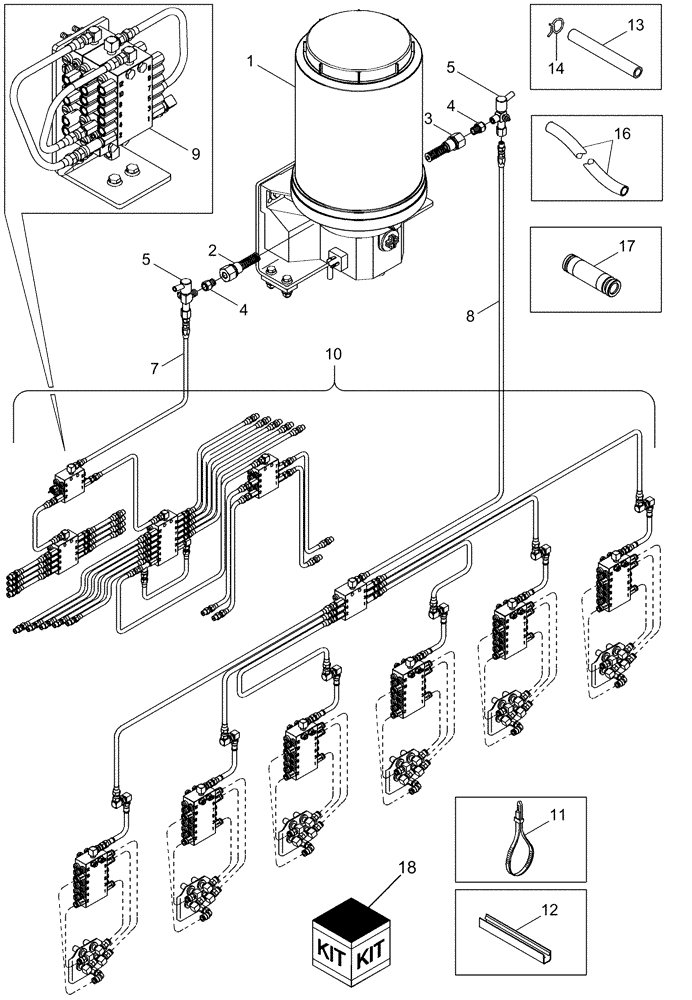

Запчасти Case IH 620 (09A-42) - AUTOMATIC LUBRICATION SYSTEM (13) - PICKING SYSTEM

1

429330A1

PUMP

Lincoln Auto Lube Pump

1шт.

See Figure 09A-44

1шт.

2

429340A1

ELEMENT

7 mm

1шт.

3

429339A1

ELEMENT

5 mm

1шт.

4

429341A1

FITTING

2шт.

5

429342A1

VALVE PRESSURE RELIE

2шт.

7

87323227

HOSE,4.76mm ID x 711mm L, SAE 100R7

Chassis Lube Supply

1шт.

8

87323226

HOSE

Drum Lube Supply

1шт.

9

REF

INSTRUCTION

VALVE ASSEMBLY COMPLETE

1шт.

See Figure 09A-45

1шт.

10

REF

INSTRUCTION

LUBE LINES

1шт.

See Figure 09A-46

1шт.

11

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP 15"

100шт.

12

195510A1

PROTECTION STRIP

91 mm (3-5/8 in)

4шт.

13

431125A1

HOSE

25.4 mm (1 in), 1/4 in ID

15шт.

14

1988888C1

CLAMP

3/8

15шт.

16

430134A1

TUBE

Grease Filled, 15240 mm (50 ft), 1/4 in OD

1шт.

Used for Repair of 1/4 in OD Grease Lines Inside Picker Drum Cabinet With "Push On" Fittings

1шт.

17

448990A1

TUBE,1/4" x 1/4"

1/4 in OD, Repair

1шт.

Used for Repair of 1/4 in OD Grease Lines Inside Picker Drum Cabinet With "Push On" Fittings

1шт.

18

84136354

PACKAGE,SERVICE

Hose, Bar Lube Fill

1шт.
