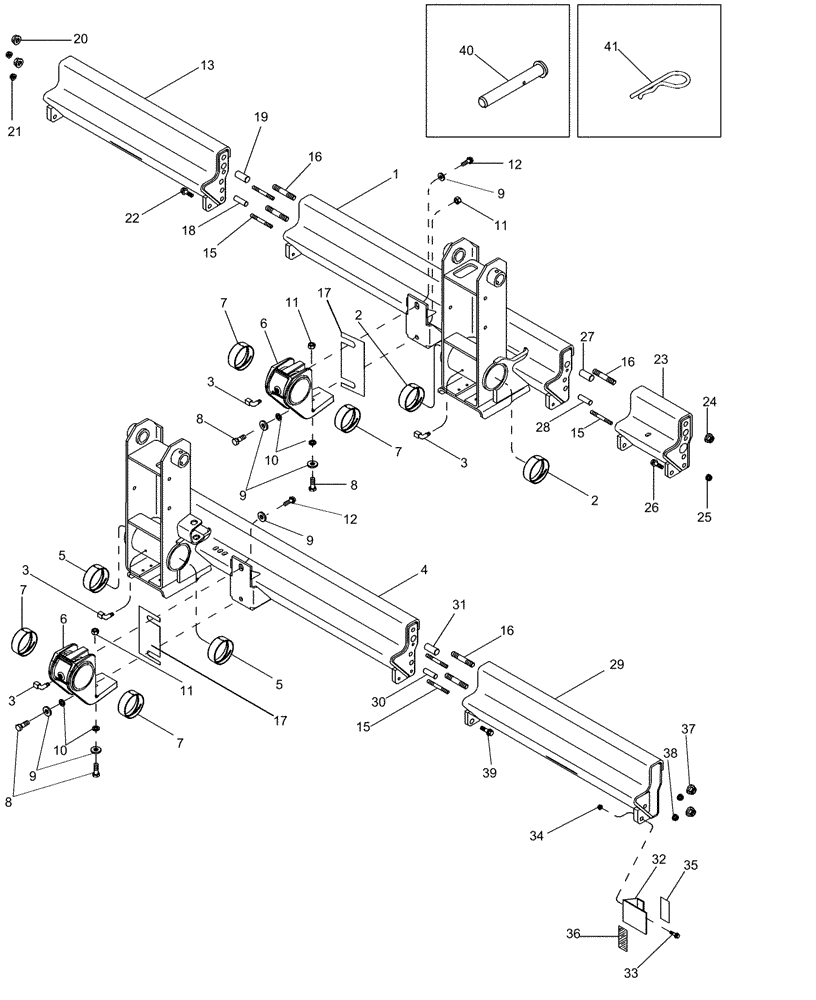

Запчасти Case IH 620 (09A-40) - TOOLBARS AND EXTENSIONS (13) - PICKING SYSTEM

1

84160709

FRAME ASSY

Main Toolbar, Left Hand, Inc. 2

1шт.

2

115792A1

BUSHING

4-3/16 OD

2шт.

3

217-20

ELBOW,90 Degree, 1/8"-28 NPTF, Fem x 1/8"-27 NPTF Male

4шт.

4

84160708

FRAME ASSY

Main Toolbar, Right Hand, Inc. 5

1шт.

5

115792A1

BUSHING

4-3/16 OD

2шт.

6

84160702

RETAINER

Inc. 7

2шт.

7

115792A1

BUSHING

4-3/16 OD

4шт.

8

426-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 8

4шт.

9

496-41066

WASHER,5/8" ID x 1-1/2" OD x 3/16" Thk

6шт.

10

492-11062

BEARING WASHER,5/8"

6шт.

11

29-1010

NUT,5/8"-11, G8

2шт.

12

426-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 8

4шт.

13

143493A2

BAR

Extension, Left Hand, 50.5 Inch, Inc. 18, 19

1шт.

6 Row Wide Machines

1шт.

13

87450301

BAR ASSY.

Extension, Left Hand, 18 Inch , Inc. 18, 19

1шт.

6 Row Narrow Machines

1шт.

4 Row Wide Machines

1шт.

15

1546294C1

STUD

13 x 113 mm, Upper

2-4шт.

16

1546293C1

STUD

19 x 113 mm, Lower

2-4шт.

17

84145410

SPACER

2шт.

18

37-11236

DOWEL,3/4" x 2 1/4"

1шт.

19

37-11632

DOWEL,1" x 2"

1шт.

20

232-53112

FLANGE NUT,Flg, 3/4"-10

4шт.

21

232-5318

FLANGE NUT,Flg, 1/2"-13

4шт.

22

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

2шт.

23

141491A2

BAR

Extension, Center, 11 Inch

1шт.

6 Row Narrow Machines

1шт.

24

232-53112

FLANGE NUT,Flg, 3/4"-10

4шт.

25

232-5318

FLANGE NUT,Flg, 1/2"-13

4шт.

26

409-7824

BOLT,Hex Flg, 1/2" - 13 x 1 1/2", Spcl

2шт.

27

37-11236

DOWEL,3/4" x 2 1/4"

1шт.

28

37-11632

DOWEL,1" x 2"

1шт.

29

143494A2

BAR

Extension, Right Hand, 50.5 Inch, Inc. 30, 31

1шт.

6 Row Narrow Machines

1шт.

6 Row Wide Machines

1шт.

29

87392191

EXTENSION ASSY.

Extension, Right Hand, 18 Inch, Inc. 30, 31

1шт.

30

37-11236

DOWEL,3/4" x 2 1/4"

1шт.

31

37-11632

DOWEL,1" x 2"

1шт.

32

1994997C1

BRACKET

Reflector Toolbar

2шт.

33

477-73116

SERRATED SCREW,Truss HD, 5/16" - 18 x 1"

2шт.

34

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

35

1284374C1

REFLECTOR,Reflector Red

Red

2шт.

36

1284365C2

REFLECTOR

Amber

2шт.

37

232-53112

FLANGE NUT,Flg, 3/4"-10

2шт.

38

232-5318

FLANGE NUT,Flg, 1/2"-13

2шт.

39

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

40

118485A1

PIN,12.7mm OD x 150.75mm L

Support Hold-Down

1шт.

41

586591R1

COTTER PIN

1шт.
