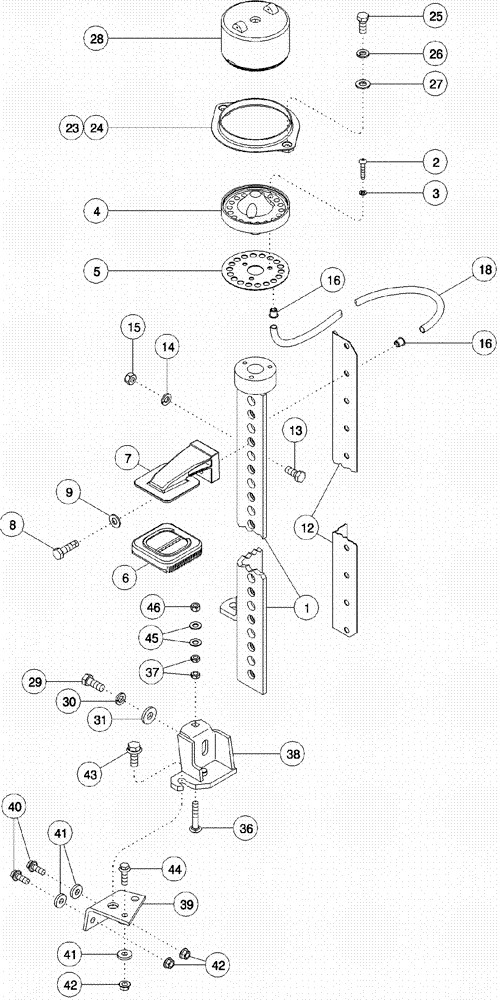

Запчасти Case IH 620 (09A-24) - MOISTENER STAND (13) - PICKING SYSTEM

87423876

STAND

Assembly, Left Hand, Inc. 1 - 19

1шт.

87423878

STAND

Assembly, Right Hand, Inc. 1B - 19

1шт.

1

1982682C1

SUPPORT

Left Hand

1шт.

1b

1982683C1

SUPPORT

Right Hand, (Not Shown)

3шт.

2

261-84516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

3шт.

3

492-11010

LOCK WASHER,#10

3шт.

4

1349998C1

CUP

Water Distributor

1шт.

5

1982416C1

PLATE

1шт.

87421999

HOLDER

Moistener Support, Inc. 6 (1), 7A (1)

18шт.

6

1338720C2

PAD

18шт.

7

NSS

NOT SOLD SEPARAT

SUPPORT, Moistener Pad

1шт.

8

310-1518

BOLT,Hex, 5/16" - 18 x 1-1/8" , Gr 8

18шт.

9

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

18шт.

12

1329244C1

SHIELD

1шт.

13

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

14

492-11031

LOCK WASHER,5/16"

3шт.

15

425-105

NUT,5/16"-18, G5

3шт.

16

669838R1

SPRING CLIP

1/4"

36шт.

18

109261A1

TUBE,4.06 mm ID, 6.35 mm OD, 102 mm Length

102 mm (4 in), No. 1, Cut From 670199R1

1шт.

18

670201R1

TUBE,0.25" OD, 5.6" Length

152 mm (6 in), No. 2, Cut From 670199R1

1шт.

18

670202R1

TUBE,0.25" OD, 7.4" Length

178 mm (7 in), No. 3, Cut From 670199R1

1шт.

18

670203R1

TUBE,0.25" OD, 9.1" Length

229 mm (9 in), No. 4, Cut From 670199R1

1шт.

18

670204R1

TUBE,0.25" OD, 11" Length

279 mm (11 in), No. 5, Cut From 670199R1

1шт.

18

670205R1

TUBE,0.25" OD, 12.9" Length

330 mm (13 in), No. 6, Cut From 670199R1

1шт.

18

670206R1

TUBE,0.25" OD, 14" Length

356 mm (14 in), No. 7, Cut From 670199R1

1шт.

18

670207R1

TUBE,0.25" OD, 15.6" Length

406 mm (16 in), No. 8, Cut From 670199R1

1шт.

18

670208R1

TUBE,0.25" OD, 17.4" Length

432 mm (17 in), No. 9, Cut From 670199R1

1шт.

18

670209R1

TUBE,0.25" OD, 19.1" Length

483 mm (19 in), No. 10, Cut From 670199R1

1шт.

18

670210R1

TUBE,0.25" OD, 20.9" Length

533 mm (21 in), No. 11, Cut From 670199R1

1шт.

18

670211R1

TUBE,0.25" OD, 22.6" Length

584 mm (23 in), No. 12, Cut From 670199R1

1шт.

18

670212R1

TUBE,0.25" OD, 24.4" Length

610 mm (24 in), No. 13, Cut From 670199R1

1шт.

18

670213R1

TUBE,0.25" OD, 26.2" Length

660 mm (26 in), No. 14, Cut From 670199R1

1шт.

18

672476R1

TUBE,0.25" OD, 28.4" Length

711 mm (28 in), No. 15, Cut From 670199R1

1шт.

18

672477R1

TUBE,0.25" OD, 30.2" Length

762 mm (30 in), No. 16, Cut From 670199R1

1шт.

18

672478R1

TUBE,0.25" OD, 32" Length

813 mm (32 in), No. 17, Cut From 670199R1

1шт.

18

672479R1

TUBE,0.25" OD, 32.9" Length

838 mm (33 in), No. 18, Cut From 670199R1

1шт.

19

291207C1

CLAMP

15 in

2шт.

23

1982745C2

ADJUSTING PLATE

Front

1шт.

24

1982747C2

ADJUSTING PLATE

Rear

1шт.

25

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

26

492-11031

LOCK WASHER,5/16"

4шт.

27

495-11034

WASHER,5/16", SAE

4шт.

28

1338549C1

COVER

Water Distribution

2шт.

29

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

30

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

31

496-41053

WASHER,13.49mm ID x 31.75mm OD x 5.05mm Thk

2шт.

36

411-636

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 1/4", Gr 2

2шт.

37

425-146

JAM NUT,3/8" - 16, Gr 5

4шт.

38

87409736

BRACKET

Left Hand, Lower Mounting

1шт.

38a

87409737

BRACKET

Right Hand, Lower Mounting, (Not Shown)

1шт.

39

87409742

ANGLE

Left Hand, Lower Mounting

1шт.

39a

87409743

ANGLE

Right Hand, Lower Mounting, (Not Shown)

1шт.

40

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

41

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

6шт.

42

231-5146

FLANGE NUT,3/8"-16

6шт.

43

409-7820

BOLT,Hex Flg, 1/2" - 13 x 1 1/4", Spcl

2шт.

44

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

45

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

46

425-106

NUT,3/8"-16, Cl 5

2шт.
