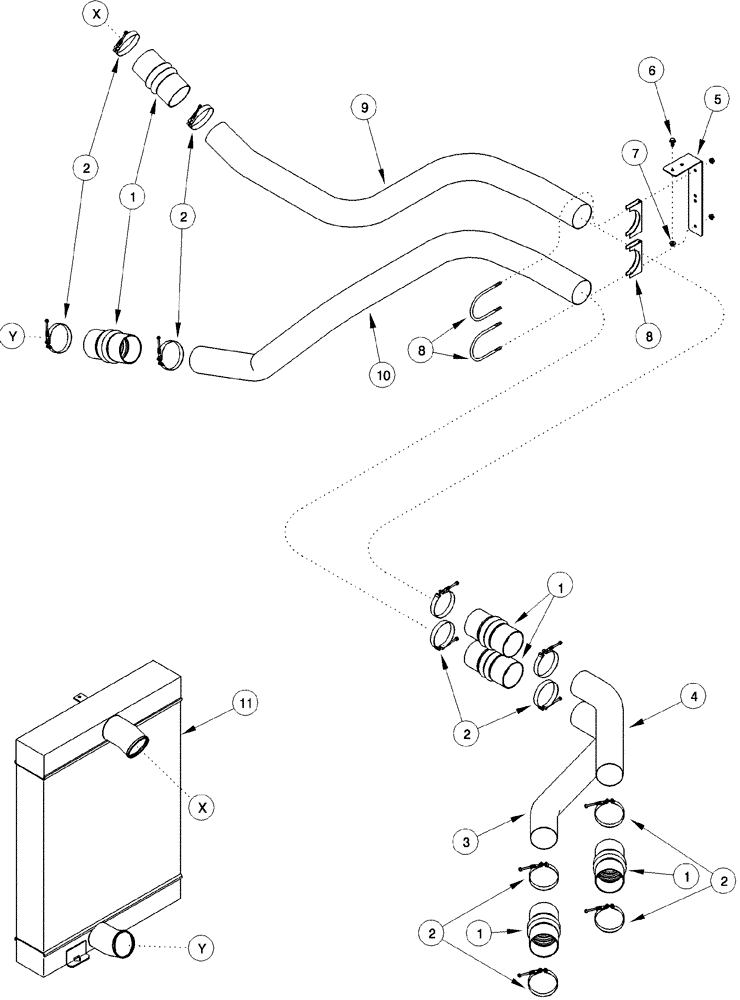

Запчасти Case IH 620 (02-04) - INTERCOOLER SYSTEM (01) - ENGINE

1

291883A1

HOSE

4 x 8 in.

6шт.

2

349360A1

CLAMP

12шт.

3

87338355

TUBE,101.60mm OD

4-1/8 O.D., Cold Engine

1шт.

4

291292A2

TUBE,620, 110 mm Length

4-1/8 O.D., Hot Engine

1шт.

5

396946A2

BRACKET

1шт.

6

458-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

7

231-5146

FLANGE NUT,3/8"-16

2шт.

8

A162896

CLAMP

Inc. Hardware

2шт.

9

395773A1

TUBE

4-1/8 O.D., Hot Chute

1шт.

10

395774A1

TUBE

4-1/8 O.D., Cold Chute

1шт.

11

254404A2

AFTERCOOLER

Charge Air Cooler

1шт.
