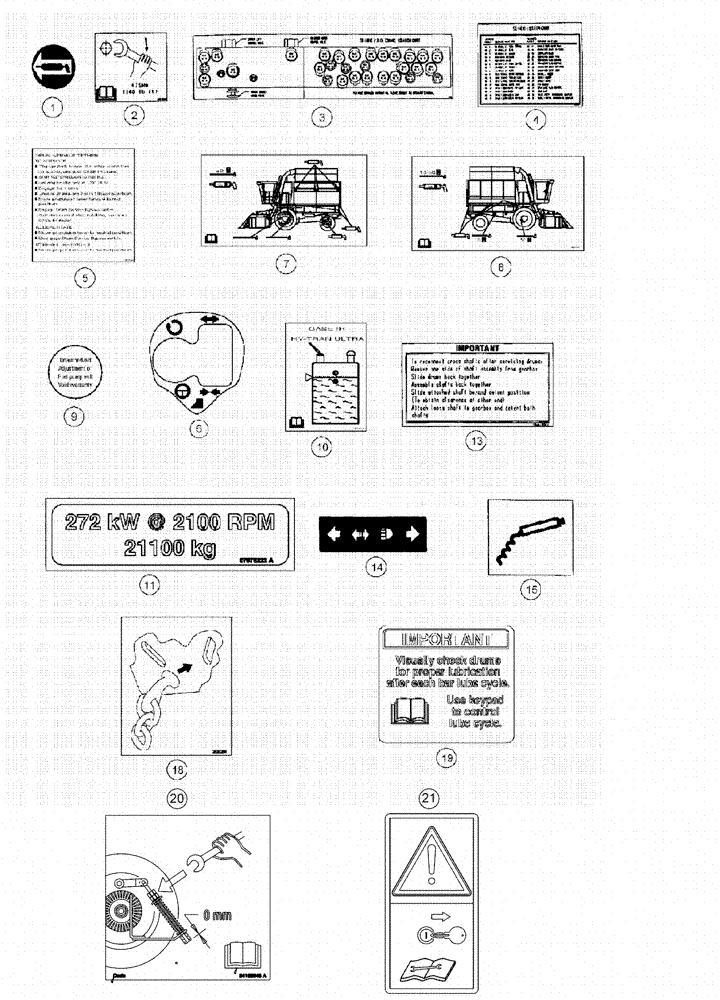

Запчасти Case IH 620 (09F-14) - DECALS - GENERAL INSTRUCTIONS (12) - CHASSIS

1

128490C1

DECAL

Grease Fitting Locator

10шт.

2

181917A2

DECAL

Wheel Bolt Torque, Models with Mud Hog

2шт.

3

1546129C1

DECAL

Solenoid/Flow Control Location Chart, English

1шт.

3

302623A1

DECAL

Solenoid/Flow Control Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

3

302353A1

DECAL

Solenoid/Flow Control Location Chart, Portuguese Language

1шт.

3

84163547

DECAL

Solenoid/Flow Control Location Chart, Chinese Language

1шт.

4

1546130C2

DECAL

Solenoid Location Chart, English

1шт.

4

109145A1

DECAL

Solenoid Location Chart, Spanish Language, European Models, Latin American Spanish

1шт.

4

302223A1

DECAL

Solenoid Location Chart, Portuguese Langauge

1шт.

4

84163551

DECAL

Solenoid Location Chart, Chinese Langauge

1шт.

5

194003A2

DECAL

Drum Service Tether, English

1шт.

5

254902A2

DECAL

Drum Service Tether, Spanish Language, European Models, Latin American Spanish

1шт.

5

302229A2

DECAL

Drum Service Tether, Portuguese Langauge

1шт.

5

84163528

DECAL

Drum Service Tether, Chinese Langauge

1шт.

6

87664104

DECAL

Drum Tether

1шт.

7

87584758

DECAL

Lubrication Chart, Left Hand Chassis

1шт.

8

87584759

DECAL

Lubrication Chart, Right Hand Chassis

1шт.

9

184666A1

DECAL

Warranty, Fuel Pump, English

1шт.

9

184669A1

DECAL

Warranty, Fuel Pump, Spanish Language, European Models, Latin American Spanish

1шт.

9

278583A1

DECAL

Warranty, Fuel Pump, Portuguese Langauge

1шт.

9

84163556

DECAL

Warranty, Fuel Pump, Chinese Langauge

1шт.

10

186936A3

DECAL

Hydraulic Oil Level

1шт.

11

87678222

DECAL

Power Rating and Mass, Turkey

1шт.

13

1546103C1

DECAL

Cross Shaft Reconnect, English

6шт.

13

254991A1

DECAL

Cross Shaft Reconnect, Spanish Language, European Models, Latin American Spanish

6шт.

13

302227A1

DECAL

Cross Shaft Reconnect, Portuguese Language

1шт.

14

120332A1

DECAL

Directional Arrows

1шт.

15

186944A1

DECAL

Tether Location

1шт.

18

283528A1

DECAL

T-Hook

6шт.

19

87653397

DECAL

Visual Lube Drum Check, English

1шт.

19

87653398

DECAL

Visual Lube Drum Check, Turkish

1шт.

19

87673675

DECAL

Visual Lube Drum Check, Portuguese

1шт.

19

84163597

DECAL

Visual Lube Drum Check, Chinese

1шт.

20

84168945

DECAL

Front Fan Tensioner Adjustment

1шт.
