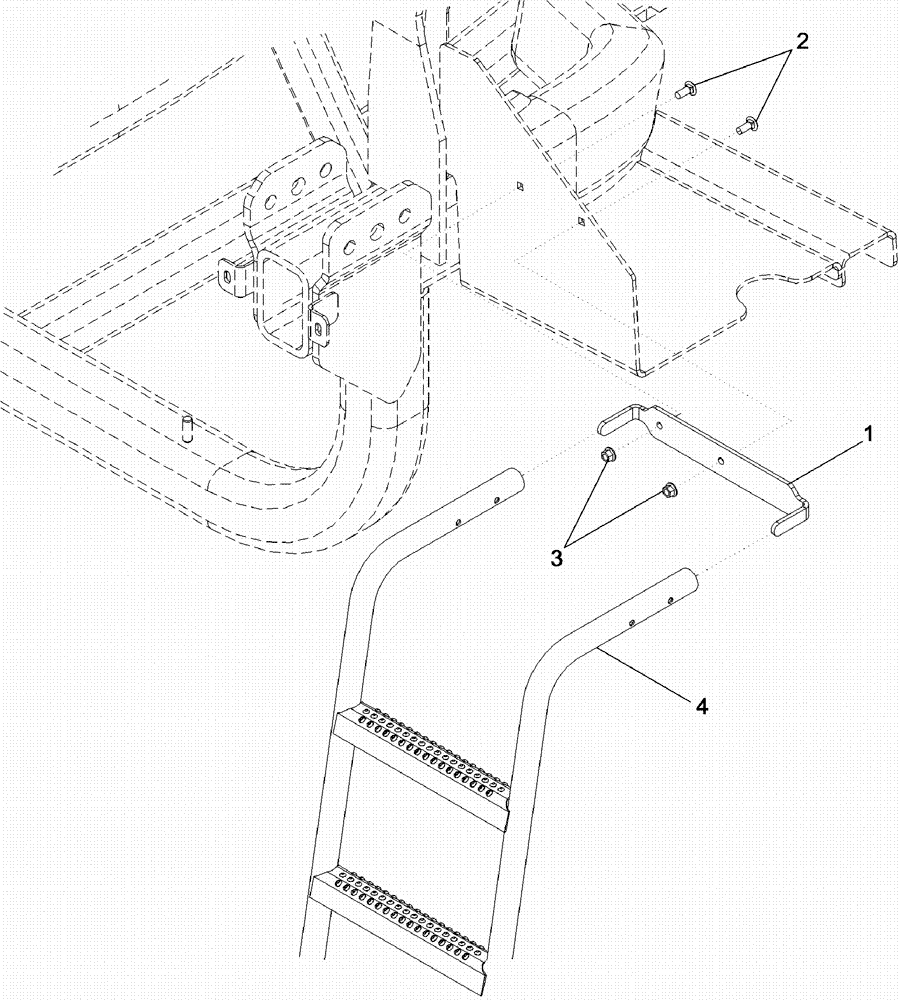

Запчасти Case IH 620 (09F-12B) - FUEL FILL ACCESS LADDER - TURKEY (12) - CHASSIS

1

87663556

BRACKET

Fuel Fill Ladder

1шт.

2

433-616

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1", Gr 5

2шт.

3

86521609

FLANGE NUT,Flg, 3/8"-16

2шт.

4

87534703

LADDER

1шт.

5

1338021C1

PIN,7.94mm OD

(Not Shown)

2шт.
