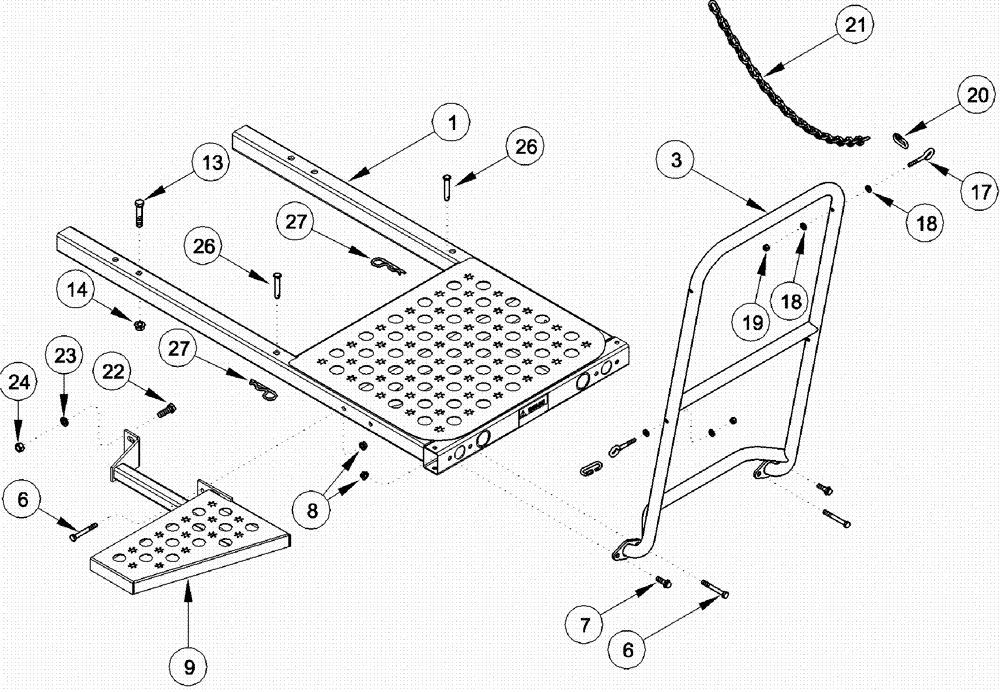

Запчасти Case IH 620 (09F-12A) - SERVICE DECK PLATFORM (12) - CHASSIS

1

87573694

PLATFORM ASSY.

Inc. Decal 191129A1

1шт.

3

445286A1

GRAB RAIL

4 Row Wide, 5 Row Narrow

1шт.

6

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

2шт.

8

231-5146

FLANGE NUT,3/8"-16

1шт.

9

87573696

STEP

1шт.

13

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

4шт.

14

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

17

449894A1

EYEBOLT

8шт.

18

495-11034

WASHER,5/16", SAE

16шт.

19

231-4215

LOCK NUT,5/16"-18, GB

8шт.

20

326376A2

LINK

8шт.

21

449891A1

CHAIN

Service Platform

4шт.

22

414-824

BOLT,Hex, 1/2" - 20 x 1-1/2", Gr 5

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

2шт.

26

439-1848

HEADED PIN,1/2" x 3"

2шт.

27

486830R1

COTTER PIN

2шт.
