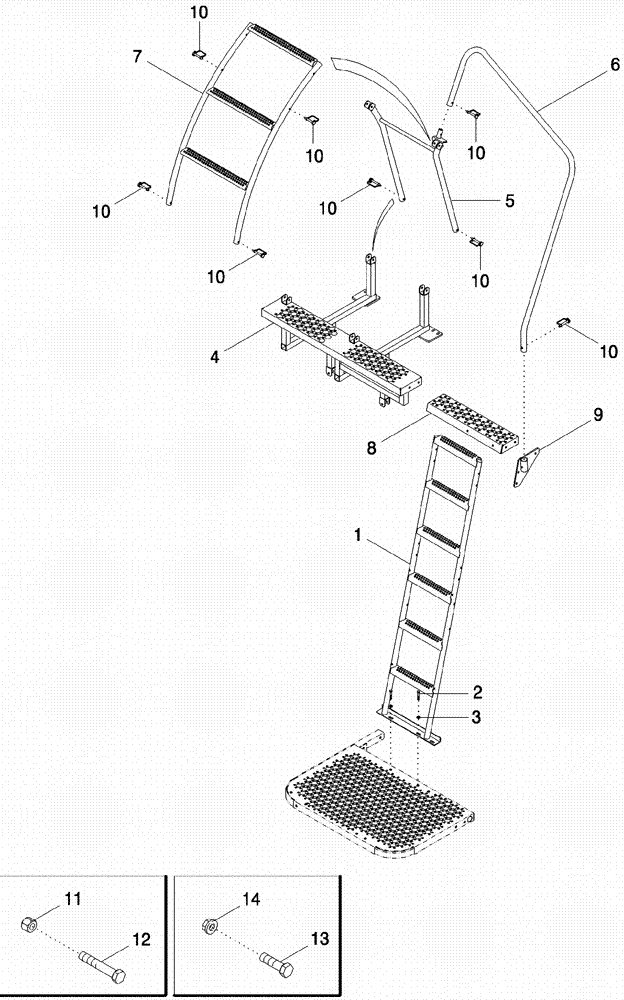

Запчасти Case IH 620 (09F-09) - STEPS LADDERS - BASKET LID - 6 ROW WIDE (12) - CHASSIS

1

444246A2

LADDER

Basket

1шт.

2

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

3шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

3шт.

4

257158A4

STEP

Basket Lid

1шт.

5

87416424

SUPPORT

Ladder, Basket Lid

1шт.

6

87416426

TUBE

Handrail, Basket

1шт.

7

282465A4

LADDER

Basket Lid

1шт.

8

87607878

STEP

Basket Lid

1шт.

9

394224A2

BRACKET

Ladder Support

1шт.

10

432959A1

LOCK PIN

8шт.

11

231-4116

NUT,3/8"-16, GB

7шт.

12

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

4шт.

13

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

6шт.

14

231-5146

FLANGE NUT,3/8"-16

10шт.
