(09F-08[01]) - FUEL TANK SUPPORTS - MAIN FRAME MDL YEAR 2014

Запчасти Case IH 620 (09F-08[01]) - FUEL TANK SUPPORTS - MAIN FRAME MDL YEAR 2014 (12) - CHASSIS

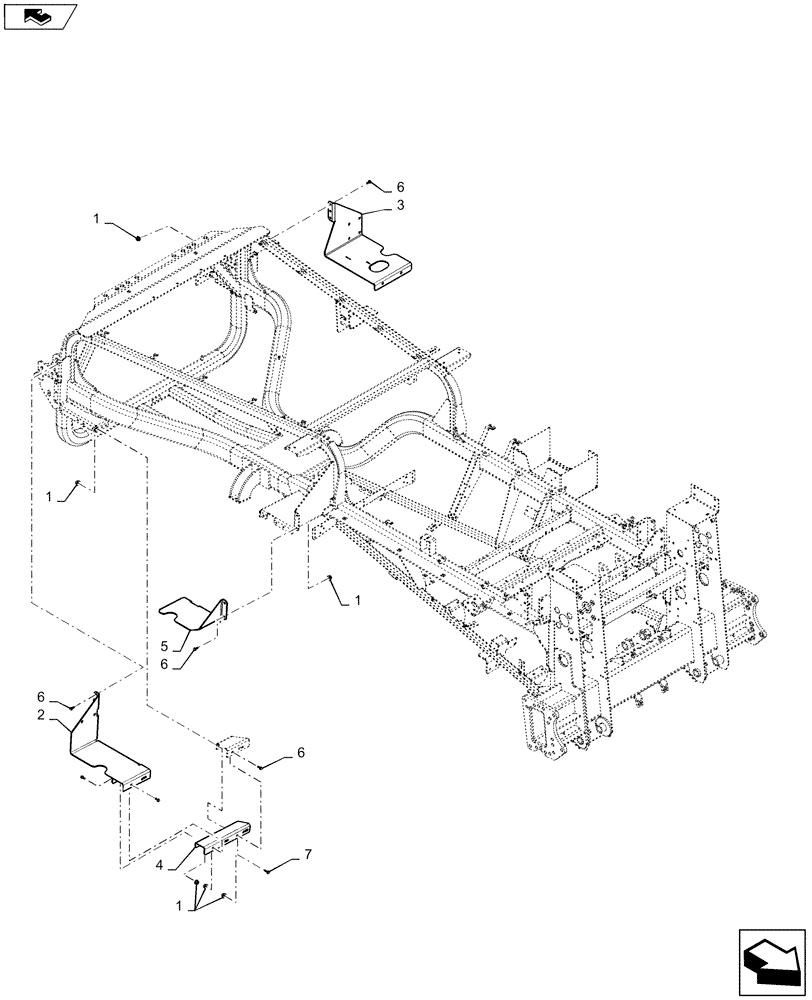

Схема запчастей Case IH 620 - (09F-08[01]) - FUEL TANK SUPPORTS - MAIN FRAME MDL YEAR 2014 (12) - CHASSIS
1
1
6
7
6
6
4
home
2
5
1
6
3
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

231-5146

FLANGE NUT,3/8"-16

28шт.

2

47477860

SUPPORT

Fuel Tank, Front

1шт.

3

47477858

SUPPORT

Grease Tank

1шт.

4

47477854

CHANNEL

Fuel Tank

1шт.

5

47477856

SUPPORT

Fuel Tank, Front

1шт.

6

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

25шт.

7

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

3шт.
