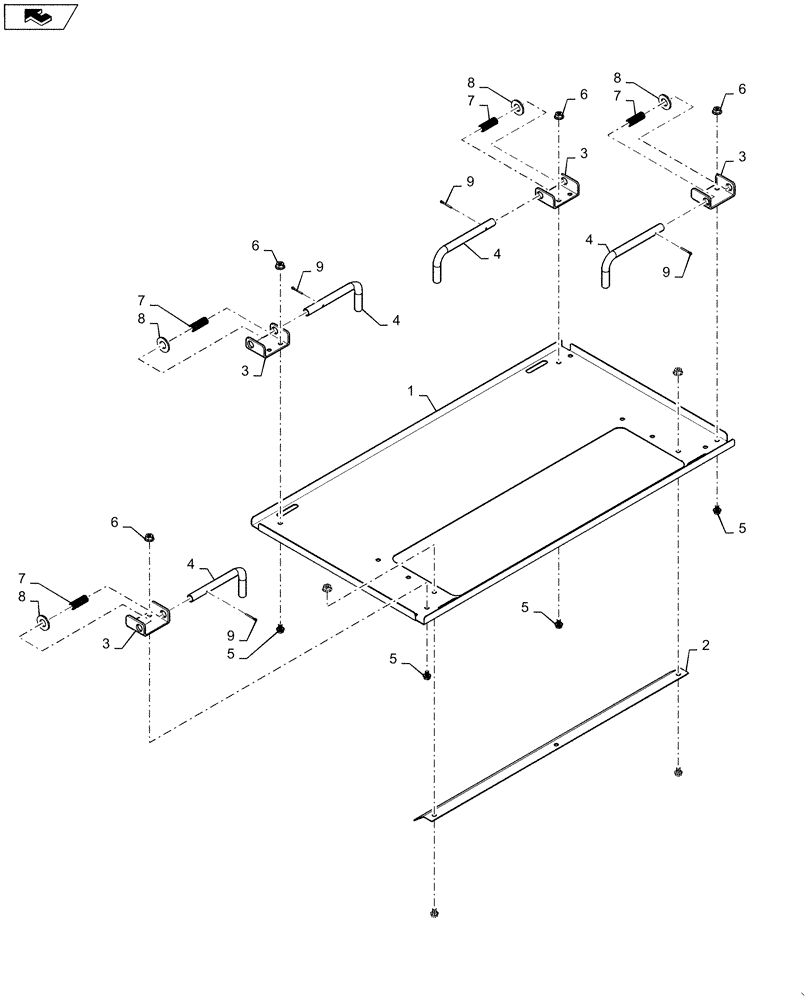

Запчасти Case IH 620 (09F-07[02]) - PLANT TUNNEL, PANEL ASSEMBLY (12) - CHASSIS

1

84575563

PLATE

Front

1шт.

2

84575498

ANGLE

3шт.

3

84574225

CHANNEL

4шт.

4

394549

HANDLE,12mm OD

4шт.

5

409-758

BOLT,Hex Flg, 5/16" - 18 x 1/2", Spcl

14шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

14шт.

7

84814911

SPRING

4шт.

8

495-11053

WASHER,1/2", SAE

4шт.

9

432-816

COTTER PIN,1/8" x 1"

4шт.
