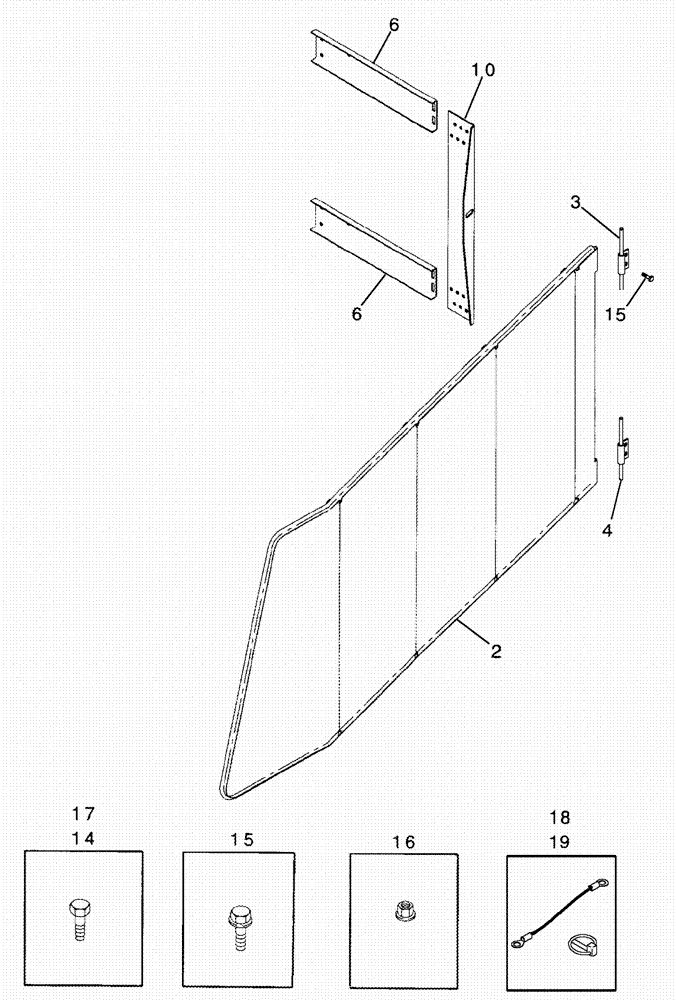

Запчасти Case IH 620 (09F-05) - RIGHT HAND WHEEL SHIELD - 4 ROW WIDE (12) - CHASSIS

2

293715A2

GUARD ASSY.

Wheel, Right Hand

1шт.

3

87436459

HINGE

Shield, Upper

2шт.

4

87436460

HINGE

Shield, Lower

2шт.

6

293725A1

SHEET

Support, Shield, Right Hand

2шт.

10

293726A2

SUPPORT

Latch Shield, Right Hand

1шт.

14

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

1шт.

15

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

3шт.

16

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

9шт.

17

413-416

BOLT,Hex, 1/4" - 20 x 1", Gr 5

1шт.

18

132657A2

CABLE

Shield Tether

1шт.

19

A33497

LINCH PIN,4.76mm OD Pin

1шт.
