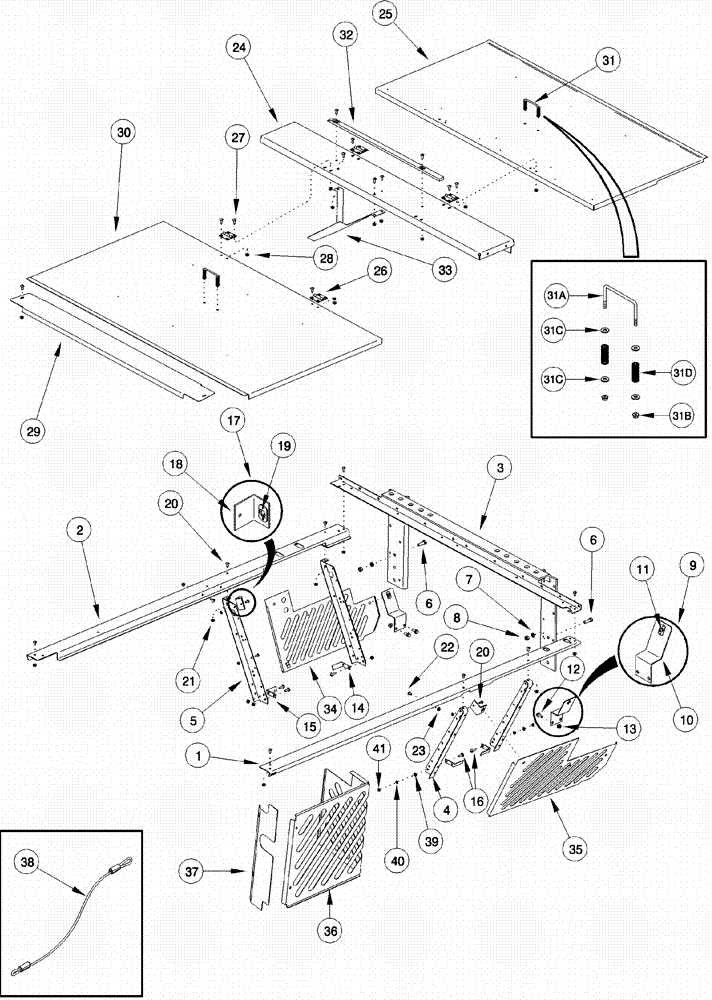

Запчасти Case IH 620 (09F-02) - FRONT DECK - ACCESS DOORS AND FAN SHIELDS (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
298059A1
SUPPORT
Right Hand
1шт.
2
412710A3
SUPPORT
Left Hand
1шт.
3
1990376C3
SUPPORT
Basket
1шт.
4
87319430
BRACKET
Screen Support, Right Hand
2шт.
5
1345113C2
SUPPORT
Screen Support, Left Hand
2шт.
6
413-824
BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5
6шт.
7
80679
LOCK WASHER,1/20.507 CST ZND
6шт.
8
425-108
NUT,1/2" - 13, Gr 5
6шт.
9
414872A1
BRACKET
Fan Shield, Lower Front, Inc. 10, 11
2шт.
10
414873A1
BRACKET
1шт.
11
1326406C1
PEDESTAL
Shield Fastener
1шт.
12
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
4шт.
13
231-5146
FLANGE NUT,3/8"-16
4шт.
14
177559A1
SUPPORT
Fan Shield, Front Left Hand Side, Rear Right Hand Side
2шт.
15
177560A1
SUPPORT
Fan Shield, Front Left Hand Side, Rear Right Hand Side
2шт.
16
477-73116
SERRATED SCREW,Truss HD, 5/16" - 18 x 1"
8шт.
17
414874A1
BRACKET
Fan Shield, Upper Rear, Inc. 18, 19
2шт.
18
414875A1
BRACKET
1шт.
19
1326406C1
PEDESTAL
1шт.
20
477-82512
SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 3/4"
6шт.
22
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
1шт.
23
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
1шт.
24
323826A1
CHANNEL
Hinge Support
1шт.
25
372153A1
DOOR ASSY.
Fan Access
1шт.
26
215720C1
HINGE
1шт.
27
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
16шт.
28
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
16шт.
29
302639A1
CHANNEL
Hinge Support
1шт.
30
1988797C2
GUARD
Radiator Access
1шт.
31
87408511
HANDLE
Inc. 31A - 31D
2шт.
31a
87408512
HANDLE
1шт.
31b
231-5344
FLANGE NUT,Flg, 1/4"-20
2шт.
31c
495-21031
WASHER,1/4"
4шт.
31d
87408513
SPRING
2шт.
32
429207A1
GUIDE
Chain
2шт.
33
372170A1
DEFLECTOR
Trash
1шт.
34
411837A3
PLATE ASSY.
Fan Shield, Left Hand
1шт.
35
411838A3
PLATE ASSY.
Fan Shield, Right Hand
1шт.
36
87434313
SHIELD
Fan, Right Hand
1шт.
37
394803A3
PANEL
Heat Shield
1шт.
38
126840A1
CABLE
Shield Anchor (If Equipped)
1шт.
39
495-11034
WASHER,5/16", SAE
8шт.
41
425-105
NUT,5/16"-18, G5
8шт.
