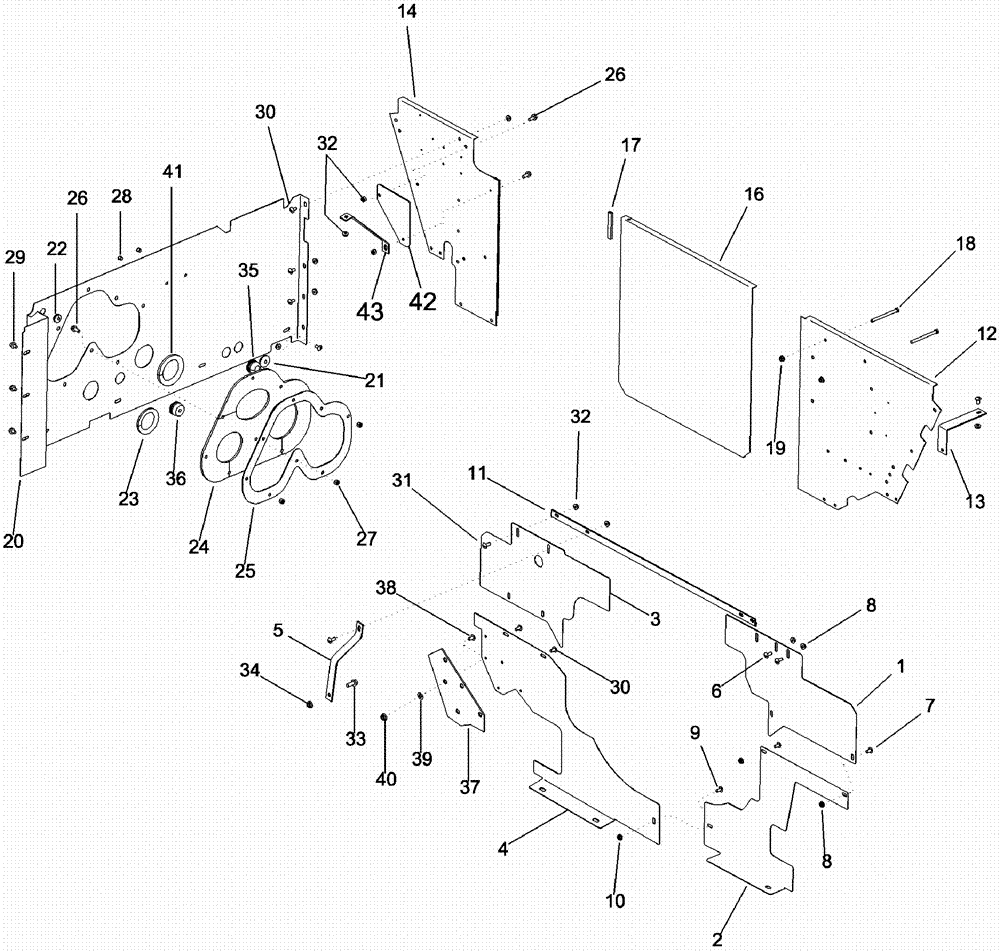

Запчасти Case IH 620 (09F-01) - FRONT DECK - SHIELDS, ENGINE AND RADIATOR (12) - CHASSIS
№
Артикул
Название
Примечание
Количество
1
407925A1
SHIELD
Trash, Right Hand Front, Upper
1шт.
2
87345249
SHIELD
Trash, Right Hand Front, Lower
1шт.
3
334915A2
SHIELD
Trash, Left Hand Front, Upper
1шт.
4
87563143
SHIELD
Trash, Left Hand Front Lower
1шт.
5
416429A1
STRAP
Left Hand
1шт.
6
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
7
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
8
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
4шт.
9
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
4шт.
10
231-5146
FLANGE NUT,3/8"-16
4шт.
11
1982302C4
SUPPORT
1шт.
12
87416020
PANEL ASSY.
Right Hand
1шт.
13
1982345C3
STRAP
Right Hand
1шт.
14
87416019
PANEL ASSY.
Left Hand
1шт.
16
131623A1
SHEET
Center
11шт.
17
195510A1
PROTECTION STRIP
91 mm (3-5/8 in), Cut From 1977224CX
1шт.
18
113-197
BOLT,Hex, 5/16" - 18 x 4", Gr 2, Full Thd
2шт.
19
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
2шт.
20
302824A1
COVER
Engine Compartment, Left Hand
1шт.
21
1321767C1
GROMMET
3/8 ID
1шт.
22
248-2368
GROMMET,5/16" ID x 3/4" Groove Dia, Str Cut
1шт.
23
1982349C3
GASKET
183 mm (7-1/4 in), Cut From 1977224CX
1шт.
24
302826A2
RUBBER SEAL
1шт.
25
334741A1
SEALING RING
SEALRING
1шт.
26
409-7512
BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl
10шт.
27
231-1445
NUT,5/16"-18, GB
8шт.
28
205-80
HOLE PLUG BUTTON,11/32"
2шт.
29
256873
BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd
3шт.
30
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
31
477-73112
SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 3/4"
2шт.
32
231-5145
SERRATED NUT,Flg, USR, 5/16"-18
7шт.
33
409-7616
BOLT,Hex Flg, 3/8" - 16 x 1", Spcl
1шт.
34
231-5146
FLANGE NUT,3/8"-16
1шт.
35
86976974
GROMMET,19.05mm ID x 41.1mm OD x 26.9mm Thk
3/4 ID
1шт.
36
198823C1
GROMMET,9.53mm ID x 41.1mm OD x 26.9mm Thk
3/8 ID
1шт.
37
87426313
RUBBER
Flap, Trash Shield
1шт.
38
409-7412
BOLT,Hex Flg, 1/4" - 20 x 3/4", Spcl
5шт.
39
495-81006
WASHER,6.76mm ID x 19.05mm OD x 1.7mm Thk
5шт.
40
231-1444
NUT,1/4"-20, GB
5шт.
41
1345190C1
ORNAMENTAL STRIP
1шт.
42
87703133
PLATE
Engine Divider Panel
1шт.
43
87703134
BRACE
Engine Divider Panel
1шт.
Выбрано товаров: 42
