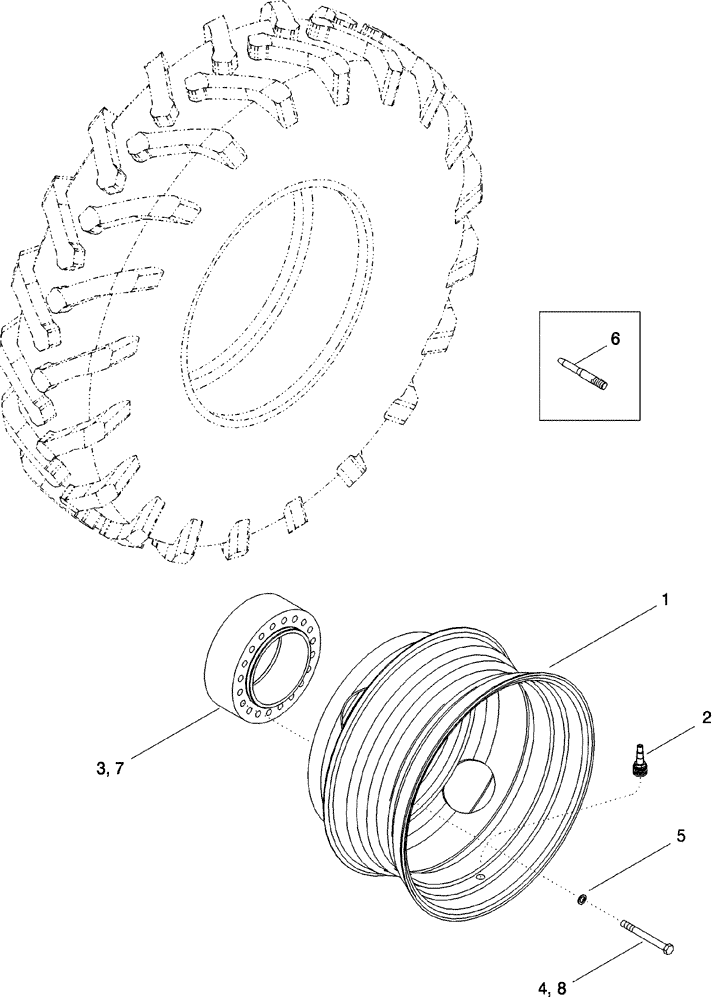

Запчасти Case IH 620 (06-20) - WHEELS, DRIVE (12) - CHASSIS

1

232749A2

WHEEL

32 x DW13

4шт.

2

179482C1

VALVE STEM

7/16 in dia

4шт.

3

87518979

SPACER

127 mm (5 in)

2шт.

Used on 6 Row Wide and 4 Row Wide

1шт.

4

514-1228

BOLT,Hex, M20 x 1.5 x 200mm, Cl 10.9

40шт.

Used on 6 Row Wide and 4 Row Wide

1шт.

5

896-15020

WASHER,22mm ID x 44mm OD x 5mm Thk

30шт.

5

137339A2

WASHER,21mm ID x 33.5mm OD x 4mm Thk

20шт.

6

131443A1

BOLT,M20 x 1.5 x 210mm, Cl 8.8

Drive Wheel Starter

1шт.

7

87518976

SPACER

76 mm (3 in)

2шт.

Used on 6 Row Narrow

1шт.

8

514-1223

BOLT,Hex, M20 x 1.5 x 150mm, Cl 10.9

40шт.

Used on 6 Row Narrow

1шт.
