Запчасти Case IH 620 (09E-14) - HEATER / AIR CONDITIONING - PRESSURIZER BLOWER AND AIR FILTER MOUNTING (10) - CAB & AIR CONDITIONING

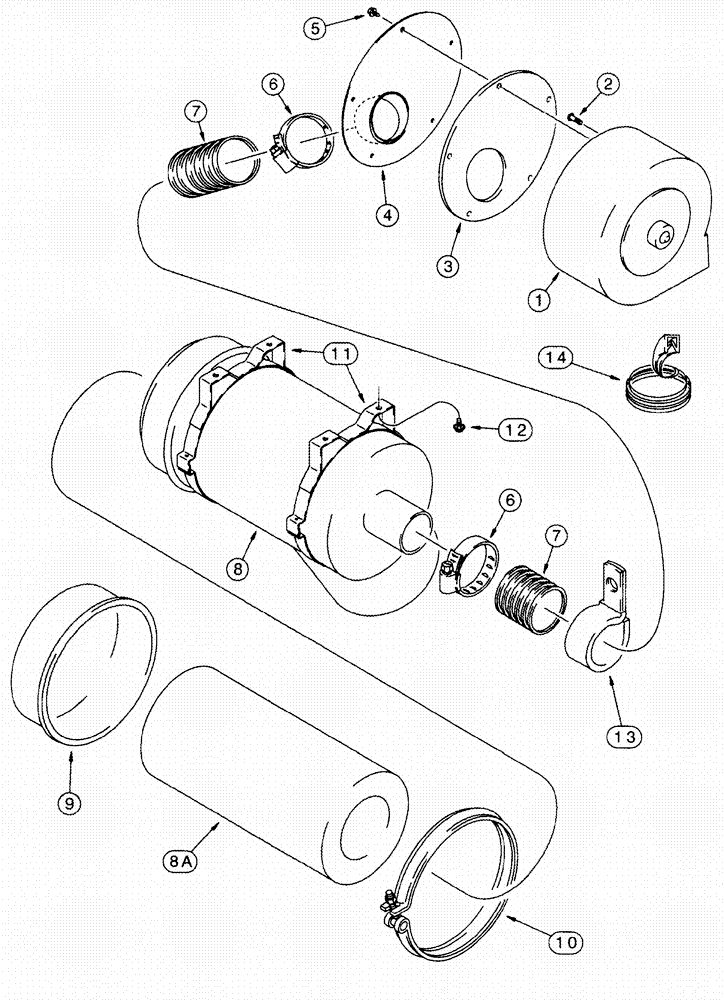

Схема запчастей Case IH 620 - (09E-14) - HEATER / AIR CONDITIONING - PRESSURIZER BLOWER AND AIR FILTER MOUNTING (10) - CAB & AIR CONDITIONING
8
6
1
3
10
13
7
4
7
12
8a
6
9
5
11
2
14

Артикул

Название

Примечание

Количество

1

87107380

BLOWER

Cab Pressurizer

1шт.

2

840-1516

SCREW,Pan, M5 x 16mm, Cl 4.8

5шт.

3

252676A1

GASKET,5mm Thk

1шт.

4

253213A1

COVER

1шт.

5

191216A1

SELF-TAP SCREW,Hex Wash Hd, #10-24 x 5/8"

5шт.

6

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

7

380525A1

HOSE,65.5mm ID x 1128mm L

1шт.

8

279444A1

FILTER

Air, Cab, Inc. 8A - 10

1шт.

8a

252640A1

FILTER

1шт.

9

247743A1

FILTER COVER

1шт.

10

R21391

CLAMP

1шт.

11

253117A1

CLAMP

Mounting, Inc. Hardware

2шт.

12

409-7516

BOLT,Hex Flg, 5/16" - 18 x 1", Spcl

4шт.

13

240450A2

CLAMP

3 in dia

1шт.

14

135370A1

PROTECTION STRIP

193 mm (7-5/8 in), Cut From 1330108CX

1шт.

Выбрано товаров: 15
