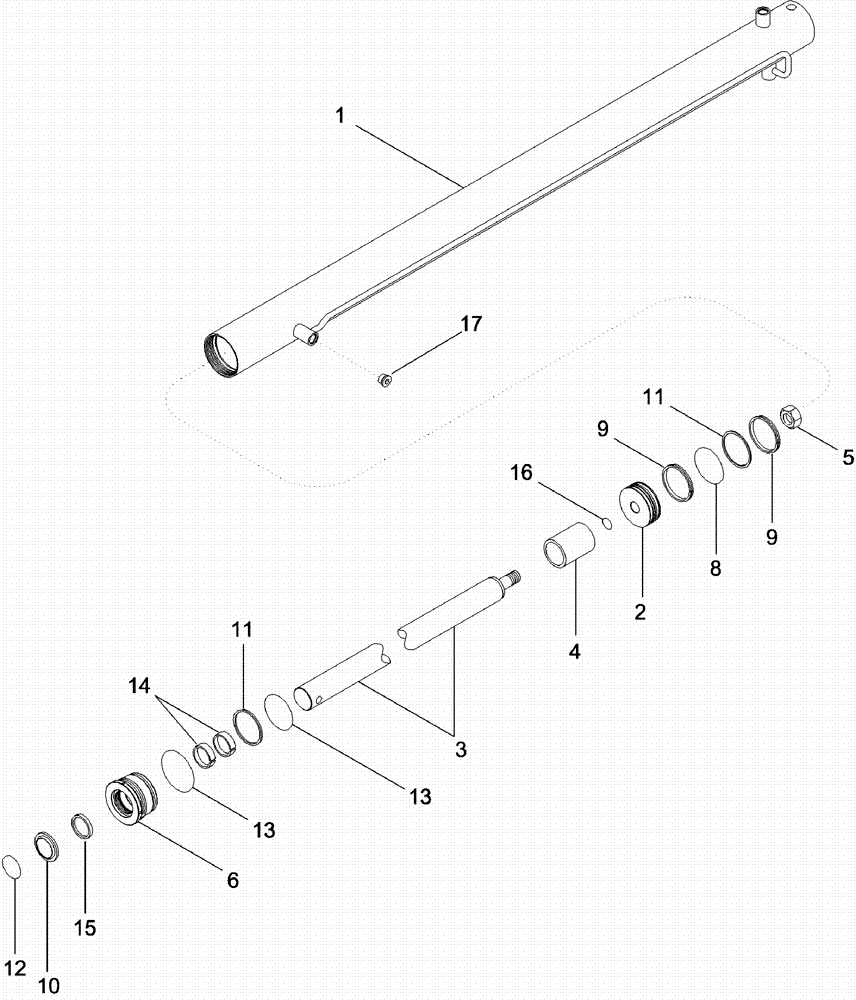

Запчасти Case IH 620 (08-33) - BASKET LIFT INTERMEDIATE CYLINDER ASSEMBLY (07) - HYDRAULICS

87272669

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 1828.8mm Stroke

Basket LIft, Intermediate, Inc. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON

1шт.

3

87385486

ROD

1шт.

4

NSS

NOT SOLD SEPARAT

SPACER

1шт.

5

NSS

NOT SOLD SEPARAT

LOCKNUT

1шт.

6

NSS

NOT SOLD SEPARAT

HEAD

1шт.

7

NSS

NOT SOLD SEPARAT

PLUG

3шт.

87384984

SEAL KIT

Kit, Inc. 8 - 17

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

10

NSS

NOT SOLD SEPARAT

PISTION SEAL

1шт.

11

NSS

NOT SOLD SEPARAT

BACK-UP WASHER

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

WEAR RING

2шт.

15

NSS

NOT SOLD SEPARAT

ROD SEAL LOADED

1шт.

16

NSS

NOT SOLD SEPARAT

CANNED ROD WIPER

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING

1шт.
