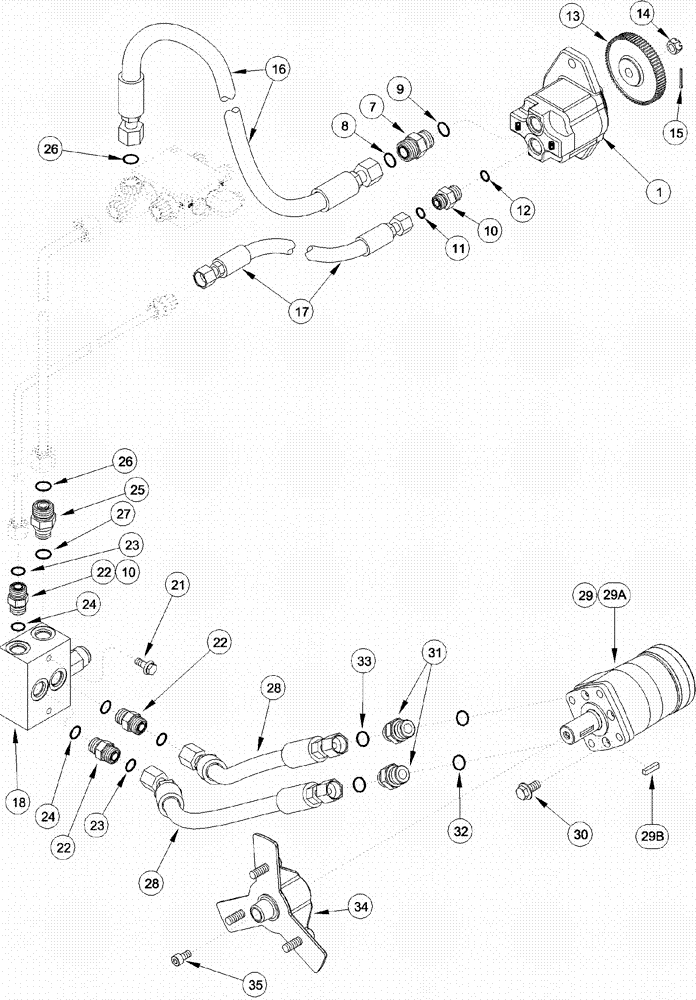

Запчасти Case IH 620 (08-24) - ROTARY AIR SCREEN HYDRAULIC SYSTEM (07) - HYDRAULICS

1

87453065

PUMP, HYDRAULIC,8 CC

Air Screen

1шт.

1

87453065R

REMAN-HYD PUMP

620 CASE IH COTTON EXPRESS COTTON PICKER, Air Screen (9/06-)

1шт.

1

87453065C

CORE-HYDRAULIC PUMP

Return Number

1шт.

7

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 8, 9

1шт.

8

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

201-112

HYD CONNECTOR,13/16" - 16 Male ORFS x 7/8" - 14 Male ORB

Inc. 11, 12

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

13

J924186

GEAR

1шт.

14

425-138

SLOTTED NUT,1/2"-20, G8

1шт.

15

432-616

COTTER PIN,3/32" x 1"

1шт.

16

407819A1

HOSE

635 mm (25 in), Pressure

1шт.

17

407820A1

HOSE

572 mm (22-1/2 in), Suction

1шт.

18

327580A1

BY-PASS VALVE

Inc. 19

1шт.

19

295942A1

VALVE PRESSURE RELIE,3/4" - 14

Inc. 20 (Not Shown)

1шт.

20

1542831C1

SEAL KIT

(Not Shown)

1шт.

21

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

22

201-102

HYD CONNECTOR,13/16" - 16 Male ORFS x 3/4" - 16 Male ORB

Inc. 23, 24

3шт.

23

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

24

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

25

201-115

HYD CONNECTOR,1" - 14 Male ORFS x 3/4" - 16 Male ORB

Inc. 26, 27

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

27

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

28

353667A1

HOSE

645 mm (25-3/8 in)

2шт.

29

401198A1

MOTOR, HYDRAULIC,GEAR, 97 CC

Rotary Air Screen, Service With 29A

1шт.

29a

1542724C1

SEAL KIT

And O-Ring, (Not Shown)

1шт.

29b

906093R1

KEY,M8 x 7 x 32, Par

1шт.

30

87021006

BOLT,M10 x 26.4mm, Cl 10.9

4шт.

31

700-162

HYD CONNECTOR,13/16" - 16 Male ORFS x M22 x 1.5 Male ORB

Inc. 32,33

2шт.

32

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

34

396942A2

HUB

1шт.

35

864-8016

HEX SOC SCREW,M8 x 16mm, Cl 8.8

1шт.
