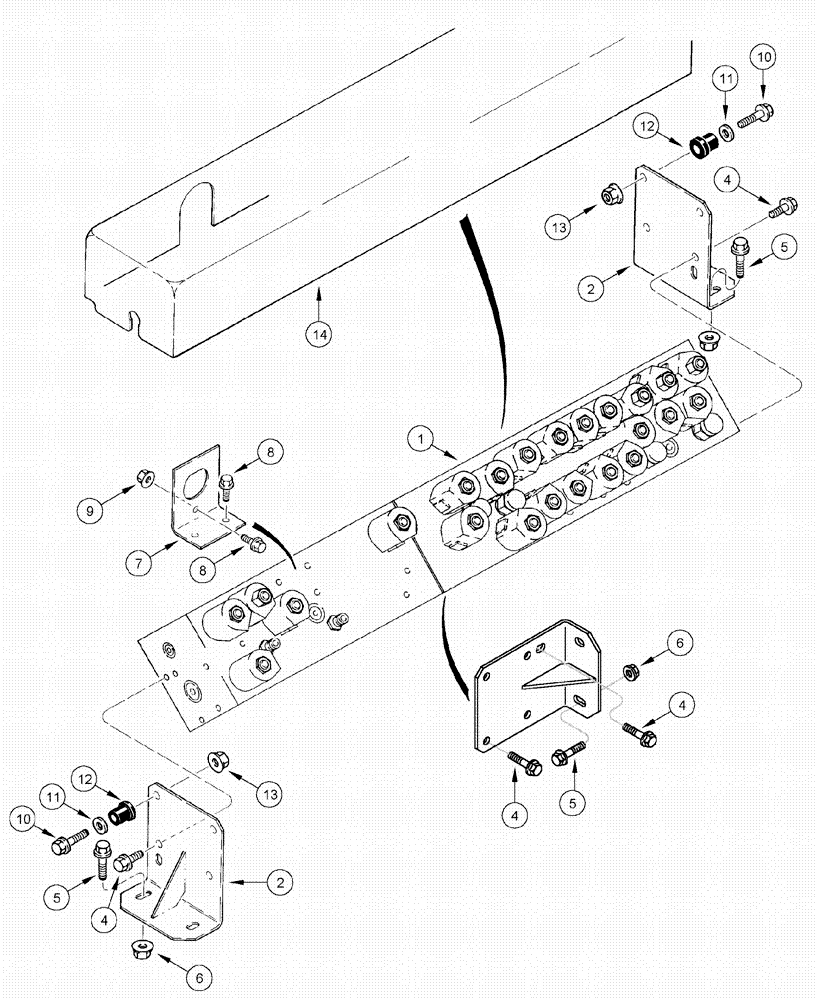

Запчасти Case IH 620 (08-21) - MANIFOLD VALVE AND MOUNTING (07) - HYDRAULICS

1

87445254

MANIFOLD VALVE

1шт.

See Figure 08-22

1шт.

2

1546044C2

SUPPORT

3шт.

4

409-7612

BOLT,3/8"-16 x 1.09" OAL

5шт.

5

409-7620

BOLT,Hex Flg, 3/8" - 16 x 1 1/4", Spcl

5шт.

6

231-5146

FLANGE NUT,3/8"-16

5шт.

7

1546366C1

SUPPORT

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

9

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

3шт.

10

409-7624

BOLT,Hex Flg, 3/8" - 16 x 1 1/2", Spcl

2шт.

11

495-71041

WASHER,10.31mm ID x 31.75mm OD x 2.54mm Thk

2шт.

12

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

2шт.

13

231-5146

FLANGE NUT,3/8"-16

2шт.

14

1990328C2

COVER

1шт.

15

1546129C1

DECAL

Solenoid/Flow Control Location Chart, (Not Shown)

1шт.

See Figure 09F-12

1шт.
