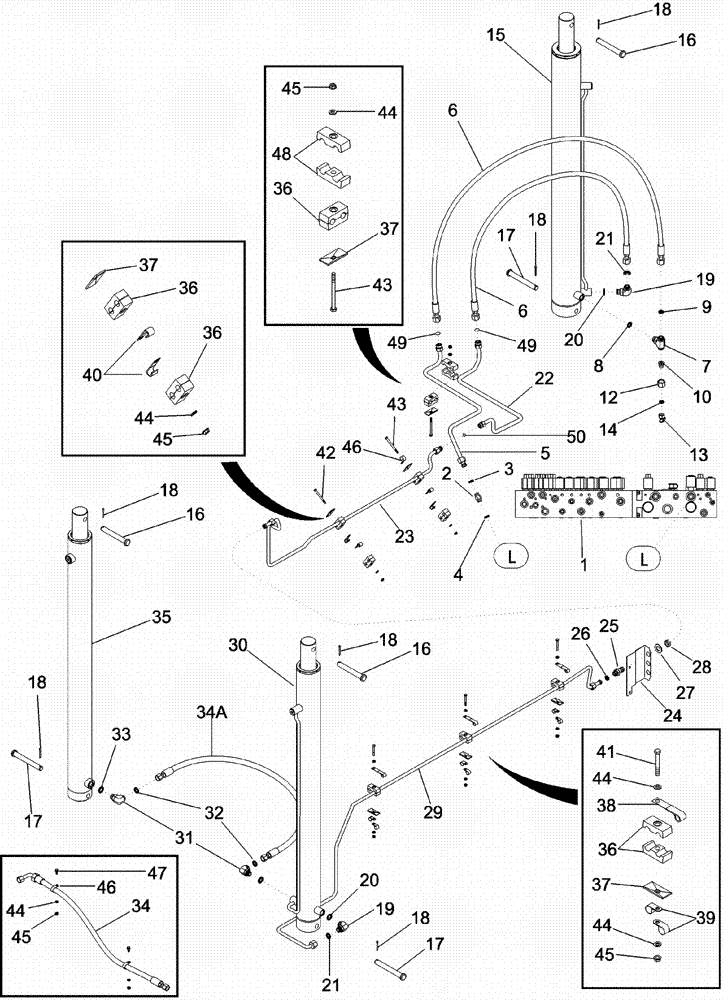

Запчасти Case IH 620 (08-16) - BASKET LIFT CYLINDER SYSTEM (07) - HYDRAULICS

1

87445254

MANIFOLD VALVE

1шт.

See Figure 08-22

1шт.

2

201-104

HYD CONNECTOR,1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 3, 4

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

5

1988927C1

TUBE

Basket Lift, Front

1шт.

6

1988956C1

HOSE,15.88mm ID x 825mm L

825 mm (32-1/2 in), Basket Lift, Master

2шт.

7

201-424

TEE,1 3/16"-12 x 1 1/16"-12 Run, ORFS

Inc. 8, 9

1шт.

8

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

9

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

10

201-143

REDUCER,11/16"-16 Male x 1 3/16"-16 Fem, ORFS

1шт.

12

203-904

TUBE NUT,1 3/16"-12 ORFS

1шт.

13

190316A1

COUPLING

Diagnostic Port, Inc. 14

1шт.

14

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

1шт.

15

87272668

Basket Lift, Fron

1шт.

See Figure 08-36

1шт.

16

296753A1

PIN,25.4mm OD x 196mm L

1 x 7-21/64 in

2шт.

17

296755A1

PIN,25.4mm OD x 212mm L

1 x 8 in

1шт.

18

432-1628

COTTER PIN,1/4" x 1 3/4"

6шт.

19

201-307

ELBOW,90 Degree Elbow, 1-3/16" - 12 Male ORFS x 1-1/16" - 12 Male ORB

Inc. 20, 21

2шт.

20

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

389613A1

TUBE

Basket Lift, Supply Front

1шт.

23

389610A2

TUBE

Basket Lift, Middle Supply

1шт.

24

406285A1

SUPPORT

Right Hand

1шт.

25

201-123

HYD CONNECTOR,1"-14, Blkhd, ORFS

Inc. 26

1шт.

26

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

27

495-11106

WASHER,1", SAE

1шт.

28

201-919

BHD LOCK NUT,1" - 14

1шт.

29

87378323

HYD TUBE,.625" OD

Basket Lift, Rear Supply

1шт.

30

87272669

HYDRAULIC CYLINDER,Double Acting, 63.5mm Rod, 1828.8mm Stroke

Basket Lift, Intermediate

1шт.

See Figure 08-38

1шт.

31

201-341

ELBOW,90 Degree, 1"-14 x 1 1/16"-12, Adj, ORFS

Inc. 32, 33

2шт.

32

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.

33

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

34

87413220

HOSE

2190 mm (88-1/4 in)

1шт.

35

87272670

Basket Lift, Slave

1шт.

See Figure 08-40

1шт.

36

1546026C1

CLAMP

8шт.

37

1347127C1

PLATE

6шт.

38

362126R1

CLIP

3шт.

39

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

6шт.

40

362123R1

CLIP

4шт.

41

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

3шт.

42

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

43

413-564

BOLT,Hex, 5/16" - 18 x 4", Gr 5

6шт.

44

495-11034

WASHER,5/16", SAE

10шт.

45

425-285

FLANGE NUT,Flg, 5/16"-18, G5

7шт.

46

515-22254

CLAMP,1", Insul, 5/16" Bolt

3шт.

47

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

48

1546027C1

CLAMP

1шт.

49

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

2шт.

50

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

1шт.
