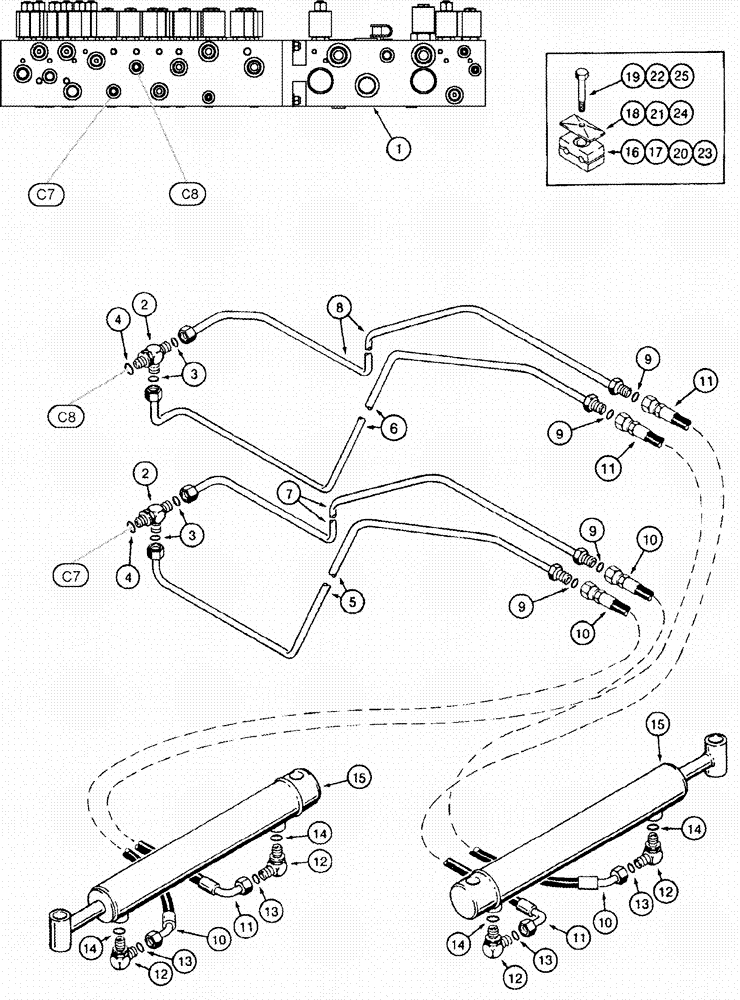

Запчасти Case IH 620 (08-15) - DRUM SERVICE CLOSE AND SPREAD SYSTEM (07) - HYDRAULICS

1

87445254

MANIFOLD VALVE

1шт.

See Figure 08-22

1шт.

2

201-406

TEE,11/16"-16 x 9/16"-18 Run, ORFS

Incl 3, 4

2шт.

3

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

1988932C2

PIPE

Right Hand, Drum Close

1шт.

6

1988933C2

TUBE

Right Hand, Drum Spread

1шт.

7

1988934C2

PIPE

Left Hand, Drum Close

1шт.

8

1988935C2

PIPE

Left Hand, Drum Spread

1шт.

9

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

4шт.

10

87440385

HOSE

1575 mm (62 in), Drum Close

2шт.

11

1984282C2

HOSE

1450 mm (57 in), Drum Spread

2шт.

12

201-101

HYD CONNECTOR,11/16" - 16 Male ORFS x 9/16" - 18 Male ORB

Incl 13, 14A

4шт.

13

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

87272673

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 374.9mm Stroke

Service Spread

2шт.

See Figure 08-34

1шт.

16

1546025C1

CLAMP

2 Piece

2шт.

17

1546024C1

CLAMP

2 Piece

2шт.

18

1347127C1

PLATE

2шт.

19

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

20

1546024C1

CLAMP

2 Piece

4шт.

21

1347127C1

PLATE

2шт.

22

413-522

BOLT,Hex, 5/16" - 18 x 1-3/8", Gr 5

2шт.

23

1546026C1

CLAMP

2шт.

24

1347127C1

PLATE

2шт.

25

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

2шт.
