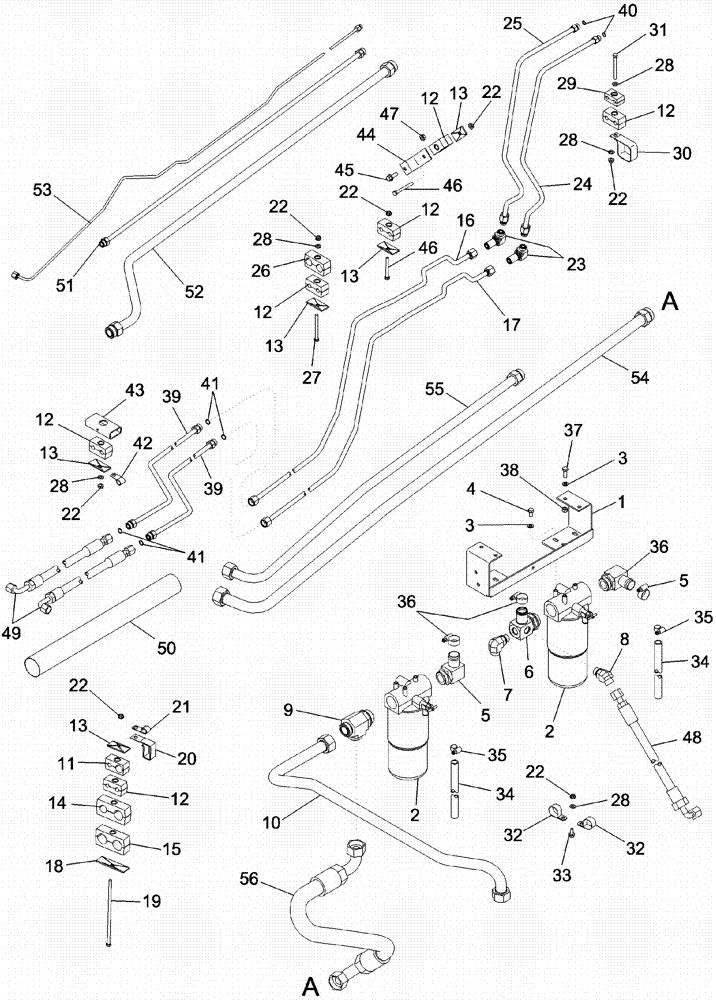

Запчасти Case IH 620 (08-03) - HYDRAULIC FILTERS (07) - HYDRAULICS

1

300278A1

BRACKET

Hydraulic Filters

1шт.

2

87784C92

HYDRAULIC OIL FILTER

Return With Drain Valve

2шт.

See Figure 08-02B

1шт.

3

492-11038

LOCK WASHER,3/8"

10шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

6шт.

5

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

2шт.

6

198617A2

ELBOW

1шт.

7

201-306

90 ELBOW,90 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

8

201-316

ELBOW,45 Degree Elbow, 1" - 14 Male ORFS x 7/8" - 14 Male ORB

1шт.

9

201-414

TEE,1 11/16"-12 x 1 5/8"-12 Run, ORFS

1шт.

10

87314778

HYD TUBE,1.25" OD

Filter Return

1шт.

11

87000141

CLAMP

3шт.

12

1546025C1

CLAMP

8шт.

13

1347127C1

PLATE

Hose Clamp

7шт.

14

87000158

CLAMP

3шт.

15

87000920

CLAMP

3шт.

16

429562A1

TUBE

Steering Left Hand Middle

1шт.

17

429563A1

TUBE

Steering Right Hand Middle

1шт.

18

1324469C1

PLATE

Hose Clamp

3шт.

19

413-5144

BOLT,Hex, 5/16" - 18 x 9", Gr 5

3шт.

20

102251A1

CLIP

Harness

3шт.

21

362123R1

CLIP

Cable Harness

3шт.

22

425-285

FLANGE NUT,Flg, 5/16"-18, G5

9шт.

23

201-301

ELBOW,90 Degree Elbow, 13/16" - 16 Male ORFS x 13/16" - 16 Male ORFS

2шт.

24

87516520

HYD TUBE,0.5" OD

1шт.

25

87516519

HYD TUBE,0.5" OD

1шт.

26

1546028C1

CLAMP,25.4mm ID x 82mm L

1шт.

27

413-556

BOLT,Hex, 5/16" - 18 x 3-1/2", Gr 5

1шт.

28

495-11034

WASHER,5/16", SAE

5шт.

29

1546024C1

CLAMP

1шт.

30

1301387C2

CLIP

1шт.

31

413-552

BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5

1шт.

32

515-23317

CLAMP,31.75mm ID, 10.3mm Bolt Hole, P Type

2шт.

33

458-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

34

129096A1

HOSE

735 mm (28.94 in)

2шт.

35

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

36

214-3232

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm, W/ Liner

3шт.

37

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

38

425-106

NUT,3/8"-16, Cl 5

4шт.

39

429572A1

TUBE

Steering Rear

2шт.

40

238-6012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

41

238-6014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

42

516-23127

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

43

142025A1

TUBE,100 mm Length

Horizontal Pin Lever

1шт.

44

196517C1

SUPPORT TUBE

Fuel Line Tubes

1шт.

45

458-616

BOLT,Hex Flg, 3/8" - 16 x 1", Gr 5

1шт.

46

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

47

425-286

FLANGE NUT,Flg, 3/8"-16, G5

1шт.

48

87396981

HOSE ASSY.

Brake Drain

1шт.

49

87396998

HOSE ASSY.

Steering Cylinder

2шт.

50

S120426

TUBE

2шт.

51

87524403

HYD TUBE,12.7 mm OD x 1330 mm L

Air Screen Supply Frame

1шт.

52

87522798

HYD TUBE,1" OD

PGA Motor Return Left Hand Frame

1шт.

53

87522793

HYD TUBE,0.25" OD

Compactor Valve Sense Frame

1шт.

54

87522790

HYD TUBE,1.25" OD

Compactor Valve Return Frame

1шт.

55

87637929

TUBE,25.4 mm OD x 1415.1 mm L

Compactor Valve Pressure

1шт.

56

87523769

HOSE ASSY.

Compactor Valve Return Jump Front

1шт.
