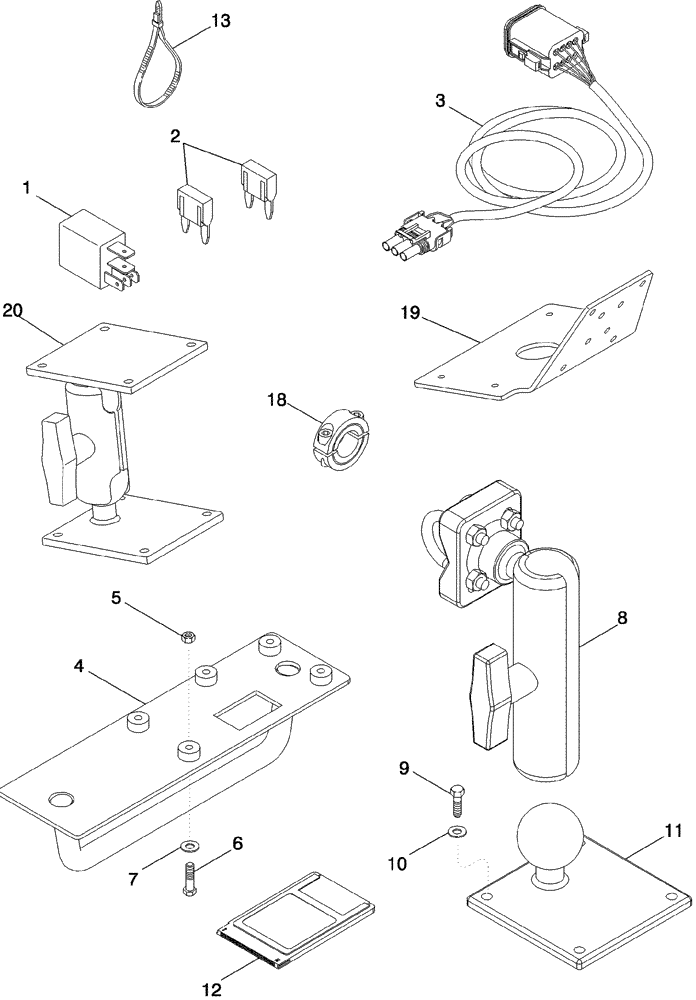

Запчасти Case IH 620 (04-34) - AFS YIELD MONITOR INTERFACE UNIT PACKAGE (06) - ELECTRICAL SYSTEMS

1

105849A1

RELAY

20 amp, Continuous Duty

1шт.

2

121412A1

FUSE,10A, Mini, Red

2шт.

2

121410A1

FUSE,5A, Mini, Tan

1шт.

3

87594864

WIRE HARNESS

Cotton Drum Height Jumper

1шт.

4

87387000

BRACKET

, Serial Range: -Y8T013501

1шт.

5

131-893

CLIP,#10 - 24

2шт.

6

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

4шт.

7

87613177

WASHER,0.22" ID x 0.44" OD x 0.05" Thk

4шт.

8

87386396

MOUNT

Mount Color Display, Inc. 11, Serial Range: -Y8T013501

1шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

, Serial Range: -Y8T013501

4шт.

9

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

, Start Serial: Y8T013501

8шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Serial Range: -Y8T013501

4шт.

10

86588450

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

, Start Serial: Y8T013501

8шт.

11

87386398

SUPPORTING ARM

Ram Square Mount

1шт.

12

87600867

128 MB Compact Flash With Adapter

1шт.

13

473321C1

CABLE TIE,8" OAL x 0.098" W

CABLE STRAP

12шт.

14

435831A1

FASTENER

Velcro (Not Shown)

1шт.

15

87606511

CIH Desktop, V7 DC, (Not Shown)

1шт.

16

NSS

NOT SOLD SEPARAT

MANUAL, Cotton Yield Montor, (Not Shown)

1шт.

17

87607393

OPERATOR MANUAL EN

AFS Pro 600 Display, (Not Shown)

1шт.

18

87602486

COLLAR

Monitor Bracket, Serial Range: -Y8T013501

1шт.

19

87621924

BRACKET

Display Mounting, Start Serial: Y8T013501

1шт.

20

87645133

BRACKET

Mount Color Display, Inc. 11, Start Serial: Y8T013501

1шт.
