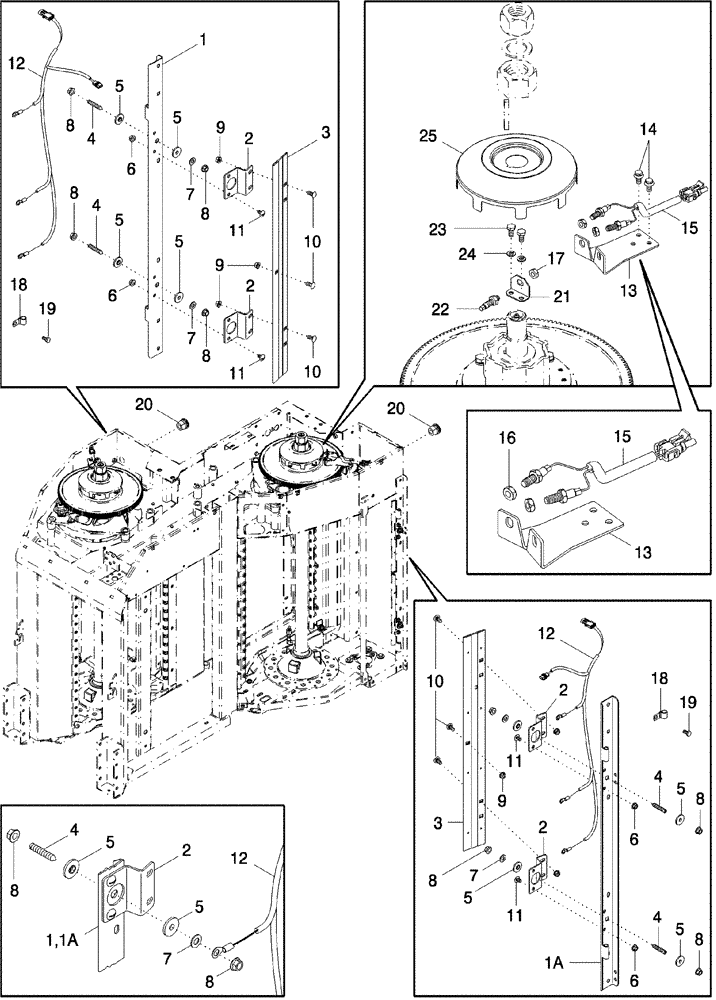

Запчасти Case IH 620 (04-28) - ROTOR HARNESS, ROTOR AND CHOKE SENSORS (06) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

HINGE ASSEMBLY, Front Doffer Post With Flap, Inc. 1 - 12

1шт.

REF

INSTRUCTION

HINGE ASSEMBLY, Rear Doffer Post With Flap, Inc. 1A - 12

1шт.

1

87428990

HINGE

Doffer Post, Front

1шт.

1a

87429014

HINGE

Doffer Post, Rear

1шт.

2

87402402

SUPPORT

Choke Monitor Mount

2шт.

3

87421137

BRACKET

1шт.

4

87402405

POST

2шт.

5

87458343

WASHER

Nylon Shoulder

4шт.

6

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

2шт.

8

231-5146

FLANGE NUT,3/8"-16

4шт.

9

231-5345

FLANGE NUT,Flg, 5/16"-18

5шт.

10

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5шт.

11

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

4шт.

12

87448799

HARNESS

Rotor

2шт.

13

87424379

BRACKET

Rotor Speed Sensor

2шт.

14

409-748

BOLT,Hex Flg, 1/4" - 20 x 1/2", Spcl

4шт.

15

87326704

SENSOR

Reed Switch Drum Rotor, Inc. 16

2шт.

16

87328624

JAM NUT

Jam, Stainless Steel

4шт.

17

87446500

NUT

NUT

4шт.

18

515-2179

CLAMP,5/16", Insul, 1/4" Bolt

1шт.

19

276-1478

SELF-TAP SCREW,Hex Hd, 1/4" x 1/2"

1шт.

20

195804C1

GROMMET

2шт.

21

87424377

SUPPORT

Rotor Speed Sensor

2шт.

22

87426499

MAGNET

Magnet, Rotor Monitor

2шт.

See Figure 09A-19

1шт.

23

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

4шт.

24

492-11025

LOCK WASHER,1/4"

4шт.

25

87424376

CAP

Drum Clutch Speed Sensor

2шт.
