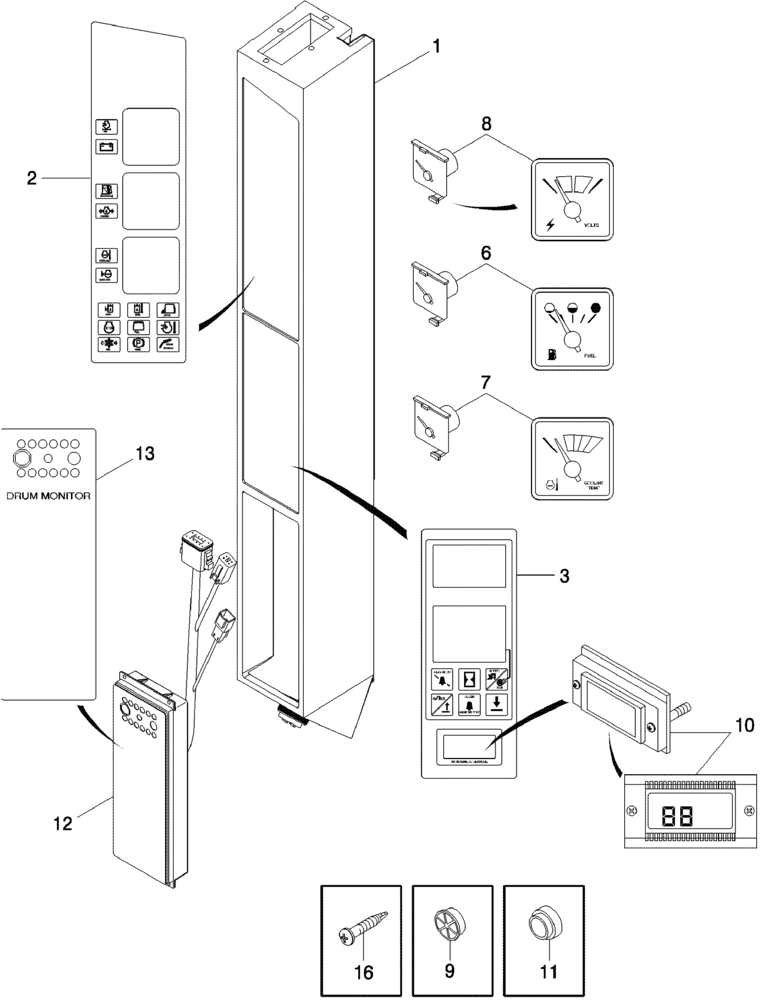

Запчасти Case IH 620 (04-27) - INSTRUMENT PANEL ASSY (06) - ELECTRICAL SYSTEMS

1

87446833

TOWER

Inc. 1 - 11, Serial Range: -Y8T013501

1шт.

1

87732340

TOWER

Inc. 1 - 11, Start Serial: Y8T013501

1шт.

1

84522289

DISPLAY

1шт.

2

418769A1

DECAL

Guage and Warning

1шт.

3

123720A1

DECAL

Keypad

1шт.

4

A48888

BULB

Panel Display, (Not Shown)

1шт.

5

121615A1

LAMP SOCKET

Inc. Bulb, (Not Shown)

1шт.

6

142825A1

FUEL GAUGE

1шт.

7

142824A1

GAUGE

Coolant Temperature

1шт.

8

142828A1

VOLTMETER

1шт.

9

195359A1

SHUTTER

Audible Warning Alarm

1шт.

10

123715A1

DISPLAY

Moistener Pressure

1шт.

11

1546441C1

BUZZER

Audible

1шт.

12

87421944

DRUM

Cotton Display, Inc. 13

1шт.

13

87424836

DECAL

Drum Monitor

1шт.

14

121615A1

LAMP SOCKET

Inc. Bulb, (Not Shown)

1шт.

15

R53000

GROMMET

(Not Shown)

2шт.

16

260-13524

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1-1/2"

2шт.
