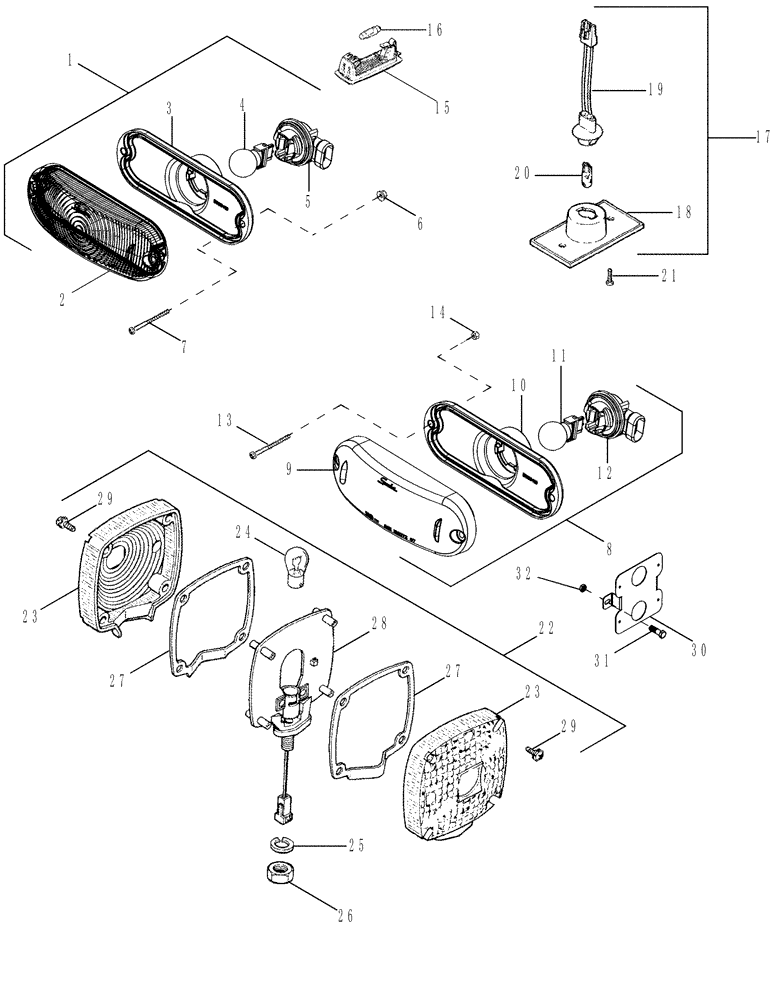

Запчасти Case IH 620 (04-24A) - LAMP ASSEMBLIES - WARNING, STOP-TAIL, DOME AND CONSOLE - MODEL YEAR 2009 AND AFTER (06) - ELECTRICAL SYSTEMS

1

87629587

LIGHT ASSY.,12V, 27W, Amber

Rear Warning, Inc. 2 - 5

2шт.

2

NSS

NOT SOLD SEPARAT

LENS, Amber

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

4

87642985

BULB,3157, 12V, 26.5W, Clear

1шт.

5

87642986

LAMP SOCKET

1шт.

6

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

7

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

4шт.

8

87627854

LIGHT ASSY.,12V, 27W, Red

Stop-Tail, Inc. 9 - 12

2шт.

9

NSS

NOT SOLD SEPARAT

LENS, Red

1шт.

10

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

11

87642985

BULB,3157, 12V, 26.5W, Clear

1шт.

12

87642986

LAMP SOCKET

1шт.

13

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

4шт.

14

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

15

429726A1

COURTESY LIGHT

DOME LIGHT Inc. 16

2шт.

16

E35556

BULB,12V, 10W

1шт.

17

83882C91

LAMP

Console, Inc. 18 - 20

1шт.

18

NSS

NOT SOLD SEPARAT

LENS, Order 83882C91

1шт.

19

107329C1

WIRE HARNESS

1шт.

20

D71346

TAIL LAMP,12V

No. 168

1шт.

21

440-10812

SCREW,Cross Pan Hd, #8-32 x 3/4"

2шт.

22

83885C91

LAMP

Warning, Drum Side, Inc. 23-29, Order 192051A1

2шт.

22

192051A1

SERVICE KIT

Side Warning Lamp, Inc. 23 - 29, Connector And Instructions

2шт.

23

A44202

KIT

Amber Lens, Inc. 29

2шт.

24

A41264

BULB,#1156, 12V

2шт.

25

495-21056

WASHER,1/2"

1шт.

26

425-108

NUT,1/2" - 13, Gr 5

1шт.

27

A43731

GASKET

Lens

2шт.

28

NSS

NOT SOLD SEPARAT

BODY

1шт.

29

NSS

NOT SOLD SEPARAT

SCREW

8шт.

30

84171679

BRACKET

Light Support

2шт.

31

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

32

231-5146

FLANGE NUT,3/8"-16

4шт.

33

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

(Not Shown)

8шт.

34

231-51409

SERRATED NUT,Flg, USR, #10-24

(Not Shown)

8шт.
