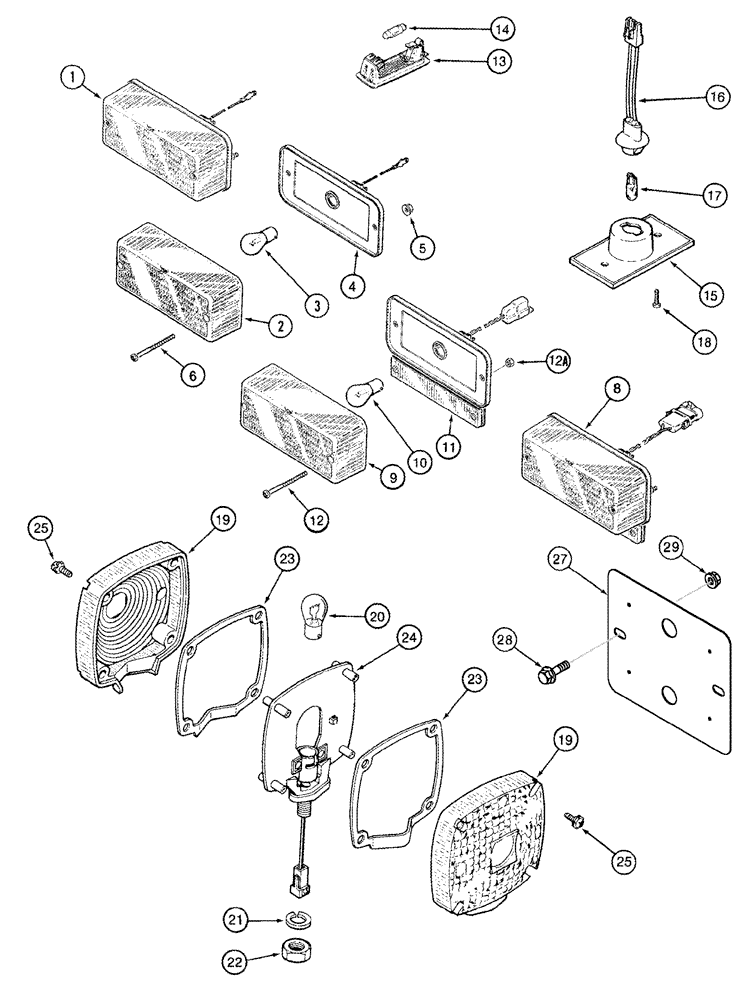

Запчасти Case IH 620 (04-24) - LAMP ASSEMBLIES - WARNING, STOP-TAIL, DOME AND CONSOLE - MODEL YEAR 2008 AND PRIOR (06) - ELECTRICAL SYSTEMS

1

107324C91

LAMP BASE

Warning, Rear, Inc. 2 - 4

2шт.

2

NSS

NOT SOLD SEPARAT

LENS, Amber

1шт.

3

A41264

BULB,#1156, 12V

1шт.

4

NSS

NOT SOLD SEPARAT

PLATE, Order 130882C91

1шт.

5

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

6

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.

8

92260C1

LAMP,12V, 27W, Red

Stop-Tail, Inc. 9 - 11

2шт.

9

216045C1

LENS

Red

1шт.

10

T34857

BULB,C6, #1157, 12.8V

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE, Order 92260C1

1шт.

12

440-11036

SCREW,Cross Pan Hd, #10-24 x 2 1/4"

4шт.

12a

231-51409

SERRATED NUT,Flg, USR, #10-24

4шт.

13

429726A1

COURTESY LIGHT

DOME LIGHT Inc. 14

2шт.

14

E35556

BULB,12V, 10W

1шт.

83882C91

LAMP

Console, Inc. 15- 17

1шт.

15

NSS

NOT SOLD SEPARAT

LENS, Order 83882C91

1шт.

16

107329C1

WIRE HARNESS

1шт.

17

D71346

TAIL LAMP,12V

No. 168

1шт.

18

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

2шт.

83885C91

LAMP

Warning, Drum, Side, Inc. 19 - 25, Order 192051A1

2шт.

192051A1

SERVICE KIT

Warning Lamp, Inc. 19 - 25, Connector and Instructions

1шт.

19

A44202

KIT

Amber Lens, Inc. 25

1шт.

20

A41264

BULB,#1156, 12V

2шт.

21

495-21056

WASHER,1/2"

1шт.

22

425-108

NUT,1/2" - 13, Gr 5

1шт.

23

A43731

GASKET

Lens

2шт.

24

NSS

NOT SOLD SEPARAT

BODY, Order 192051A1

1шт.

25

NSS

NOT SOLD SEPARAT

SCREW

8шт.

27

87409362

BRACKET

Light Support

2шт.

28

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

4шт.

29

231-5146

FLANGE NUT,3/8"-16

4шт.
