(04-22) - LAMP ASSY - DRIVE AND FLOOD - MODEL YEAR 2008 AND PRIOR

Запчасти Case IH 620 (04-22) - LAMP ASSY - DRIVE AND FLOOD - MODEL YEAR 2008 AND PRIOR (06) - ELECTRICAL SYSTEMS

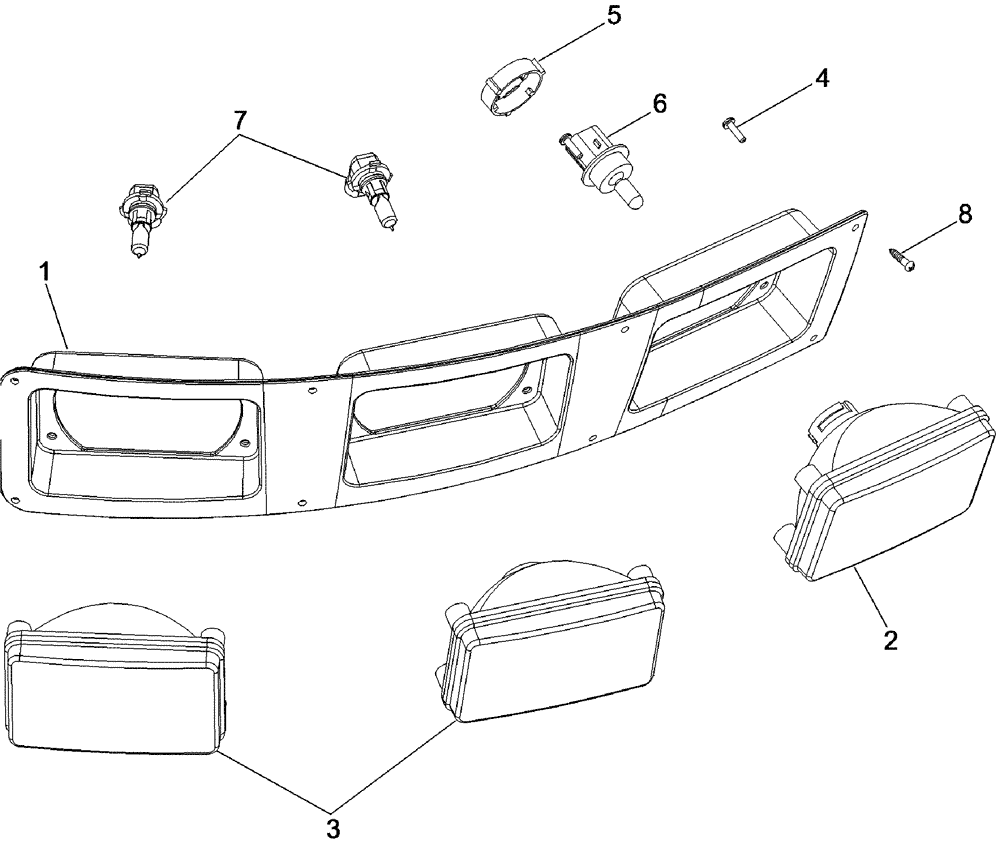

Схема запчастей Case IH 620 - (04-22) - LAMP ASSY - DRIVE AND FLOOD - MODEL YEAR 2008 AND PRIOR (06) - ELECTRICAL SYSTEMS
4
7
5
1
6
3
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

339704A1

BEZEL

Lamps, RH, Fixed, Shown

1шт.

1

339705A1

BEZEL

Lamps, LH, Fixed

1шт.

2

353656A1

HEADLIGHT

Trapezoidal

2шт.

3

87367623

LIGHT

Flood

4шт.

4

1327506C1

SELF-TAP SCREW,Cross Pan Hd, M4.8 x 19mm, Coated

24шт.

5

137825A1

RETAINER COLLAR

2шт.

6

388872A1

BULB

45W, 65W

2шт.

7

87106291

BULB

4шт.

8

260-16512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

16шт.
