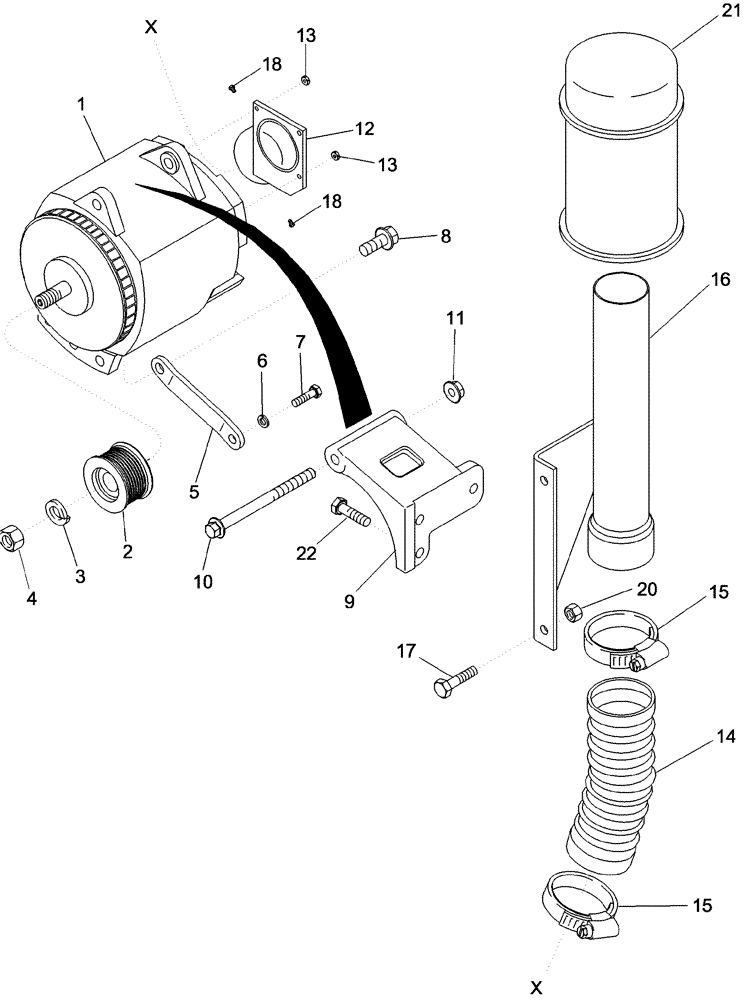

Запчасти Case IH 620 (04-19) - ALTERNATOR MOUNTING AND FILTER (06) - ELECTRICAL SYSTEMS

1

87645142

ALTERNATOR,12V, 185A

12V, 185 amp

1шт.

87645142R

REMAN-ALTERNATOR

620 (9/06-)

1шт.

87645142C

CORE-ALTERNATOR

Return Number

1шт.

2

87452704

PULLEY,70.66mm OD

Alternator

1шт.

3

8094744

WASHER

1шт.

4

8094743

NUT

1шт.

5

J944407

BRACE

Alternator

1шт.

6

892-11010

LOCK WASHER,M10

1шт.

7

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

8

87302717

FLANGE BOLT,Bolt Flange 1/2-13X1-1/4 GR8 ZND

1/2 x 1-1/4; 8

1шт.

9

J944405

SUPPORT

Alternator

1шт.

10

J903105

FLANGE BOLT,Hex, M12 x 1.75 x 150mm, Cl 8.8

12 x 150

1шт.

11

829-2312

FLANGE NUT,M12 x 1.75, Flg, Cl 10

1шт.

12

NSS

NOT SOLD SEPARAT

ELBOW

1шт.

13

NSS

NOT SOLD SEPARAT

NUT

1шт.

14

434708A1

HOSE,63.50 mm ID x 965.00 mm

Cut from Bulk

1шт.

15

214-1540

HOSE CLAMP,#40, 2.06" - 3", Type F Worm, W/ Liner

2шт.

16

1338707C1

SUPPORT

Alternator

1шт.

17

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

18

282-17512

SCREW,Hex Wshr Hd, #10 - 16 x 3/4"

Self Drilling

2шт.

20

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

2шт.

21

353411R92

FILTER ASSY

Alternator Precleaner

1шт.

22

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

3шт.
