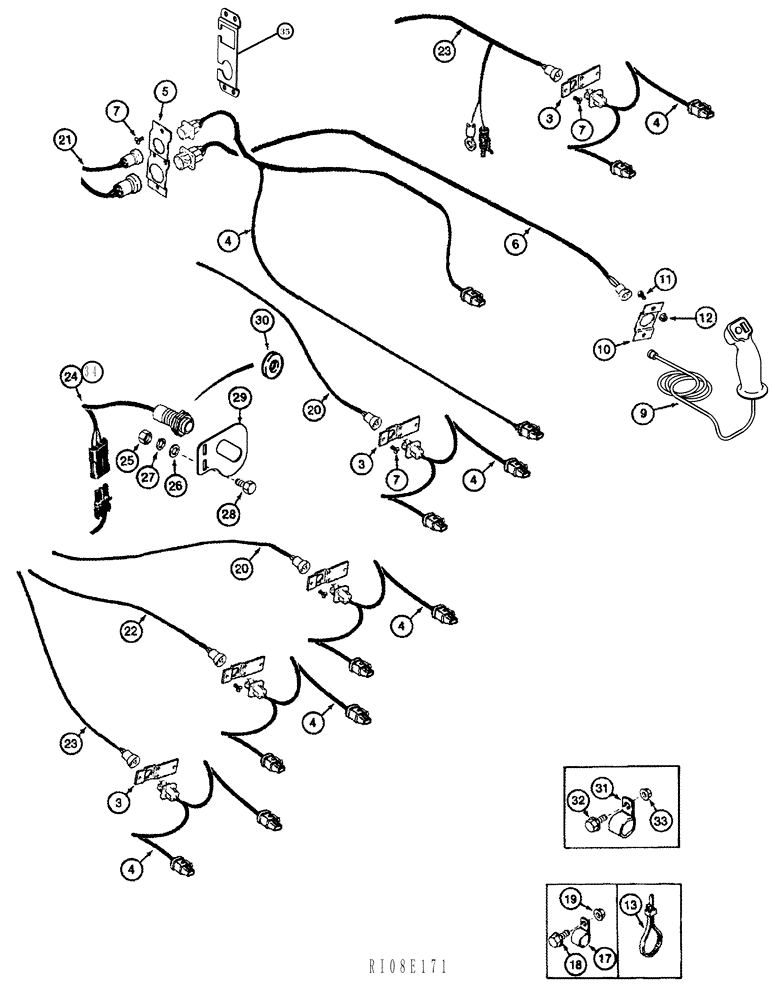

Запчасти Case IH 620 (04-12) - HARNESS, DRUM ROTORS (06) - ELECTRICAL SYSTEMS

3

1988723C1

SUPPORT

Harness Mounting, One Connector, Drum 1, 3, 4, 5, 6

5шт.

4

1983613C2

HARNESS

Drum 1, 2, 3, 4 ,5 ,6

6шт.

5

1988724C1

SUPPORT

Harness Mounting, Two Connector, Drum Number 2

1шт.

6

87454224

HARNESS

Drum With Tether, Drum Number 2

1шт.

7

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

30шт.

9

87408867

SWITCH

Remote Tether, Drum Number 2

1шт.

10

91795C1

SUPPORT

Harness Mounting, One Connector, Drum Number 2

1шт.

11

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

2шт.

12

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

13

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

17

515-23381

CLAMP,1 1/2", Insul, 3/8" Bolt

2шт.

18

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

19a

495-21044

WASHER,3/8"

2шт.

20

336826A1

HARNESS

Extension, Drum 3, 4, Serial Range: -Y8T013501

2шт.

20

87718887

WIRE HARNESS

Extension, Drum, 3, 4, Start Serial: Y8T013501

2шт.

21

336828A1

HARNESS

Extension, Drum Number 2, Serial Range: -Y8T013501

1шт.

21

87718889

WIRE HARNESS

Extension, Drum Number 2, Start Serial: Y8T013501

1шт.

22

336829A1

HARNESS

Extension, Drum Number 5, Serial Range: -Y8T013501

1шт.

22

87718890

WIRE HARNESS

Extension, Drum Number 5, Start Serial: Y8T013501

1шт.

23

336827A1

HARNESS

Extension, Drum 1, 6, Serial Range: -Y8T013501

1шт.

23

87718888

WIRE HARNESS

Extension, Drum 1, 6, Start Serial: Y8T013501

2шт.

24

295528A1

SWITCH

Proximity, Drum Lift (2), Drum Tilt

3шт.

25

425-105

NUT,5/16"-18, G5

4шт.

26

495-81112

WASHER,.344" x 3/4" x .120"

6шт.

27

492-11031

LOCK WASHER,5/16"

6шт.

28

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

29

446277A1

BRACKET

Switch Mounting

3шт.

30

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

4шт.

31

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

Rubber Cushioned

1шт.

32

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

33

231-5146

FLANGE NUT,3/8"-16

1шт.

34

87613234

WASHER,1.28" ID x 1.75" OD x 0.06" Thk

6шт.

35

87482280

BRACKET

Drum, Harness with Tether Inside

1шт.
