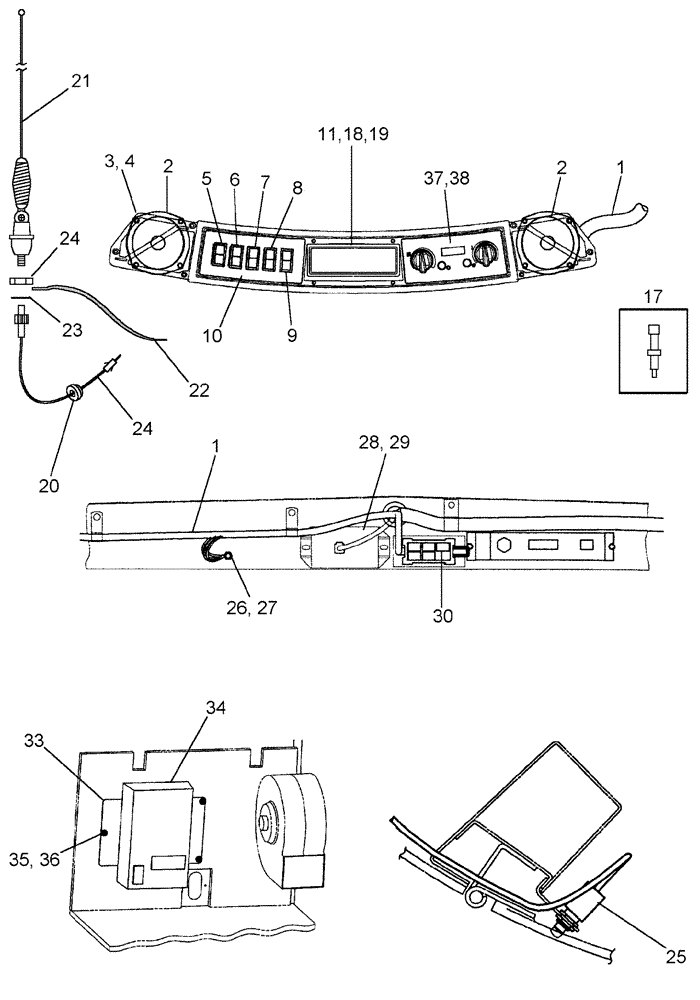

Запчасти Case IH 620 (04-04) - HARNESS, MAIN CAB - OVERHEAD CONTROL PANEL (06) - ELECTRICAL SYSTEMS

1

87589310

WIRE HARNESS

Main Cab

1шт.

Model Year 2008 And Prior

1шт.

1

84156622

WIRE HARNESS

Main Cab

1шт.

Model Year 2009 And After

1шт.

2

375389A1

SPEAKER

5-1/2 Inch

2шт.

3

276-13520

SELF-TAP SCREW,Hex Hd, #10 x 1 1/4"

8шт.

4

231-51409

SERRATED NUT,Flg, USR, #10-24

8шт.

5

141430A1

SWITCH

Emgergency Unload

1шт.

6

279263A1

FLASHER SWITCH

Hazard

1шт.

7

124095A1

LIGHT SWITCH

1шт.

8

144160A1

SWITCH

Drum Lamp

1шт.

9

141488A1

WINDSHIELD WIPER SWI

1шт.

10

87404881

DECAL

Overhead Control Panel, (Not Shown)

1шт.

11

1535219C1

COVER

Without Radio

1шт.

17

113699A1

RECTIFIER

2-5/8 Inch

1шт.

18

ZAEVR50

RADIO

AM-FM Stereo, Order From Ship Direct

1шт.

19

ZAEJHD2000

UNIT

Radio, AM-FM Stereo, With Cassette Tape Player, Order From Ship Direct

1шт.

19

ZAEJHD3000

UNIT

Radio, AM-FM Weatherband With CD, Order From Ship Direct

1шт.

20

R54547

GROMMET

1шт.

21

97080C1

ANTENNA

1шт.

22

278032A1

GROUND STRAP

Antenna

1шт.

23

493-11039

LOCK WASHER,3/8", Int-Ext Tooth

1шт.

24

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

25

1983341C1

SWITCH

Dome Lamp

1шт.

26

893-11008

LOCK WASHER,Ext Tooth, M8

1шт.

27

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

28

86561136

MODULE

Flasher

1шт.

29

435831A1

FASTENER

1 x 12, Velcro, Cut From 121068A1

2шт.

30

87414866

RELAY,12V, 20A

20 amp

5шт.

33

87629635

MOUNTING PLATE

Steering Guidance Controller

1шт.

34

87518209

MODULE

Row Guidance Steering System, If Equipped

1шт.

35

495-11028

WASHER,1/4", SAE

3шт.

36

832-10406

NUT,M6 x 1, Cl 8

3шт.

37

87337658

AIR CONTROL

Airco, Automatic Temperature Control

1шт.

38

87281122

SLEEVE

Control Enclosure

1шт.
