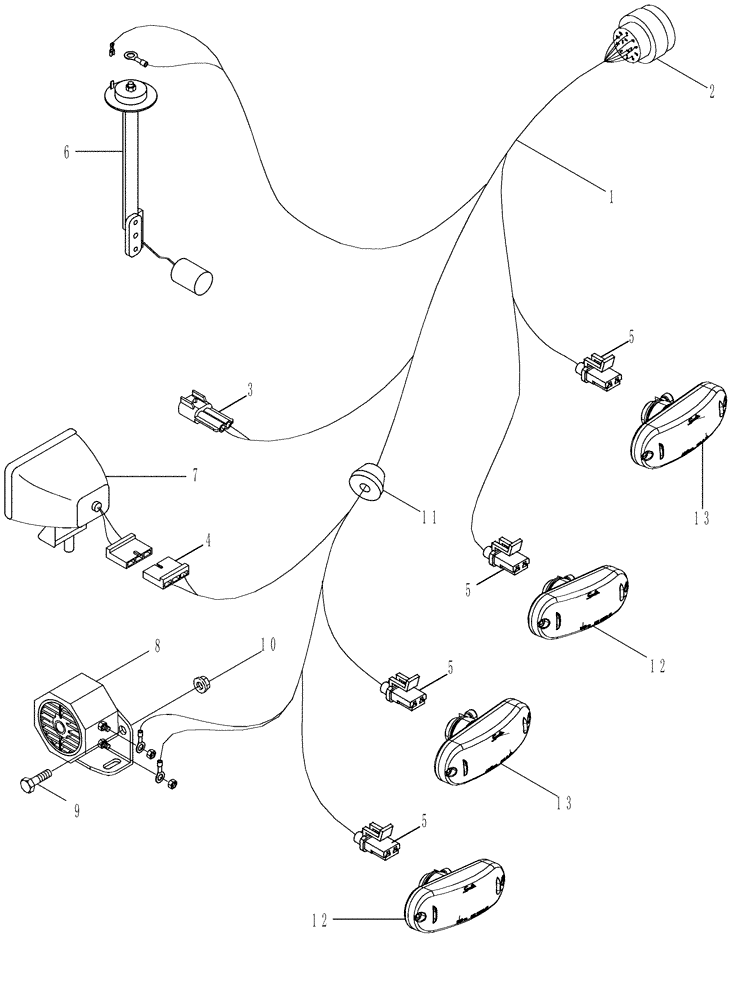

Запчасти Case IH 420 TIER 3 (04-11A) - HARNESS - REAR - MODEL YEAR 2009 AND AFTER (06) - ELECTRICAL SYSTEMS

1

87723602

WIRE HARNESS

1шт.

2

225237C1

ELEC CONNECTOR,Female, 14 Pin

Center-To-Rear Harness

1шт.

3

182068A1

CONNECTOR, ELEC

CONNECTOR Battery Clean Ground

1шт.

4

225152C1

ELEC CONNECTOR

Rear Flood Light

1шт.

5

87688716

ELEC CONNECTOR,Female, 3 Cavities

Warning Lights, Tail Lights

4шт.

6

121810C1

ELECTRICAL GAUGE

Fuel Level

1шт.

7

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Rear, Inc. 14

1шт.

See Figure 04-24

1шт.

8

325258A1

ALARM

Backup Alarm and Basket Lower

1шт.

9

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

2шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

2шт.

12

87627854

LIGHT ASSY.,12V, 27W, Red

Stop And Tail

2шт.

See Figure 04-23A

1шт.

13

87629587

LIGHT ASSY.,12V, 27W, Amber

Rear, Warning

2шт.

See Figure 04-23A

1шт.

14

139119A1

BULB,#886, 12V, 50W

(Not Shown)

1шт.

15

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19 mm) (Not Shown)

13шт.

16

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

(9.5 mm) (Not Shown)

2шт.

17

515-23254

CLAMP,1", Insul, 3/8" Bolt

12 mm (Not Shown)

4шт.

18

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(Not Shown)

9шт.

19

86511924

SCREW,Pan, #10 - 24 x 1 1/4"

(Not Shown)

8шт.
