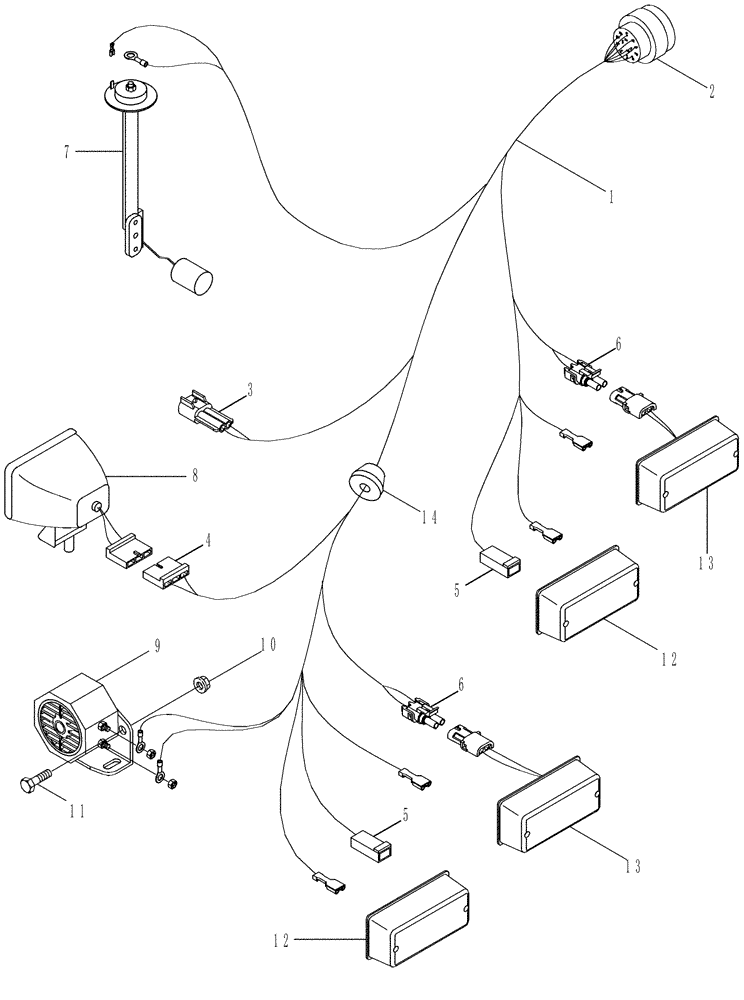

Запчасти Case IH 420 TIER 3 (04-11) - HARNESS - REAR - MODEL YEAR 2008 AND PRIOR (06) - ELECTRICAL SYSTEMS

1

87723602

WIRE HARNESS

Rear Chassis

1шт.

Model Year 2008 And Prior

1шт.

2

225237C1

ELEC CONNECTOR,Female, 14 Pin

Center-To-Rear Harness

1шт.

3

182068A1

CONNECTOR, ELEC

CONNECTOR Battery Clean Ground

1шт.

4

225152C1

ELEC CONNECTOR

Rear Flood Light

1шт.

5

475061C1

CONNECTOR, ELEC

CONNECTOR Warning Lights

2шт.

6

245482C1

ELEC CONNECTOR,2 Pin

Tail Lights

2шт.

7

121810C1

ELECTRICAL GAUGE

Fuel Level

1шт.

8

284718A1

LAMP,Halogen, 12V, 35W, Clear

35W, Rear, Inc. 15

1шт.

See Figure 04-24

1шт.

9

325258A1

ALARM

Backup Alarm and Basket Lower

1шт.

10

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

2шт.

11

477-82508

SERRATED SCREW,Sl Truss Hd, 1/4" - 20 x 1/2"

2шт.

12

92260C1

LAMP,12V, 27W, Red

Stop And Tail

2шт.

See Figure 04-23

1шт.

13

130882C91

LAMP

Rear Warning

2шт.

See Figure 04-23

1шт.

14

198824C1

GROMMET,12.7mm ID x 41.1mm OD x 26.9mm Thk

1/2 ID

2шт.

15

139119A1

BULB,#886, 12V, 50W

(Not Shown)

1шт.

16

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

(19 mm) (Not Shown)

13шт.

17

515-2395

CLAMP,3/8", Insul, 3/8" Bolt

(9.5 mm) (Not Shown)

2шт.

18

515-23254

CLAMP,1", Insul, 3/8" Bolt

12 mm (Not Shown)

4шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

(Not Shown)

9шт.

20

261-54536

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/4"

8шт.
