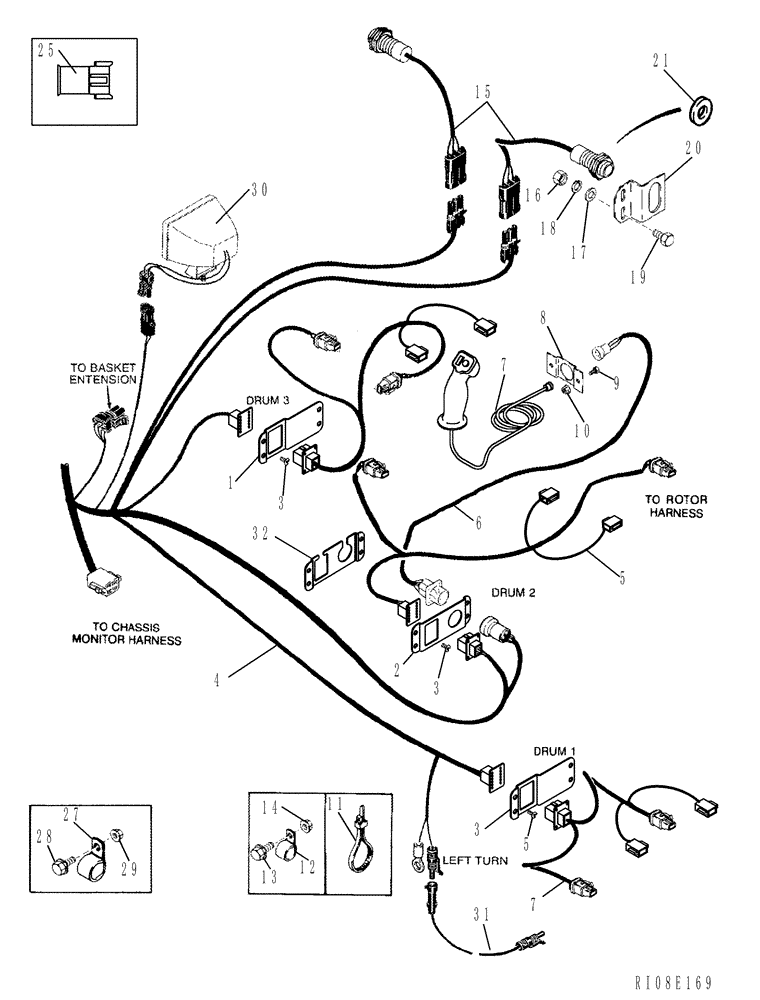

Запчасти Case IH 420 TIER 3 (04-09) - HARNESS, LEFT HAND TOOL BAR - 5 ROW NARROW (06) - ELECTRICAL SYSTEMS

1

87655136

SUPPORT

Harness Mounting, One Connector

4шт.

2

87655137

BRACKET

Mounting, Two Connector

1шт.

3

281-1458

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

5шт.

4

87723601

WIRE HARNESS

Chassis

1шт.

4

84284186

WIRE HARNESS

Chassis, Start Year: 01-JAN-13

1шт.

5

87656160

WIRE HARNESS

Drum

5шт.

6

87454224

HARNESS

Drum Tether

1шт.

7

87408867

SWITCH

Remote Tether

1шт.

8

91795C1

SUPPORT

Harness Mounting, One Connector

1шт.

9

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

2шт.

10

231-51409

SERRATED NUT,Flg, USR, #10-24

2шт.

11

22-824

CABLE TIE,3/16" x 7 1/4"

CABLE STRAP

2шт.

12

515-23254

CLAMP,1", Insul, 3/8" Bolt

2шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

2шт.

14

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

4шт.

111669A1

PACKAGE

Inc. 15 - 24

1шт.

15

1546498C1

SWITCH

Proximity, Drum Lift, Drum Tilt

3шт.

16

425-105

NUT,5/16"-18, G5

6шт.

17

495-11034

WASHER,5/16", SAE

6шт.

18

492-11031

LOCK WASHER,5/16"

6шт.

19

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

20

1546432C1

SUPPORT

Switch Mounting

2шт.

21

495-81202

WASHER,1 9/32" x 1 3/4" x .060"

6шт.

22

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

(Not Shown)

3шт.

23

112291A1

COVER

(Not Shown)

3шт.

24

446277A1

BRACKET

Tiltback, (Not Shown)

1шт.

25

87718865

WIRE HARNESS

Monitor Conversion

1шт.

26

87482280

BRACKET

1шт.

27

515-25317

CLAMP,1 1/4", Insul, 1/2" Bolt

Rubber Cushioned

1шт.

28

409-7616

BOLT,Hex Flg, 3/8" - 16 x 1", Spcl

1шт.

29

231-5146

FLANGE NUT,3/8"-16

1шт.

30

284719A1

LAMP,Halogen, 12V, 50W, Clear

50W, Conveyor

1шт.

See Figure 04-24

1шт.

31

136058A1

HARNESS

Extension, Turn Signal, 5 Row Wide

1шт.

32

87482280

BRACKET

Drum, Harness with Tether Inside

1шт.
